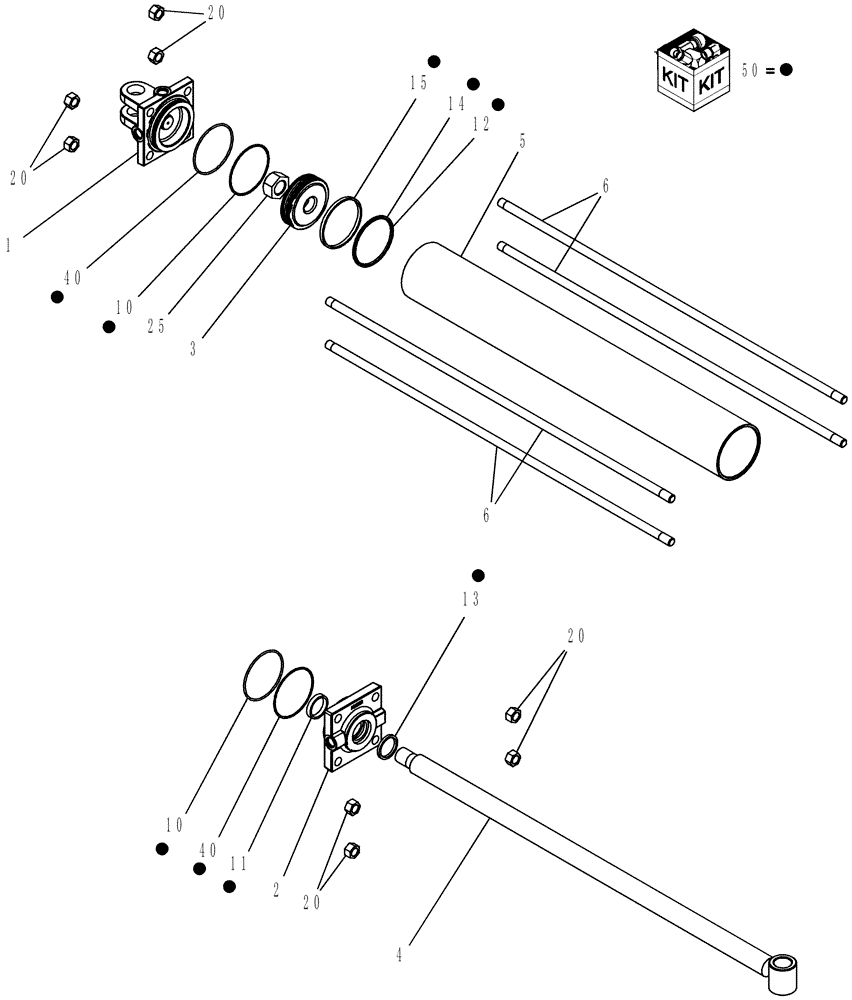

Запчасти Case IH ATX (08-46) - HYDRAULIC WING LIFT CYLINDER, 4 INCH BORE X 30 INCH STROKE, 86991622 AND 87407430 (08) - HYDRAULICS

0

87407430

SEAL KIT

hydraulic cylinder 4" x 30" Monarch, Start Year: 01-NOV-02, Start Serial: CBJ0008108

1шт.

Includes 86991622, 1019844, 218-5106, 350401A1, 1015478 and 6-70060

1шт.

1

87409427

HEAD

cylinder base 4" bore

1шт.

2

87409392

HEAD

cylinder front 4" bore x 1 1/2" rod

1шт.

3

87409466

PISTON

cylinder, 4" bore Monarch #494730

1шт.

4

87409450

PISTON ROD

1 1/2" Nitrosteel

1шт.

5

NSS

NOT SOLD SEPARAT

CYLINDER TUBE

1шт.

6

87409484

BOLT

hydraulic cylinder tie

4шт.

10

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in repair kit 87403962

1шт.

11

NSS

NOT SOLD SEPARAT

U-CUP ROD SEAL

1шт.

Included in repair kit 87403962

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 87403962

1шт.

13

NSS

NOT SOLD SEPARAT

ROD WIPER

1шт.

Included in repair kit 87403962

1шт.

14

NSS

NOT SOLD SEPARAT

PTFE SEAL

1шт.

Included in repair kit 87403962

1шт.

15

NSS

NOT SOLD SEPARAT

WEAR RING

1шт.

Included in repair kit 87403962

1шт.

20

408

NUT,5/8" - 18, Gr 5

8шт.

25

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING BACKUP

2шт.

Included in repair kit 87403962

1шт.

50

87403962

SEAL KIT

hyd cylinder, 4" Monarch with 1 1/2" rod

1шт.

100

1019844

FITTING

steel restrictor 1/2" MJ 1/2" FJ .09" orifice

1шт.

100

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

100

350401A1

DECAL

warning restrictors

1шт.

100

1015478

DECAL

warning do not operate

1шт.

100

6-70060

INSTRUCTION

hydraulic wing lift cylinder kit

1шт.

Not Shown

1шт.
