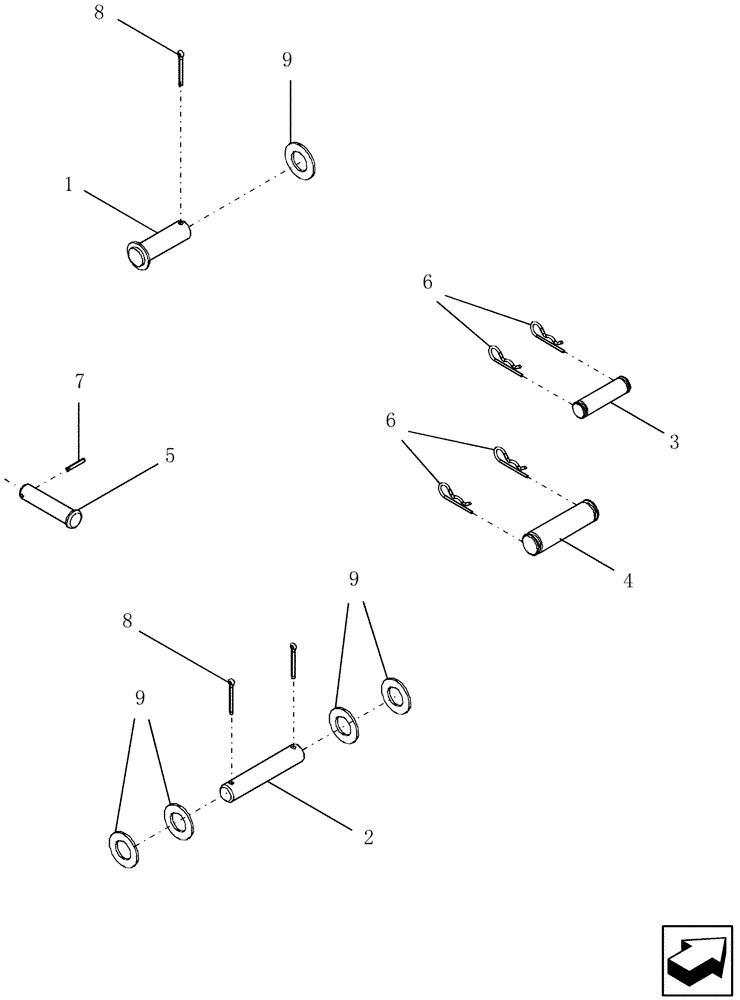

Запчасти Case IH ATX (08-42) - CYLINDER PINS AND KEEPERS (08) - HYDRAULICS

1

1025608

PIN

cylinder link 1-1/4" OD

2шт.

For cylinder links - qty for 1 cylinder link

1шт.

2

1025788

PIN

wing lift 1.25" OD x 6.65" long

1шт.

For cylinder clevis end when attached to slot

1шт.

3

1030839

PIN

cylinder 1-1/4" OD x 3" UL

1шт.

For wing lift cylinders rod end - 4 x 30"

1шт.

4

87403614

HEADED PIN

cylinder 1 1/4" dia 4 ul

1шт.

For wing lift cylinders rod end - 5 x 30"

1шт.

5

87403990

HEADED PIN

1" x 4 1/4"

1шт.

For depth cylinders - qty for 1 cylinder

1шт.

6

350109A1

HAIR PIN COTTER

.177" x 3 1/4"

2шт.

For wing lift cylinders rod end - 4 x 30"

1шт.

For wing lift cylinders rod end - 5 x 30"

1шт.

7

38-11424

LOCK PIN,7/32" x 1 1/2", Slotted

2шт.

For depth cylinders - qty for 1 cylinder

1шт.

8

88182

COTTER PIN,1/4" OD x 2" L

2шт.

For cylinder links - qty for 1 cylinder link

1шт.

For cylinder clevis end when attached to slot

1шт.

9

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

2шт.

For cylinder links - qty for 1 cylinder link

1шт.

9

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

4шт.

For cylinder clevis end when attached to slot

1шт.
