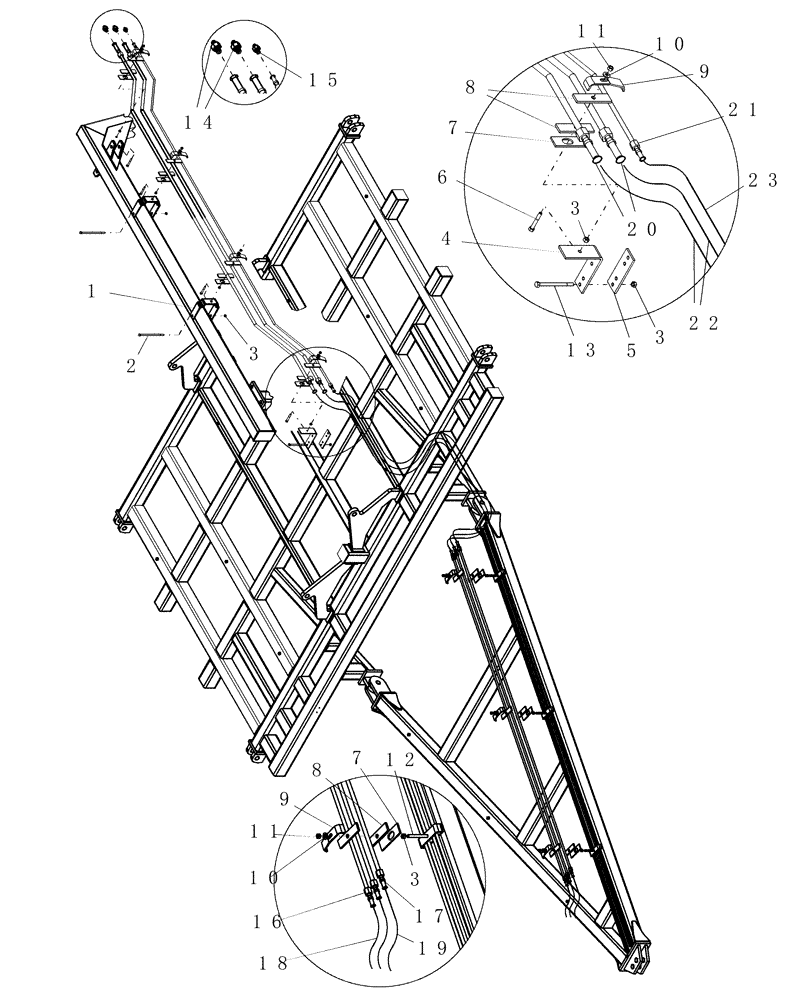

Запчасти Case IH ATX (08-40) - HYDRAULIC TRACTOR TO TANK KITS, ALL CONCORD 3400 DUAL FAN AIR SYSTEMS (08) - HYDRAULICS

0

350179A1

REPAIR KIT

TRACTOR TO CONCORD 3400 DUAL AIR SYSTEM TANK HYDRAULIC, (ALL 3 SECTION AIR TILL DRILLS; 4010 & 4012, 5 SECTION STANDARD AIR TILL DRILLS)

1шт.

0

350180A1

REPAIR KIT

TRACTOR TO CONCORD 3400 DUAL AIR SYSTEM TANK HYDRAULIC, (ALL 5 SECTION AIR TILL DRILLS GREATER THAN 40 FEET)

1шт.

1

1026126

BAR

CLAMP

2шт.

350179A1 kit

1шт.

350180A1 kit

1шт.

2

280284

BOLT,Hex, 3/8" - 16 x 7", Gr 5

2шт.

350179A1 kit

1шт.

350180A1 kit

1шт.

3

9628503

NUT,3/8"-16, G5

11шт.

350179A1 kit

1шт.

3

9628503

NUT,3/8"-16, G5

13шт.

350180A1 kit

1шт.

4

1026124

SUPPORT

bracket l

1шт.

350180A1 kit

1шт.

5

1026123

BAR

bolting

1шт.

6

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

4шт.

7

1026713

CLAMP

backing

7шт.

7

1026713

CLAMP

backing

9шт.

8

1026714

ISOLATOR

neoprene 1/4" tk pln

14шт.

8

1026714

ISOLATOR

neoprene 1/4" tk pln

18шт.

9

1026712

CLAMP

5"

7шт.

9

1026712

CLAMP

5"

9шт.

10

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

7шт.

10

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

9шт.

11

232-1446

NUT,3/8"-16, GC

7шт.

11

232-1446

NUT,3/8"-16, GC

9шт.

12

1026677

STUD

3/8" x 3 1/4" nc gr d zp

3шт.

12

1026677

STUD

3/8" x 3 1/4" nc gr d zp

5шт.

13

280177

BOLT,Hex, 3/8" - 16 x 5", Gr 5

2шт.

14

86512927

HYD CONNECTOR,1-5/16" - 12 JIC x 1" - 11-1/2 NPT

2шт.

15

132341

HYD CONNECTOR,3/4" - 16 JIC x 1/2" - 14 NPT

1шт.

16

350191A1

HYD TUBE,25.4 mm OD, 2743 mm Length

assy 1" x 108" -16 jicfsw

2шт.

17

1026743

HYD TUBE,0.5" Diameter, 108" Length

assy 1/2" x 108"

1шт.

18

350182A1

HOSE ASSY.

1 X 96 -16 JICM/-16 NPTM

2шт.

19

1018133

HYDRAULIC HOSE

3/8" x 96" fl

1шт.

20

350189A1

HYD TUBE

1.00 BENT -16 JIC YZD

2шт.

21

1026112

HYD TUBE,3454 mm Length

ASSY .50

1шт.

22

352000A1

HOSE ASSY.

1 X 90 -16JICM BOTH

2шт.

22

350187A1

HYDRAULIC HOSE

1" x 180" fl

2шт.

23

1026114

HOSE ASSY.

.38 X 090-8JICM BOTH

1шт.

23

1024362

HOSE ASSY.

.38 x 180-8 JICM both (245780A KIT)

1шт.

24

350181A1

PUSH-PULL COUPLING

QUICK CONNECT 16-16 YZD

2шт.

25

218-1027

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

2шт.

26

87301344

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

2шт.

27

351011A1

COUPLING BLOCK

(Not Shown)

2шт.

28

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

2шт.

29

86625061

NUT,1/4"-20, GB

2шт.

30

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

1шт.

31

1015978

DUST CAP

(.50")

1шт.

Not Shown

1шт.

32

1015979

PLUG

DUST FD45 COUPLINGS

1шт.

33

350200A1

PLUG

DUST FD45 COUPLINGS (Not Shown)

1шт.

34

350199A1

CAP

DUST FD45 COUPLINGS (Not Shown)

1шт.
