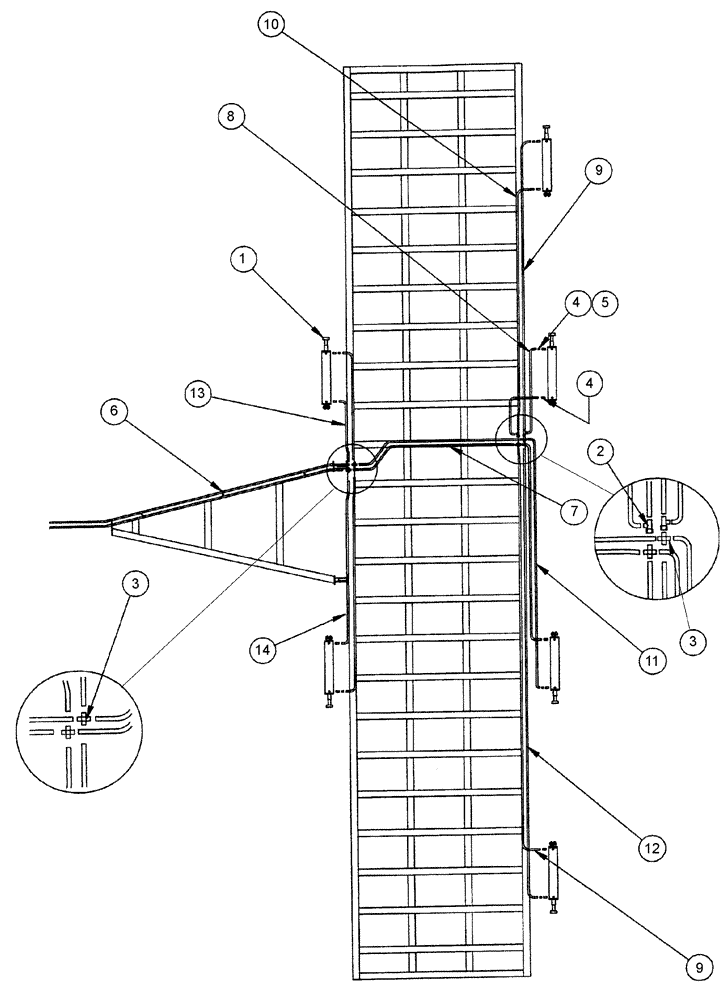

Запчасти Case IH ATX (08-32) - HYDRAULIC WING LIFT SYSTEM, 4010 DRILL - 4 RANK, 5 PLEX (08) - HYDRAULICS

1

350720A1

HYDRAULIC CYLINDER

kit 4" x 30" Iowa, Years: -31-OCT-02, Serial Range: -CBJ0008107

6шт.

Includes 1016796, 1019844, 218-5106, 350401A1, 1015478 and 6-70060

1шт.

1

87407430

SEAL KIT

hydraulic cylinder 4" x 30" Monarch, Start Year: 01-NOV-02, Start Serial: CBJ0008108

6шт.

Includes 86991622, 1019844, 218-5106, 350401A1, 1015478 and 6-70060

1шт.

2

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

3

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

4шт.

4

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

12шт.

5

1019844

FITTING

steel restrictor 1/2" MJ 1/2" FJ .09" orifice

6шт.

6

1015804

HYDRAULIC HOSE

1/2" x 240" fl

2шт.

7

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

2шт.

8

1015802

HYDRAULIC HOSE

1/2" x 50" fl

2шт.

9

1021280

HYDRAULIC HOSE

1/2" x 154" fl

2шт.

10

1015394

HYDRAULIC HOSE

1/2" x 120" fl

1шт.

11

1015222

HYDRAULIC HOSE

1/2" x 90" fl

2шт.

12

1017746

HYDRAULIC HOSE

1/2" x 178" fl

1шт.

13

1015802

HYDRAULIC HOSE

1/2" x 50" fl

2шт.

14

1024421

HYDRAULIC HOSE

1/2" x 60" long

2шт.
