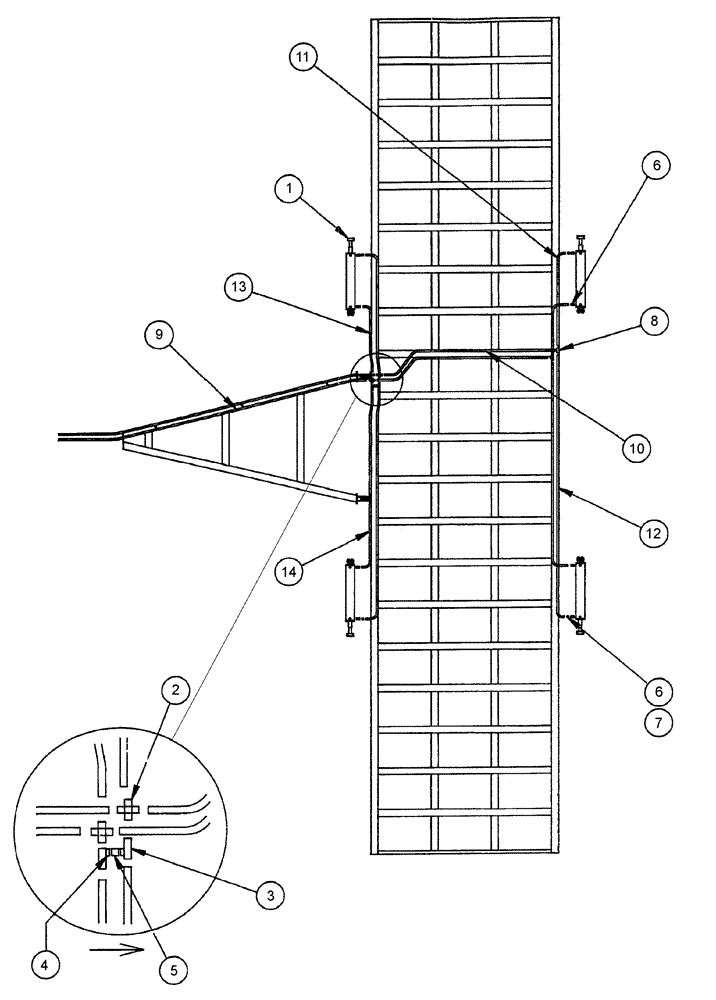

Запчасти Case IH ATX (08-26) - HYDRAULIC WING LIFT SYSTEM, 3612 AND 4012 DRILLS - 4 RANK, 3 PLEX (08) - HYDRAULICS

1

350720A1

HYDRAULIC CYLINDER

kit 4" x 30" Iowa, Years: -31-OCT-02, Serial Range: -CBJ0008107

4шт.

3612 drill - 4 rank, 3 plex

1шт.

Includes 1016796, 1019844, 218-5106, 350401A1, 1015478 and 6-70060

1шт.

1

87407430

SEAL KIT

hydraulic cylinder assembly 4" x 30" Monarch, Start Year: 01-NOV-02, Start Serial: CBJ0008108

4шт.

3612 drill - 4 rank, 3 plex

1шт.

Includes 86991622, 1019844, 218-5106, 350401A1, 1015478 and 6-70060

1шт.

1

350721A1

HYDRAULIC CYLINDER

kit 5" x 30" Iowa, Years: -31-OCT-02, Serial Range: -CBJ0008107

4шт.

4012 drill - 4 rank, 3 plex

1шт.

Includes 1028469, 1019844, 218-5106, 350401A1, 1015478 and 6-70060

1шт.

1

87407431

HYDRAULIC CYLINDER

hyd cylinder 5" x 30" Monarch, Start Year: 01-NOV-02, Start Serial: CBJ0008108

4шт.

4012 drill - 4 rank, 3 plex

1шт.

Includes 86990365, 1019844, 218-5106, 350401A1, 1015478, and 6-70060

1шт.

2

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

2шт.

3

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

4

1026787

ADAPTER

steel 3/8" mp 1/2" fjx

2шт.

5

1014997

FITTING

stl 3/8" mp 3/8" mp check valve

1шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

8шт.

7

1019844

FITTING

steel restrictor 1/2" MJ 1/2" FJ .09" orifice

4шт.

8

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

9

1015804

HYDRAULIC HOSE

1/2" x 240" fl

2шт.

10

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

2шт.

11

1015802

HYDRAULIC HOSE

1/2" x 50" fl

2шт.

12

1015222

HYDRAULIC HOSE

1/2" x 90" fl

2шт.

13

1015802

HYDRAULIC HOSE

1/2" x 50" fl

2шт.

14

1024421

HYDRAULIC HOSE

1/2" x 60" long

2шт.

15

87409045

SEAL KIT

Seal Kit For 87407431

1шт.
