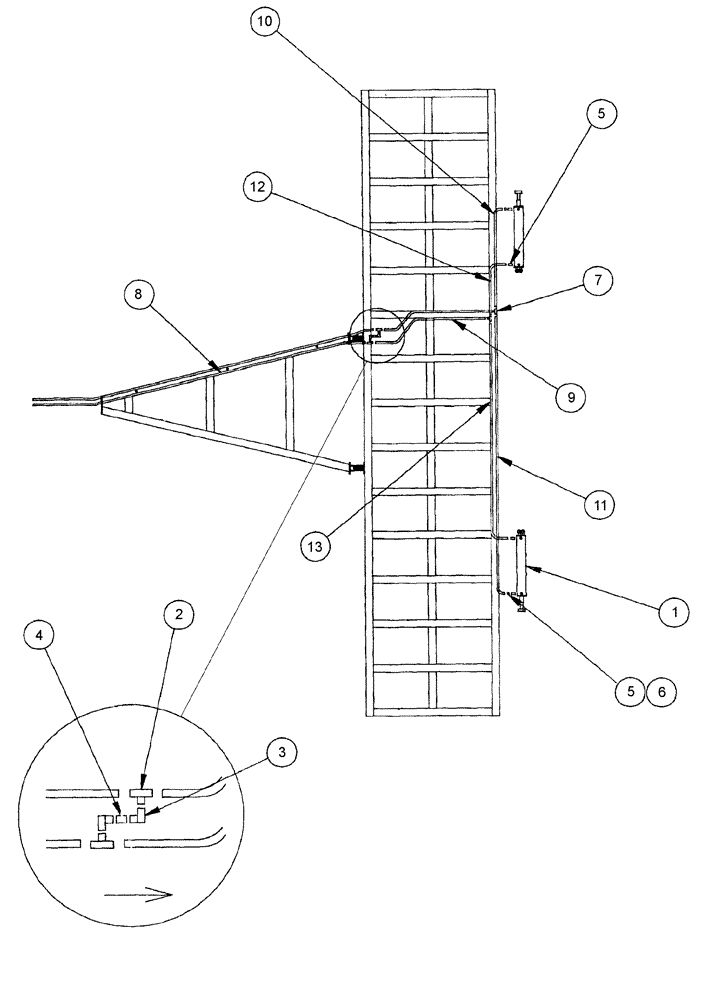

Запчасти Case IH ATX (08-18) - HYDRAULIC WING LIFT SYSTEM, 3212 DRILL - 3 RANK, 3 PLEX (08) - HYDRAULICS

1

350721A1

HYDRAULIC CYLINDER

kit 5" x 30" Iowa, Years: -31-OCT-02, Serial Range: -CBJ0008107

2шт.

Includes 1028469, 1019844, 218-5106, 350401A1, 1015478 and 6-70060

1шт.

1

87407431

HYDRAULIC CYLINDER

hyd cylinder assembly 5" x 30" Monarch, Start Year: 01-NOV-02, Start Serial: CBJ0008108

2шт.

Includes 86990365, 1019844, 218-5106, 350401A1, 1015478, and 6-70060

1шт.

2

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

3

218-997

ELBOW,90 Degree, 3/4"-16 Sw x 3/8" NPT

2шт.

4

1014997

FITTING

stl 3/8" mp 3/8" mp check valve

1шт.

5

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

6

1019844

FITTING

steel restrictor 1/2" MJ 1/2" FJ .09" orifice

2шт.

7

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

8

1015804

HYDRAULIC HOSE

1/2" x 240" fl

2шт.

9

1015802

HYDRAULIC HOSE

1/2" x 50" fl

2шт.

10

1015802

HYDRAULIC HOSE

1/2" x 50" fl

1шт.

11

1015222

HYDRAULIC HOSE

1/2" x 90" fl

1шт.

12

1015802

HYDRAULIC HOSE

1/2" x 50" fl

1шт.

13

1024421

HYDRAULIC HOSE

1/2" x 60" long

1шт.

14

87409045

SEAL KIT

Seal Kit For 87407431

1шт.
