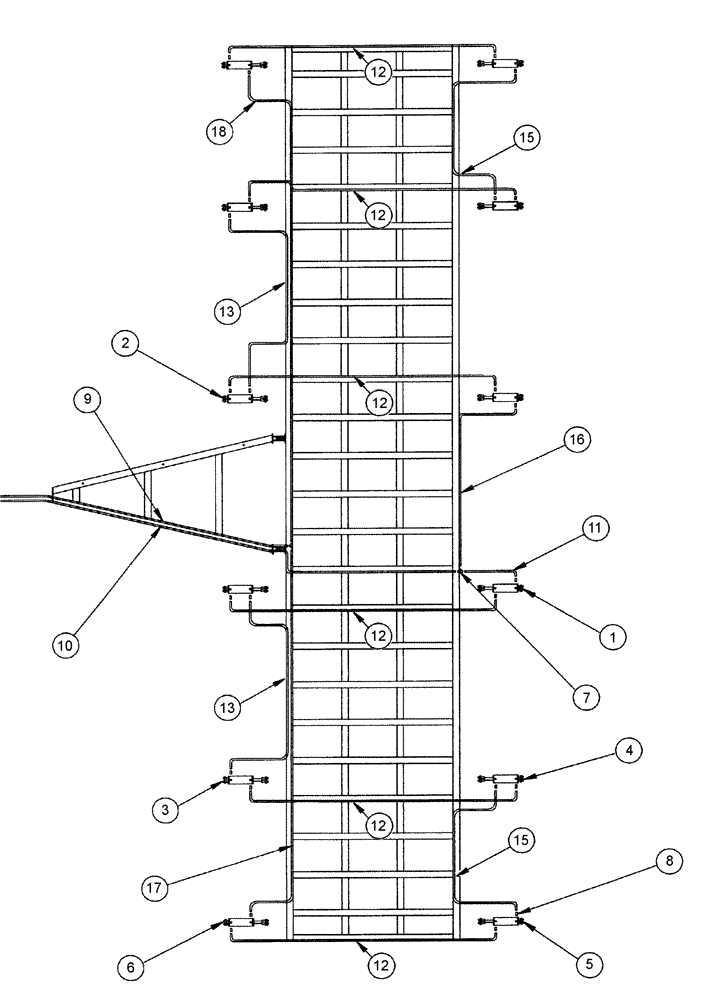

Запчасти Case IH ATX (08-10) - HYDRAULICS DEPTH CONTROL SYSTEM, 4010, 4012 - 4 RANK, 5 PLEX (08) - HYDRAULICS

1

1027480

HYDRAULIC CYLINDER

4 1/2" x 8" Iowa, Years: -31-OCT-02, Serial Range: -CBJ0008107

2шт.

1

86990956

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 203.2mm Stroke

4 1/2" x 8" 3000 psi no pins, Start Year: 01-NOV-02, Start Serial: CBJ0008108

2шт.

2

1027479

HYDRAULIC CYLINDER

4 1/4" x 8" Iowa, Years: -31-OCT-02, Serial Range: -CBJ0008107

2шт.

2

86991980

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 38.1mm Stroke

4 1/4" x 8" 3000 psi no pins, Start Year: 01-NOV-02, Start Serial: CBJ0008108

2шт.

3

1026898

HYDRAULIC CYLINDER

4" x 8" Iowa, Years: -31-OCT-02, Serial Range: -CBJ0008107

2шт.

3

86991979

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

4" x 8" 3000 psi no pins, Start Year: 01-NOV-02, Start Serial: CBJ0008108

2шт.

4

1026897

HYDRAULIC CYLINDER

3 3/4" x 8" Iowa, Years: -31-OCT-02, Serial Range: -CBJ0008107

2шт.

4

86991978

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

3 3/4" x 8" 3000 psi no pins, Start Year: 01-NOV-02, Start Serial: CBJ0008108

2шт.

5

1026896

HYDRAULIC CYLINDER

3 1/2" x 8" Iowa, Years: -31-OCT-02, Serial Range: -CBJ0008107

2шт.

5

86991977

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 1/2" x 8" 3000 psi no pins, Start Year: 01-NOV-02, Start Serial: CBJ0008108

2шт.

6

1026895

HYDRAULIC CYLINDER

3 1/4" x 8" Iowa, Years: -31-OCT-02, Serial Range: -CBJ0008107

2шт.

6

86991976

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 1/4" x 8" 3000 psi no pins, Start Year: 01-NOV-02, Start Serial: CBJ0008108

2шт.

7

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

8

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

24шт.

9

1015804

HYDRAULIC HOSE

1/2" x 240" fl

1шт.

10

1017135

HYDRAULIC HOSE

1/2" x 312" fl

1шт.

11

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

12

1017746

HYDRAULIC HOSE

1/2" x 178" fl

6шт.

13

1020975

HYDRAULIC HOSE

1/2" x 188" fl

2шт.

15

1020975

HYDRAULIC HOSE

1/2" x 188" fl

2шт.

16

1021280

HYDRAULIC HOSE

1/2" x 154" fl

1шт.

4010 drill

1шт.

16

1015396

HYDRAULIC HOSE,12.7mm ID x 3810mm L, SAE 100R17

1/2" 150" fl

1шт.

4012 drill

1шт.

17

1337374C1

HYDRAULIC HOSE

1/2" x 270" fl

1шт.

18

1024977

HYDRAULIC HOSE

1/2" x 336" fl

1шт.
