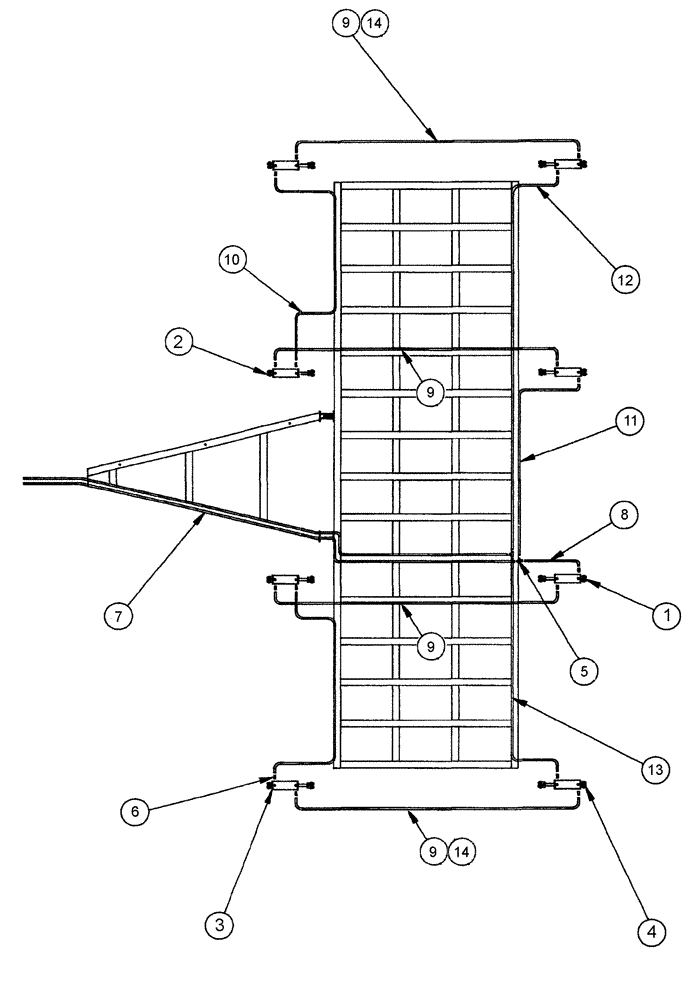

Запчасти Case IH ATX (08-08) - HYDRAULICS DEPTH CONTROL SYSTEM, 3212, 3612, 4012 - 4 RANK, 3 PLEX (08) - HYDRAULICS

1

1026898

HYDRAULIC CYLINDER

4" x 8" Iowa, Years: -31-OCT-02, Serial Range: -CBJ0008107

2шт.

1

86991979

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

4" x 8" 3000 psi no pins, Start Year: 01-NOV-02, Start Serial: CBJ0008108

2шт.

2

1026897

HYDRAULIC CYLINDER

3 3/4" x 8" Iowa, Years: -31-OCT-02, Serial Range: -CBJ0008107

2шт.

2

86991978

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

3 3/4" x 8" 3000 psi no pins, Start Year: 01-NOV-02, Start Serial: CBJ0008108

2шт.

3

1026896

HYDRAULIC CYLINDER

3 1/2" x 8" Iowa, Years: -31-OCT-02, Serial Range: -CBJ0008107

2шт.

3

86991977

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 1/2" x 8" 3000 psi no pins, Start Year: 01-NOV-02, Start Serial: CBJ0008108

2шт.

4

1026895

HYDRAULIC CYLINDER

3 1/4" x 8" Iowa, Years: -31-OCT-02, Serial Range: -CBJ0008107

2шт.

4

86991976

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 1/4" x 8" 3000 psi no pins, Start Year: 01-NOV-02, Start Serial: CBJ0008108

2шт.

5

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

16шт.

7

1017135

HYDRAULIC HOSE

1/2" x 312" fl

2шт.

8

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

9

1017746

HYDRAULIC HOSE

1/2" x 178" fl

4шт.

10

1017100

HYDRAULIC HOSE

1/2" x 204" fl

2шт.

3212 drill

1шт.

10

1017101

HYDRAULIC HOSE

1/2" x 228" fl

2шт.

3612, 4012 drills

1шт.

11

1015396

HYDRAULIC HOSE,12.7mm ID x 3810mm L, SAE 100R17

1/2" 150" fl

1шт.

12

1015220

HYDRAULIC HOSE

1/2" x 240" fl

1шт.

3212 drill

1шт.

12

1337374C1

HYDRAULIC HOSE

1/2" x 270" fl

1шт.

3612, 4012 drills

1шт.

13

1014813

HYDRAULIC HOSE

1/2" x 156" fl

1шт.

3212 drill

1шт.

13

1017746

HYDRAULIC HOSE

1/2" x 178" fl

1шт.

3612, 4012 drills

1шт.
