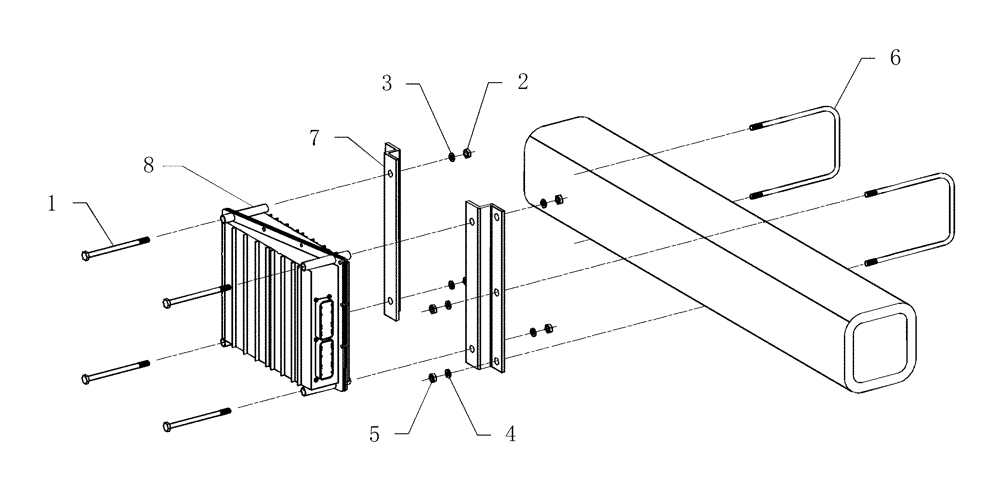

Запчасти Case IH ATX (10-76) - NH3 CONTROLLER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

280492

BOLT,Hex, 1/4" - 20 x 3 1/2", Gr 5

4шт.

2

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

3

80682

LOCK WASHER,1/4"

4шт.

4

80681

LOCK WASHER,5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

4шт.

6

419990A1

U-BOLT

us 5/16" x 4 1/8" w x 4 3/4" d 3/4" thread

2шт.

7

87415392

BRACKET

FlexControl remote mount

2шт.

8

87504885

ECU

nh3 controller

1шт.

100

14324

BRACKET

seed flow unit mounting

1шт.

Includes GM-351 and hardware

1шт.
