Запчасти Case IH ATX (10-70) - EZ FLOW HEADERS - AIR DISTRIBUTION QUICK CONNECT (09) - CHASSIS/ATTACHMENTS

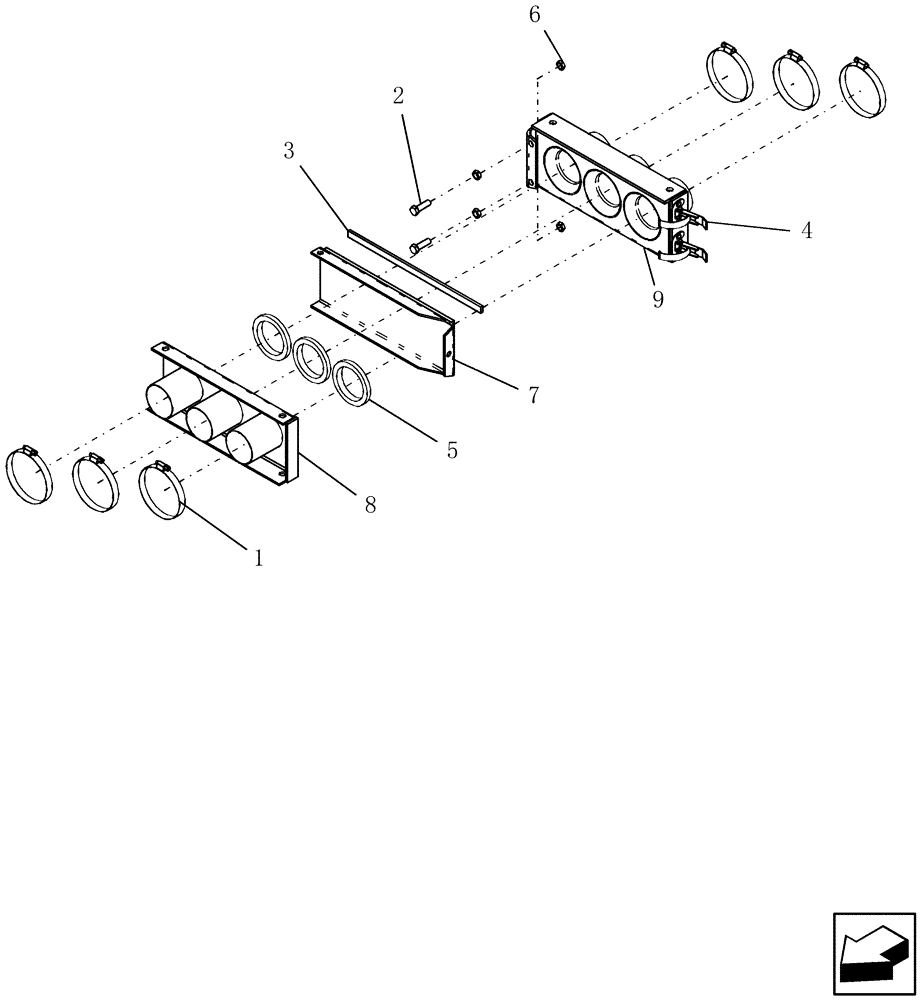

Схема запчастей Case IH ATX - (10-70) - EZ FLOW HEADERS - AIR DISTRIBUTION QUICK CONNECT (09) - CHASSIS/ATTACHMENTS
2
1
3
7
8
5
9
4
6

Артикул

Название

Примечание

Количество

1

214-1444

HOSE CLAMP,58.6mm - 82.5mm

6шт.

2

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

3

425289A1

FOAM

3/16" x 1/2" - closed cell (50' roll)

1шт.

4

5625

LATCH

clamp over center

2шт.

5

6177

OIL SEAL

quick connect 2 1/2" id

3шт.

6

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

7

GD-254

COVER

plate hose connect

1шт.

8

GD-673

FITTING

hose connector 2 1/2"

1шт.

9

GD-672A

HOLDER

quick connect 2 1/2" female

1шт.

Includes two 413-620, four 425-146, two 5625 and four 4630

1шт.

100

86992286

HOSE,2.50" ID x 100.00'

Spiral PVC Black Order Multiples of 100 Feet

1шт.

Выбрано товаров: 11
