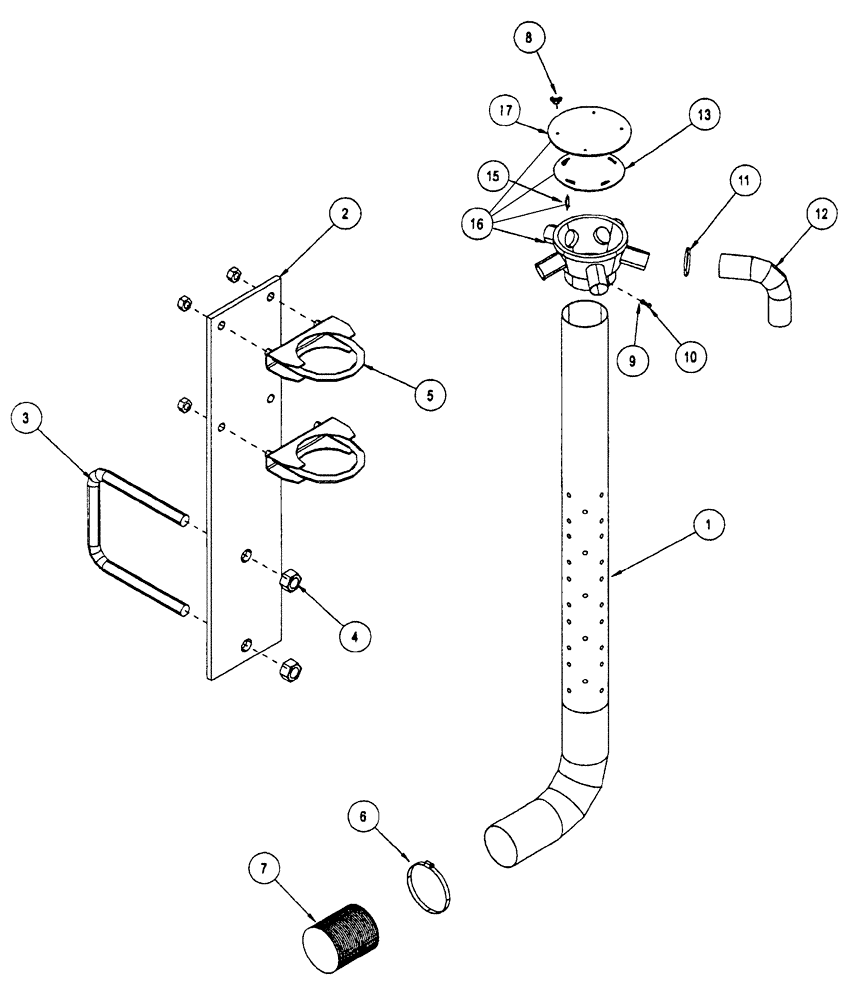

Запчасти Case IH ATX (10-62) - SECONDARY MANIFOLD TUBES AND STAND (09) - CHASSIS/ATTACHMENTS

1

1026067

TUBE,63.5 mm Diameter, 590.55 mm Length

secondary dimpled short

1шт.

2

1026249

LARGE PLATE

PLATE, LARGE MOUNTING, SECONDARY MANIFOLD

1шт.

3

1023564

U-BOLT

us 1/2"-13 4 1/32" w 5" d -G5 1" thread

1шт.

4

87530607

NUT

1/2"-13, GB

2шт.

5

119442H1

CLAMP

DIVIDER EXTENSION

2шт.

5

9628503

NUT,3/8"-16, G5

2шт.

6

214-1444

HOSE CLAMP,58.6mm - 82.5mm

1шт.

7

1032279

HOSE,2.50" ID

PVC Black

1шт.

7

1032336

HOSE,2.50" ID x 600.00"

PVC Black

1шт.

7

86993497

HOSE,2.50" ID

bulk roll

1шт.

8

86627130

WING NUT,1/4"-20

4шт.

Included in kit 350086A1

1шт.

9

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

10

86637935

BOLT,Hex, 1/4" - 20 x 1", Gr 8

2шт.

11

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

11

86536660

HOSE CLAMP,25mm - 44mm

1шт.

11

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

11

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

1шт.

12

86992913

HOSE

1" Polyback 9% EVA, Order in Multiples of 100 Feet

1шт.

1

86993485

HOSE,1.00" ID

Flex Black

1шт.

12

1021832

HOSE,1.25" ID

EVA-B Black-Bulk

1шт.

12

350447A1

HOSE

BULK, PVC, 1.50 ID

1шт.

13

312149A1

CUSHION

gasket, neoprene 7 1/2" od

1шт.

Included in kit 350086A1

1шт.

15

350205A1

SET SCREW

set 1/4"-20 x 1 1/4" Hex socket SS

4шт.

Included in kit 350086A1

1шт.

16

REF

INSTRUCTION

SECONDARY MANIFOLD ASSEMBLY

1шт.

17

REF

INSTRUCTION

COVER - SECONDARY MANIFOLD

1шт.

18

7-91580

HANDBOOK

INSTRUCTION MANIFOLD CUSHION KIT

1шт.

18

350086A1

KIT

MANIFOLD CUSHION SECONDARY

1шт.
