Запчасти Case IH ATX (10-58) - PRIMARY MANIFOLDS AND COVERS, STANDARD BELL - 1, 1-1/4, 1-1/2, 2, 2-1/2 INCH PORTS & MANIFOLD COVERS (09) - CHASSIS/ATTACHMENTS

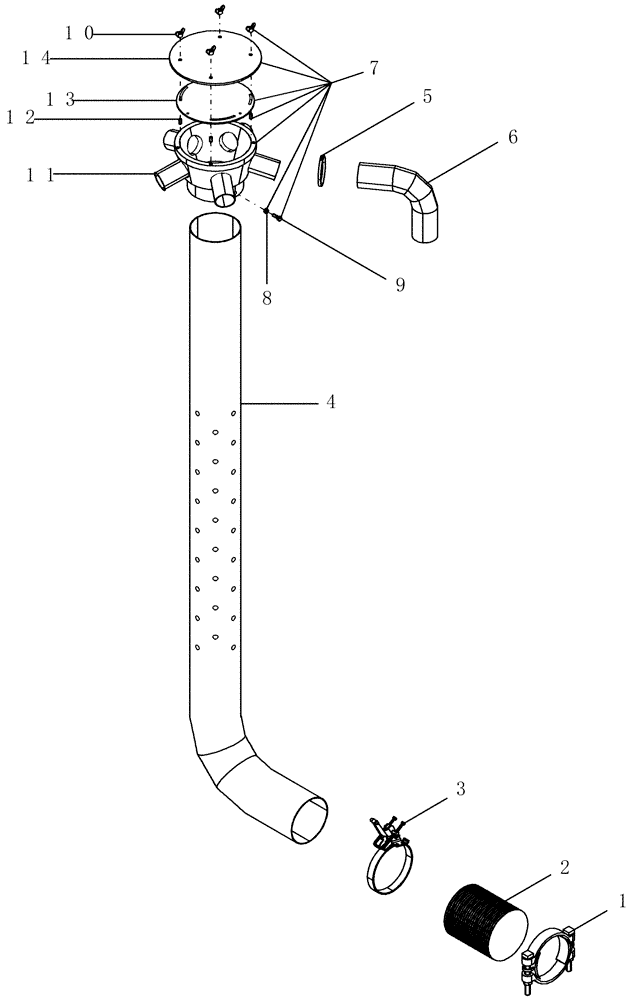

Схема запчастей Case IH ATX - (10-58) - PRIMARY MANIFOLDS AND COVERS, STANDARD BELL - 1, 1-1/4, 1-1/2, 2, 2-1/2 INCH PORTS & MANIFOLD COVERS (09) - CHASSIS/ATTACHMENTS
13
8
11
5
10
4
1
7
9
6
3
2
12
14

Артикул

Название

Примечание

Количество

7

1021287

TUBE ASSY.

PRIMARY 8P 1.00 W/COVER

1шт.

7

1027994

VENT MANIFOLD

PRIMARY 10P 1.00 W/COVER

1шт.

7

1026339

TUBE ASSY.

PRIMARY 13P 1.00 W/COVER

1шт.

7

1026341

TUBE ASSY.

PRIMARY 14P 1.00 W/COVER

1шт.

7

1017915

TUBE ASSY.

PRIMARY 18P 1.00 W/COVER

1шт.

7

1026314

TUBE ASSY.

PRIMARY 12P 1.25 W/COVER

1шт.

7

1026345

TUBE ASSY.

PRIMARY 4P 1.50 W/COVER

1шт.

7

1023632

TUBE ASSY.

PRIMARY 5P 1.50 W/COVER

1шт.

7

1021288

TUBE ASSY.

PRIMARY 6P 1.50 W/COVER

1шт.

7

1015881

MANIFOLD

PRIMARY 8P 1.50 W-COVER

1шт.

7

1025594

MANIFOLD

PRIMARY 9P 1.50 W/COVER

1шт.

7

1030059

MANIFOLD

PRIMARY 10P 1.50 W/COVER

1шт.

7

1030060

VENT MANIFOLD

PRIMARY 5P 2.00 W/COVER

1шт.

7

1023562

TUBE ASSY.

PRIMARY 6P 2.00 W/COVER

1шт.

7

1021303

TUBE ASSY.

PRIMARY 7P 2.00 W/COVER

1шт.

7

1018781

TUBE ASSY.

PRIMARY 8P 2.00 W/COVER

1шт.

7

1025569

TUBE ASSY.

PRIMARY 9P 2.00 W/COVER

1шт.

7

1026351

TUBE ASSY.

PRIMARY 10P 2.00 W/COVER

1шт.

7

1013166

TUBE ASSY.

primary 2 port 2 1/2" with cover

1шт.

7

1013163

TUBE ASSY.

primary 3 port manifold with cover 2 1/2"

1шт.

7

1012427

MANIFOLD

cover primary 4 port 2 1/2"

1шт.

7

1013164

MANIFOLD VALVE

primary 5 port 2 1/2" with cover

1шт.

7

1013165

COVER

6 port manifold

1шт.

7

1023326

COVER

7 PORT MANIFOLD

1шт.

7

290172A1

TUBE ASSY.

PRIMARY 8P 2.50 W/COVER

1шт.

14

1016485

COVER

MANIFOLD PRIMARY (1.00: 8P, 13P, 14P, 18P 2.00: 8P)

1шт.

14

1013190

COVER

MANIFOLD PRIMARY (1.00: 10P, 1.5: 5P, 10P 2.0: 5P, 10P 2.5: 5P)

1шт.

14

1013039

COVER

manifold primary 9" od

1шт.

14

425892A1

CAP COVER

MANIFOLD PRIMARY (1.50: 9P and 2.00: 9P)

1шт.

14

425891A1

CAP COVER

MANIFOLD PRIMARY (2.00: 7P and 2.50: 7P)

1шт.
