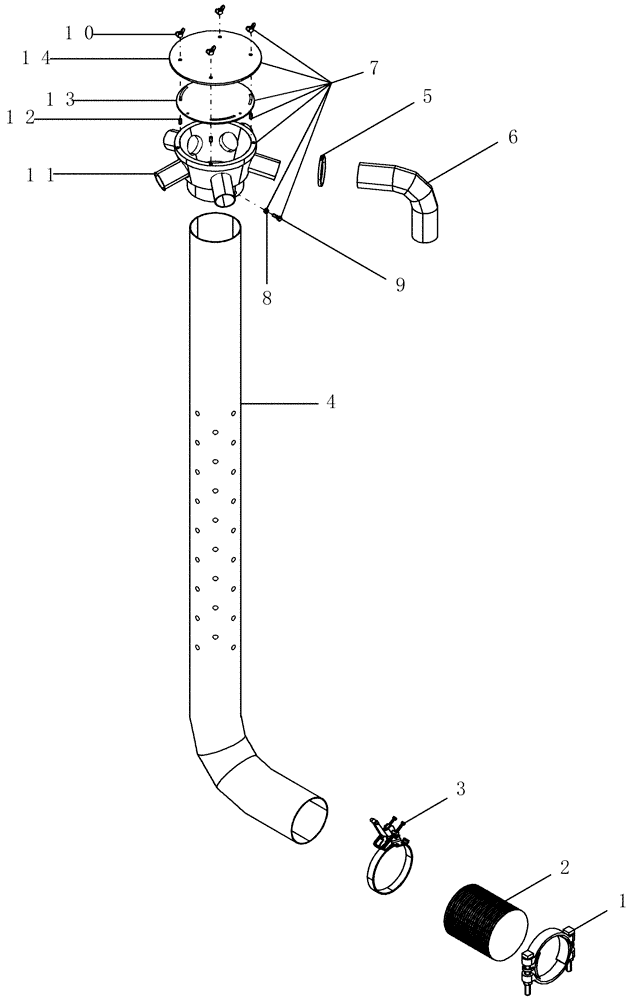

Запчасти Case IH ATX (10-56) - PRIMARY MANIFOLD TUBES AND MANIFOLDS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
1026541
CLAMP,127mm - 146.05mm
hose #600 5" to 5-3/4" bolted
1шт.
2
1027852
HOSE,5.00" ID x 102.00"
PVC, Cut From 1032275 Bulk
1шт.
2
1021326
HOSE,5.00" ID x 150.00"
PVC
1шт.
2
1032275
HOSE,5.00" ID x 336.00"
Black
1шт.
2
1032276
HOSE,5.00" ID x 672.00"
Black
1шт.
2
1032338
HOSE,5.00" ID BULK
X 100 feet Sold by 1 inch - BLACK
1шт.
3
1013259
CLAMP
1шт.
4
1033291
TUBE,127 mm Diameter, 1638.3 mm Length
primary manifold
1шт.
5
86536660
HOSE CLAMP,25mm - 44mm
1шт.
5
513309
HOSE CLAMP,1-1/16” - 2”, Worm Gear
1шт.
5
86050202
HOSE CLAMP,1.59” - 2.5”, Worm Gear
1шт.
5
214-1444
HOSE CLAMP,58.6mm - 82.5mm
1шт.
6
1021832
HOSE,1.25" ID
EVA-B Black-Bulk
1шт.
6
350447A1
HOSE
BULK, PVC, 1.50 ID
1шт.
6
1018883
HOSE,51.20 mm ID x 30480.00 mm
EVA-B 2 ID X100' BLK-BULK
1шт.
6
1032336
HOSE,2.50" ID x 600.00"
PVC Black
1шт.
6
1032279
HOSE,2.50" ID
PVC Black
1шт.
6
86993497
HOSE,2.50" ID
bulk roll
1шт.
7
REF
INSTRUCTION
MANIFOLD ASSEMBLY - PRIMARY (Includes ref #8, 9, 10, 11, 12, 13 and 14)
1шт.
8
425-144
JAM NUT,Jam, 1/4"-20, G5
2шт.
9
86637935
BOLT,Hex, 1/4" - 20 x 1", Gr 8
2шт.
10
86627130
WING NUT,1/4"-20
4шт.
Included in kit 350087A1
1шт.
Included in kit 350088A1
1шт.
11
REF
INSTRUCTION
MANIFOLD - PRIMARY
1шт.
12
350205A1
SET SCREW
set 1/4"-20 x 1 1/4" Hex socket SS
4шт.
Included in kit 350087A1
1шт.
Included in kit 350088A1
1шт.
13
312960A1
CUSHION
gasket neoprene 9" od
1шт.
Included in kit 350087A1
1шт.
13
312961A1
CUSHION
MANIFOLD SUPERBELL
1шт.
Included in kit 350088A1
1шт.
14
REF
INSTRUCTION
COVER - PRIMARY MANIFOLD
1шт.
14
350087A1
SET OF PARTS
MANIFOLD CUSHION PRIMARY
1шт.
14
350088A1
KIT
MANIFOLD CUSHION SUPERBELL
1шт.
15
7-91580
HANDBOOK
INSTRUCTION MANIFOLD CUSHION KIT
1шт.
Выбрано товаров: 39
