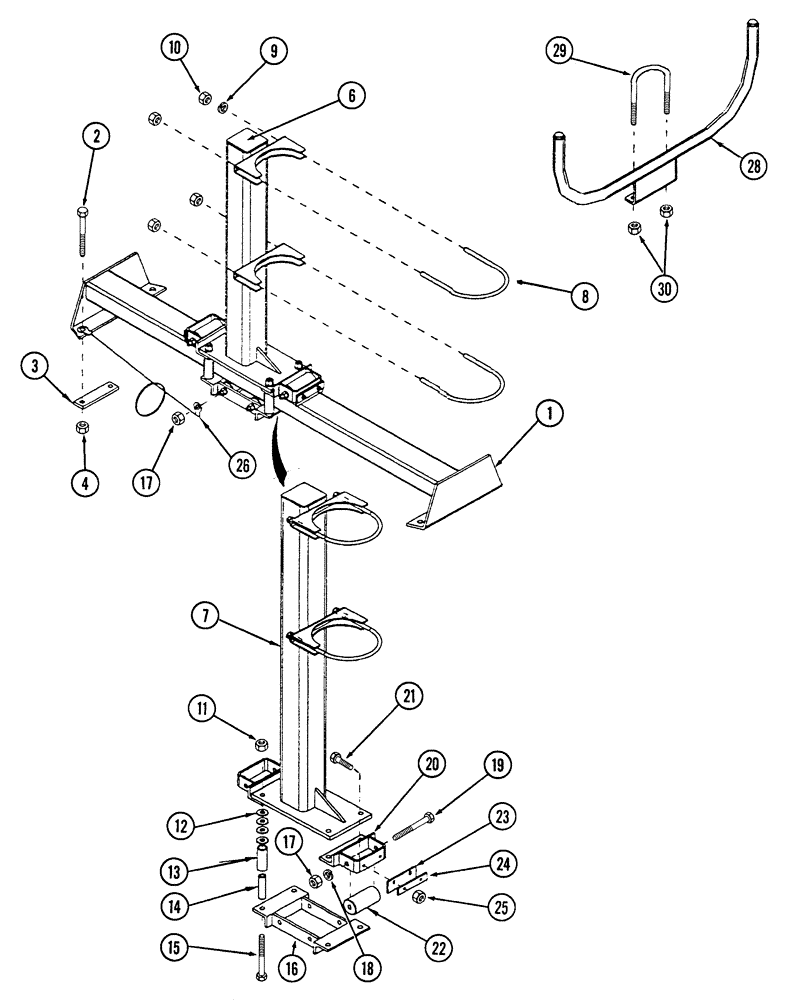

Запчасти Case IH ATX (10-54) - PRIMARY MANIFOLD STAND, REAR TOW - DUAL (09) - CHASSIS/ATTACHMENTS

1

1027631

MOUNTING PARTS

MANIFOLD RAIL, PRIMARY

2шт.

2

86505997

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 5

8шт.

3

1021679

LARGE PLATE

PLATE, LARGE BACKUP

4шт.

4

87530607

NUT

1/2"-13, GB

8шт.

6

290107A1

STAND

manifold primary roller

2шт.

7

290088A1

STAND

MANIFOLD PRIMARY

1шт.

8

1033298

U-BOLT

UR .375 5.188W 7.313D UNC YZD 1.5'' THREAD

2шт.

9

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

10

9628503

NUT,3/8"-16, G5

4шт.

11

231-1446

NUT,3/8" - 16, Gr 5

4шт.

12

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

13

1030354

TUBE,0.645" ID, 0.875" OD

tube

4шт.

14

1030355

SPACER

tube

4шт.

15

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

4шт.

16

1030361

MOUNTING PARTS

lower

1шт.

17

9628503

NUT,3/8"-16, G5

4шт.

18

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

19

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

4шт.

20

1030360

MOUNTING PARTS

upper

2шт.

21

86625179

SCREW,Hex, #10 - 24 x 3/4"

4шт.

22

1030356

ROLLER

Nylatron

4шт.

23

1030386

WIPER

RUBBER

2шт.

24

1030385

BAR

back

2шт.

25

1026591

LOCK NUT

HEX, No. 10 NC

4шт.

26

1030788

CABLE

GROUND

2шт.

28

1027765

CRADLE

1шт.

29

1027764

U-BOLT

1/2 X 4-3/4 X 7-1/4 inch GR5

2шт.

30

87530607

NUT

1/2"-13, GB

2шт.
