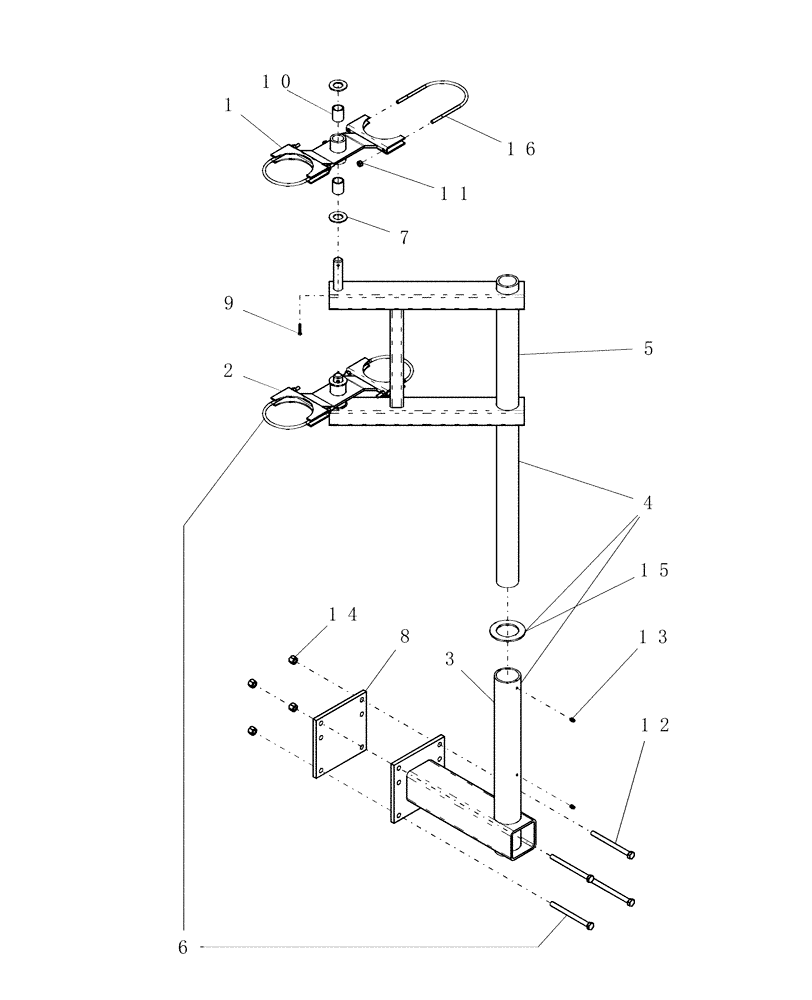

Запчасти Case IH ATX (10-50) - CONCORD AIR SYSTEM - DUAL PRIMARY MANIFOLD STAND (09) - CHASSIS/ATTACHMENTS

1

350859A1

MOUNTING PARTS

DUAL MANIFOLD PIVOT

2шт.

2

350867A1

PIVOT

dual primary manifold

2шт.

Includes two of Ref. 7, four of 10, eight of 11 and four of 16

1шт.

3

351350A1

SUPPORT ASSY.

STAND, PRIMARY MAINFOLD

1шт.

4

351353A1

STAND

ASSY., PRIMARY MANIFOLD

1шт.

Includes Refs. 3, 5, four of 7, 8, two of 9, four of 12, two of 13, four of 14, 15

1шт.

5

350854A1

ARM ASSY.

PRIMARY MANIFOLD STAND

1шт.

6

351412A1

PACKAGE

KIT, STAND PRIMARY MANIFOLD DUAL

1шт.

Includes parts on this page

1шт.

7

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

8

350856A1

PLATE

BOLTING

1шт.

9

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

10

306246A2

BUSHING

polylube 1 1/4" od 1" id 1 1/2" lg, fibre

4шт.

11

9628503

NUT,3/8"-16, G5

8шт.

12

86000020

BOLT,Hex, 1/2" - 13 x 6", Gr 5

4шт.

13

88775

LUBE NIPPLE,1/4"-28

2шт.

14

87530607

NUT

1/2"-13, GB

4шт.

15

1014154

THRUST WASHER

2.5 ID 4OD .188 YZD

1шт.

16

1033298

U-BOLT

UR .375 5.188W 7.313D UNC YZD 1.5'' THREAD

4шт.

100

6-10740

INSTRUCTION

PIVOTING MANIFOLD

1шт.
