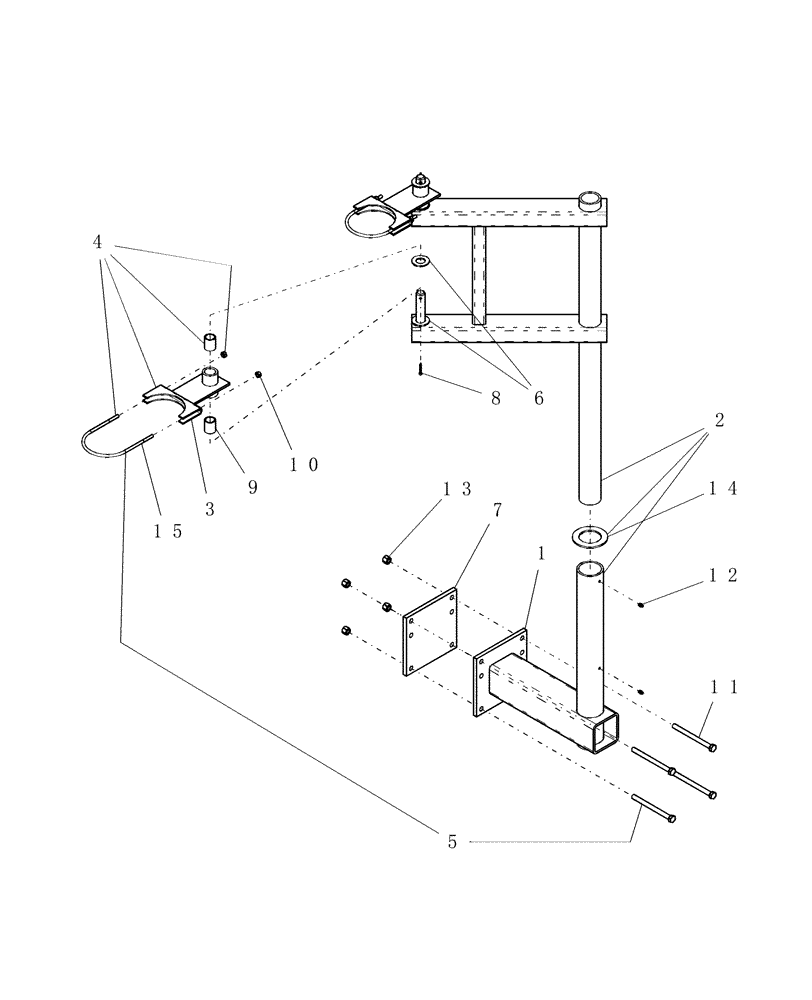

Запчасти Case IH ATX (10-48) - CONCORD AIR SYSTEM - SINGLE PRIMARY MANIFOLD STAND (09) - CHASSIS/ATTACHMENTS

1

351350A1

SUPPORT ASSY.

STAND, PRIMARY MAINFOLD

1шт.

2

351353A1

STAND

ASSY., PRIMARY MANIFOLD

1шт.

Includes Refs. 1, four of 6, 7, two of 8, four of 11, two of 12, four of 13 and 14

1шт.

3

350869A1

MOUNTING PARTS

single primary manifold

2шт.

4

350870A1

PIVOT

single primary manifold

2шт.

Includes Refs. 3, four of 9, four of 10 and two of 15

1шт.

5

351414A1

PACKAGE

STAND SINGLE PRIMARY MANIFOLD ATD

1шт.

Includes parts on this page

1шт.

6

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

7

350856A1

PLATE

BOLTING

1шт.

8

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

9

306246A2

BUSHING

polylube 1 1/4" od 1" id 1 1/2" lg, fibre

4шт.

10

9628503

NUT,3/8"-16, G5

4шт.

11

86000020

BOLT,Hex, 1/2" - 13 x 6", Gr 5

4шт.

12

88775

LUBE NIPPLE,1/4"-28

2шт.

13

87530607

NUT

1/2"-13, GB

4шт.

14

1014154

THRUST WASHER

2.5 ID 4OD .188 YZD

1шт.

15

1033298

U-BOLT

UR .375 5.188W 7.313D UNC YZD 1.5'' THREAD

2шт.

100

6-10740

INSTRUCTION

PIVOTING MANIFOLD

1шт.
