(10-46) - PRIMARY MANIFOLD STAND, FRONT TOW (TOW BETWEEN)

Запчасти Case IH ATX (10-46) - PRIMARY MANIFOLD STAND, FRONT TOW (TOW BETWEEN) (09) - CHASSIS/ATTACHMENTS

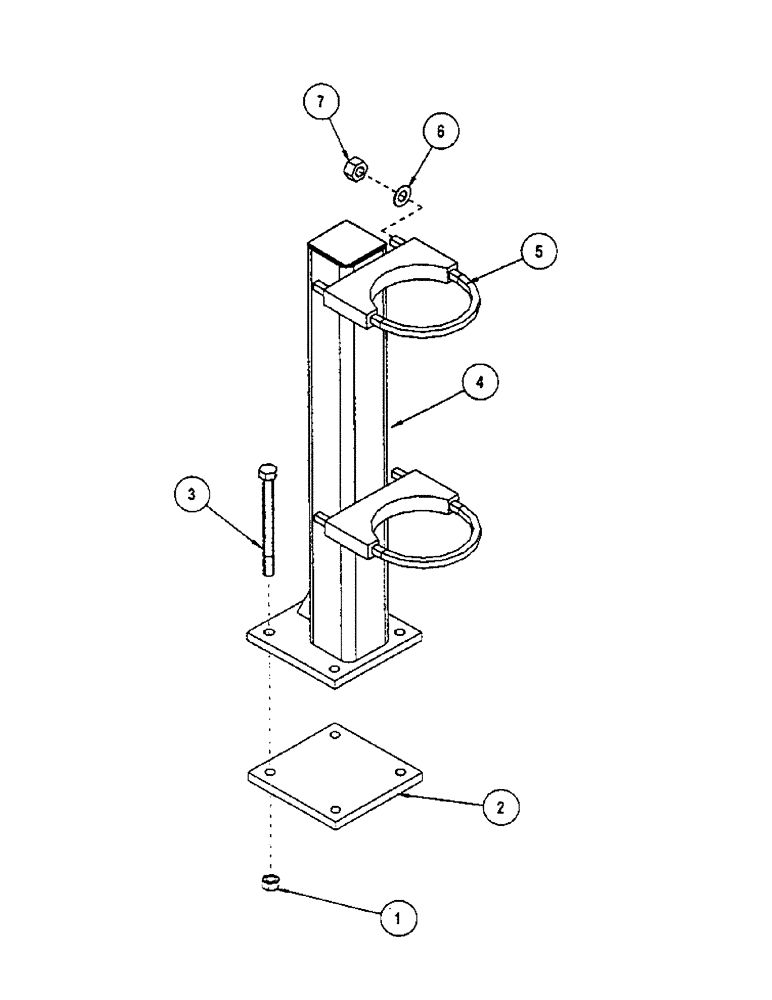

Схема запчастей Case IH ATX - (10-46) - PRIMARY MANIFOLD STAND, FRONT TOW (TOW BETWEEN) (09) - CHASSIS/ATTACHMENTS
7
1
6
2
4
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87530607

NUT

1/2"-13, GB

4шт.

2

1026854

LARGE PLATE

PLATE, LARGE BOLTING

1шт.

3

280831

BOLT,Hex, 1/2" - 13 x 8", Gr 5

4шт.

4

290087A1

MANIFOLD

PRIMARY

1шт.

5

1033298

U-BOLT

UR .375 5.188W 7.313D UNC YZD 1.5'' THREAD

2шт.

6

9628503

NUT,3/8"-16, G5

4шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

Выбрано товаров: 7
