Запчасти Case IH ATX (10-44) - THREE BAR HARROW (09) - CHASSIS/ATTACHMENTS

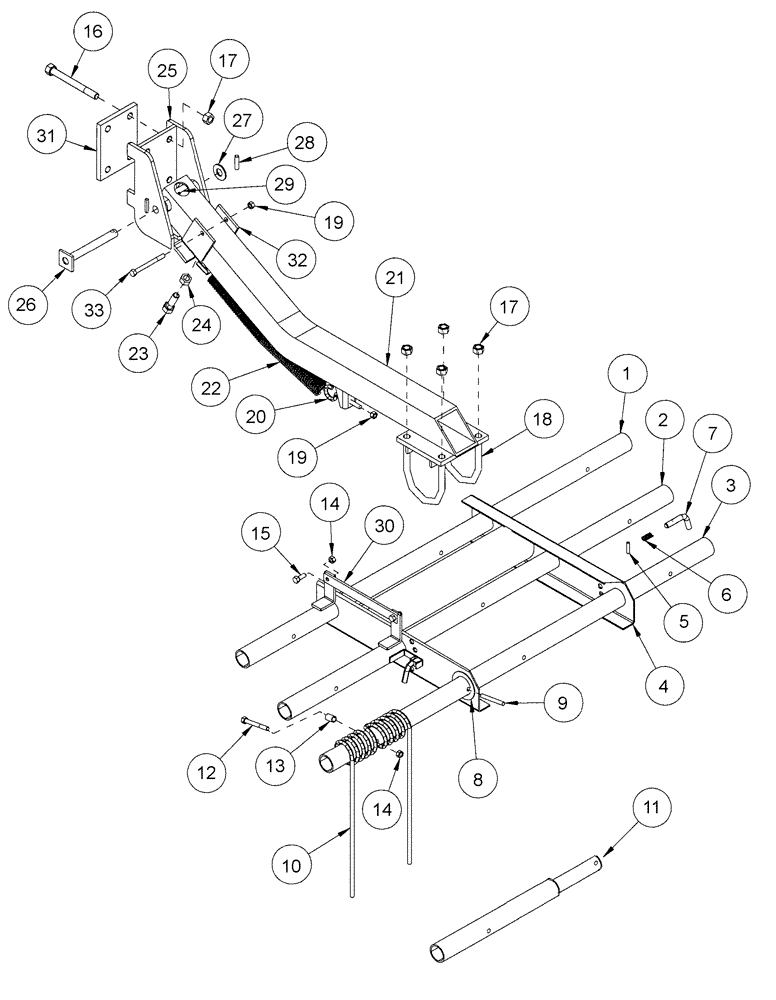

Схема запчастей Case IH ATX - (10-44) - THREE BAR HARROW (09) - CHASSIS/ATTACHMENTS
13
5
18
19
7
3
9
23
11
22
24
28
4
33
25
8
19
26
31
6
10
12
1
14
30
17
29
16
17
15
14
2
20
27
21
32

Артикул

Название

Примечание

Количество

0

PL1951

EXTENSION

OPTION 3-BAR HARROW

1шт.

0

1030841

ARM

harrow

1шт.

0

1030842

ATTACHMENT

harrow assembly 5'

1шт.

0

1030843

ATTACHMENT

harrow assembly 6-1/2'

1шт.

1

1023992

PIPE

harrow 6-1/2' rank 1

1шт.

Included in 1030843

1шт.

1

1023991

PIPE

harrow 5' rank 1

1шт.

Included in 1030842

1шт.

2

1023995

PIPE

harrow 6-1/2' rank 2

1шт.

Included in 1030843

1шт.

2

1023994

PIPE

harrow 5' rank 2

1шт.

Included in 1030842

1шт.

3

1023993

PIPE

harrow 6-1/2' rank 3

1шт.

Included in 1030843

1шт.

3

1023990

PIPE

harrow 5' rank 3

1шт.

Included in 1030842

1шт.

4

1023987

FRAME

harrow 6-1/2'

1шт.

Included in 1030843

1шт.

4

1023988

FRAME

harrow 5'

1шт.

Included in 1030842

1шт.

5

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

Included in 1030843

1шт.

Included in 1030842

1шт.

6

1023970

SPRING

compression .072" wire .72" OD 1.25" long

2шт.

Included in 1030843

1шт.

Included in 1030842

1шт.

7

1023968

PIN

1/2" OD bent handle

2шт.

Included in 1030843

1шт.

Included in 1030842

1шт.

8

1024746

WASHER

2" ID 3" OD 14 gauge

3шт.

Included in 1030843

1шт.

Included in 1030842

1шт.

9

438-32448

PIN,3/8" x 3", Coiled

3шт.

Included in 1030843

1шт.

Included in 1030842

1шт.

10

1023949

TINE

straight 3/8" wire 16" long 9" wide

1шт.

Included in PL1951

1шт.

Included in 1030843

1шт.

Included in 1030842

1шт.

11

1024817

PIPE ASSY.

HARROW EXTENSION

1шт.

Included in PL1951

1шт.

12

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

Included in PL1951

1шт.

Included in 1030843

1шт.

Included in 1030842

1шт.

13

1023375

SPACER

.63" OD 1/2" ID .88" long

1шт.

Included in PL1951

1шт.

Included in 1030843

1шт.

Included in 1030842

1шт.

14

232-1446

NUT,3/8"-16, GC

1шт.

Included in PL1951

1шт.

Included in 1030843

1шт.

Included in 1030842

1шт.

15

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

Included in 1030843

1шт.

Included in 1030842

1шт.

16

88264

BOLT,Hex, 5/8" - 11 x 6", Gr 5

4шт.

17

86639566

NUT,5/8"-11, GB

8шт.

18

1023756

U-BOLT

UR .625 4.125W 5.5D UNC YZD 2'' THREAD

2шт.

19

9628503

NUT,3/8"-16, G5

2шт.

Included in 1030841

1шт.

20

1023962

BOLT

BOLT, EYE 3/8" x 5" -G5 3" lg thread, 1" eyelet

1шт.

Included in 1030841

1шт.

21

1023989

ARM

harrow

1шт.

Included in 1030841

1шт.

22

1023749

SPRING

extension .219" wire 1.31" OD 16.38" long

1шт.

Included in 1030841

1шт.

23

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

Included in 1030841

1шт.

24

86632556

JAM NUT,Jam, 5/8"-11, G5

2шт.

Included in 1030841

1шт.

25

1023985

MOUNTING PARTS

harrow

1шт.

Included in 1030841

1шт.

26

1023986

PIVOT PIN

pivot 3/4" OD

1шт.

Included in 1030841

1шт.

27

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

Included in 1030841

1шт.

28

0100344

SPLIT PIN/SAFETY PIN

3/8"-24 x 1 1/2" hvy

1шт.

Included in 1030841

1шт.

29

87414

LUBE NIPPLE,1/4" - 28

1шт.

Included in 1030841

1шт.

30

1023964

BAR

link 1/4" tk x 1" x 10" c/w holes

1шт.

Included in 1030843

1шт.

Included in 1030842

1шт.

31

1025975

LARGE PLATE

PLATE, LARGE bolting 5" x 6-1/2" x 1/2" thick

1шт.

32

1026746

BAR

protector

1шт.

Included in 1030841

1шт.

33

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

1шт.

Included in 1030841

1шт.

Выбрано товаров: 89
