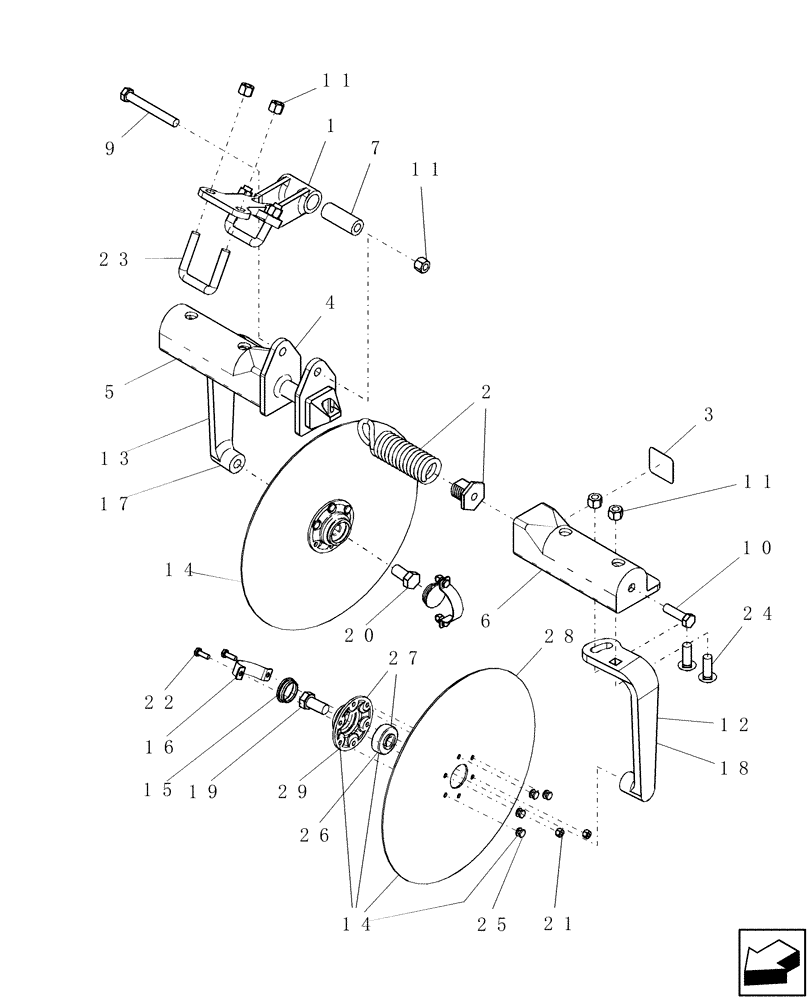

Запчасти Case IH ATX (10-42) - DISC LEVELERS (09) - CHASSIS/ATTACHMENTS

0

239584A

DISC

levelers, dual arm

1шт.

1

1032185

PIVOT

mount

1шт.

Included in 239584A

1шт.

Included in 239583A

1шт.

Included in 239582A

1шт.

2

312800A1

SPRING

extension

2шт.

Included in 239584A

1шт.

Included in 239583A

1шт.

Included in 239582A

1шт.

3

1030543

DECAL

caution pinch point

2шт.

Included in 239584A

1шт.

Included in 239583A

1шт.

Included in 239582A

1шт.

4

1030845

ARM

casting carrier

1шт.

Included in 239584A

1шт.

Included in 239583A

1шт.

Included in 239582A

1шт.

5

1030456

ARM

cast mount LH

1шт.

Included in 239584A

1шт.

Included in 239582A

1шт.

6

1030455

ARM

cast mount RH

1шт.

Included in 239584A

1шт.

Included in 239583A

1шт.

7

1029571

BUSHING,13.59mm ID x 25.53mm OD x 65.48mm L

pivot mount

1шт.

Included in 239584A

1шт.

Included in 239583A

1шт.

Included in 239582A

1шт.

8

1017731

LOCTITE

#242 (Not shown)

1шт.

Item #8- 1017731 locktite #242-- is to be used on items #19, 20 and #10 bolts-- not on the bushing or mount.

1шт.

9

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

Included in 239584A

1шт.

Included in 239583A

1шт.

Included in 239582A

1шт.

10

113-374

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5, Full Thd

2шт.

11

86992215

LOCK NUT,1/2"-13, GC

9шт.

Included in 239584A

1шт.

Included in 239583A

1шт.

Included in 239582A

1шт.

12

1030419

ARM

with disc LH

1шт.

Included in 239584A

1шт.

Included in 239583A

1шт.

Includes Refs. 14 - 16, 18, 19, 21 - 22

1шт.

13

1030420

ARM

with disc RH

1шт.

Included in 239584A

1шт.

Included in 239582A

1шт.

Includes Refs. 14 - 17, 20 - 22

1шт.

14

1030418

BEARING ASSY

& bearing assembly

2шт.

Includes Refs. 25, 26, 28, 29

1шт.

15

1030414

DUST CAP

2шт.

16

1029687

RETAINER

cap

2шт.

17

1029681

ARM

RH

1шт.

18

1029680

ARM

LH

1шт.

19

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

1шт.

20

113-2664

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

21

280129

NUT,1/4"-20

4шт.

22

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

23

1029579

U-BOLT

us 1/2"-13 2 1/16" w 3" d, G5, 1" Thread

2шт.

Included in 239584A

1шт.

Included in 239583A

1шт.

Included in 239582A

1шт.

24

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

Included in 239584A

1шт.

Included in 239583A

1шт.

Included in 239582A

1шт.

25

86624111

RIVET,6.35mm OD x 14.29mm L

8шт.

26

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball 1.78 x .73 x .62 id

2шт.

26

1268017C91GV

BEARING

Value, Ball Bearing

2шт.

27

1030415

FLANGED BEARING

Bearing

2шт.

Includes Refs. 26 and 29

1шт.

28

1029653

DISC

14" Hardened

2шт.

29

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

bearing retainer

2шт.
