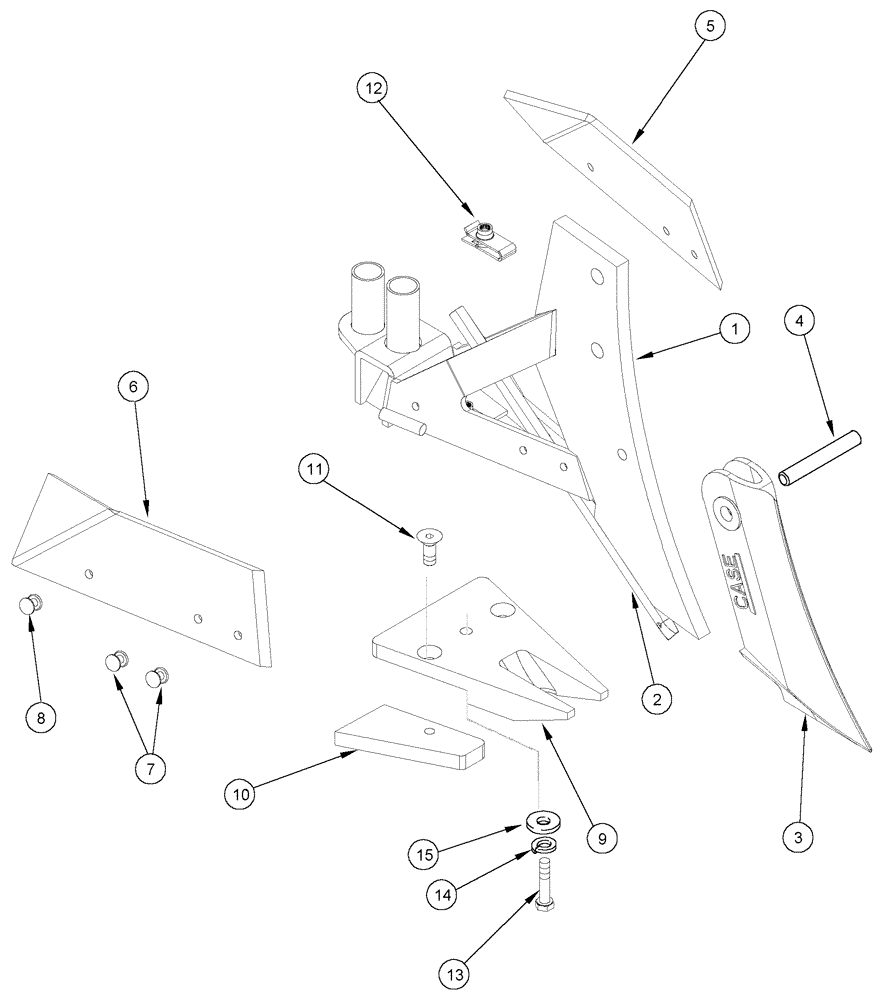

Запчасти Case IH ATX (10-40) - EDGE-ON PRECISION PLACEMENT OPENER (PPX), TRIPLE SHOOT 12 INCH LIQUID FERTILIZER (09) - CHASSIS/ATTACHMENTS

0

312943A1

OPENER

PPX-12L

1шт.

1

312436A1

OPENER

/A PPX-12L TRIPLE

1шт.

2

1030559

TUBE

LIQUID-STRAIGHT

1шт.

3

1030569

TIP

chrome edge on

1шт.

3

350951A1

TIP

CHROME CARBIDE PPX, EDGE-ON

1шт.

4

38-12424

LOCK PIN,3/8" x 1 1/2", Slotted

1шт.

5

1030051

SHIELD

OPENER, LEFT-HAND

1шт.

6

1030052

SHIELD

OPENER, RIGHT-HAND

1шт.

7

87013355

RIVET,Pop, 6.35mm OD x 19.05mm L

4шт.

8

151-572

RIVET,Pop, 1/4" x 1 1/4"

2шт.

9

1030417

BASE PLATE

plastic A-12

1шт.

10

305972A1

LARGE PLATE

PLATE, LARGE 1/2" thick with threaded hole

2шт.

10

350952A1

PLATE ASSY.

INSERT LEFT PPX OPENER

1шт.

10

350953A1

PLATE ASSY.

INSERT RIGHT PPX OPENER

1шт.

11

280460

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1"

2шт.

12

1030568

NUT

extruded panel .313-18 speed clip

1шт.

13

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.

14

80681

LOCK WASHER,5/16"

1шт.

15

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.
