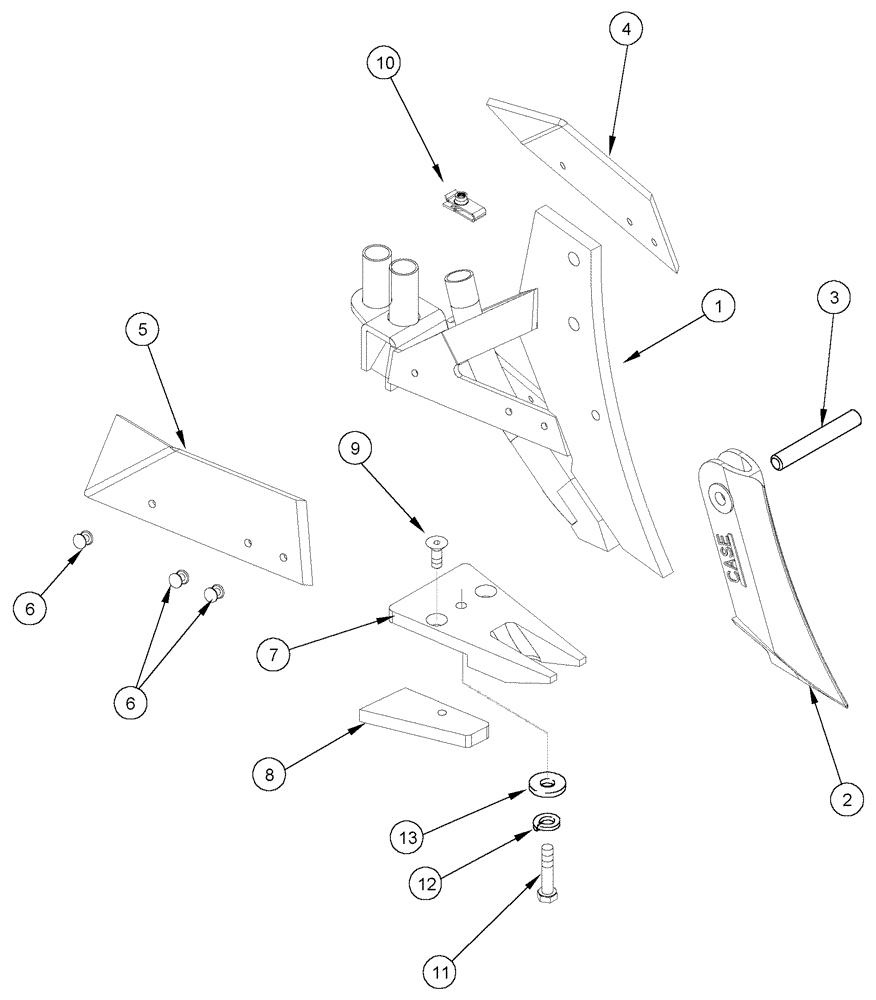

Запчасти Case IH ATX (10-34) - EDGE-ON PRECISION PLACEMENT OPENER (PPX), TRIPLE SHOOT 10 INCH DRY FERTILIZER (09) - CHASSIS/ATTACHMENTS

0

312944A1

OPENER

PPX-10D

1шт.

1

312710A1

OPENER

/A PPX-10D TRIPLE

1шт.

2

1030569

TIP

chrome edge on

1шт.

2

350951A1

TIP

CHROME CARBIDE PPX, EDGE-ON

1шт.

3

38-12424

LOCK PIN,3/8" x 1 1/2", Slotted

1шт.

4

1030051

SHIELD

OPENER, LEFT-HAND

1шт.

5

1030052

SHIELD

OPENER, RIGHT-HAND

1шт.

6

87013355

RIVET,Pop, 6.35mm OD x 19.05mm L

6шт.

7

1030055

BASE PLATE

plastic A-10

1шт.

8

305972A1

LARGE PLATE

PLATE, LARGE 1/2" thick with threaded hole

2шт.

8

350952A1

PLATE ASSY.

INSERT LEFT PPX OPENER

1шт.

8

350953A1

PLATE ASSY.

INSERT RIGHT PPX OPENER

1шт.

9

280460

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1"

2шт.

10

1030568

NUT

extruded panel .313-18 speed clip

1шт.

11

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.

12

80681

LOCK WASHER,5/16"

1шт.

13

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.
