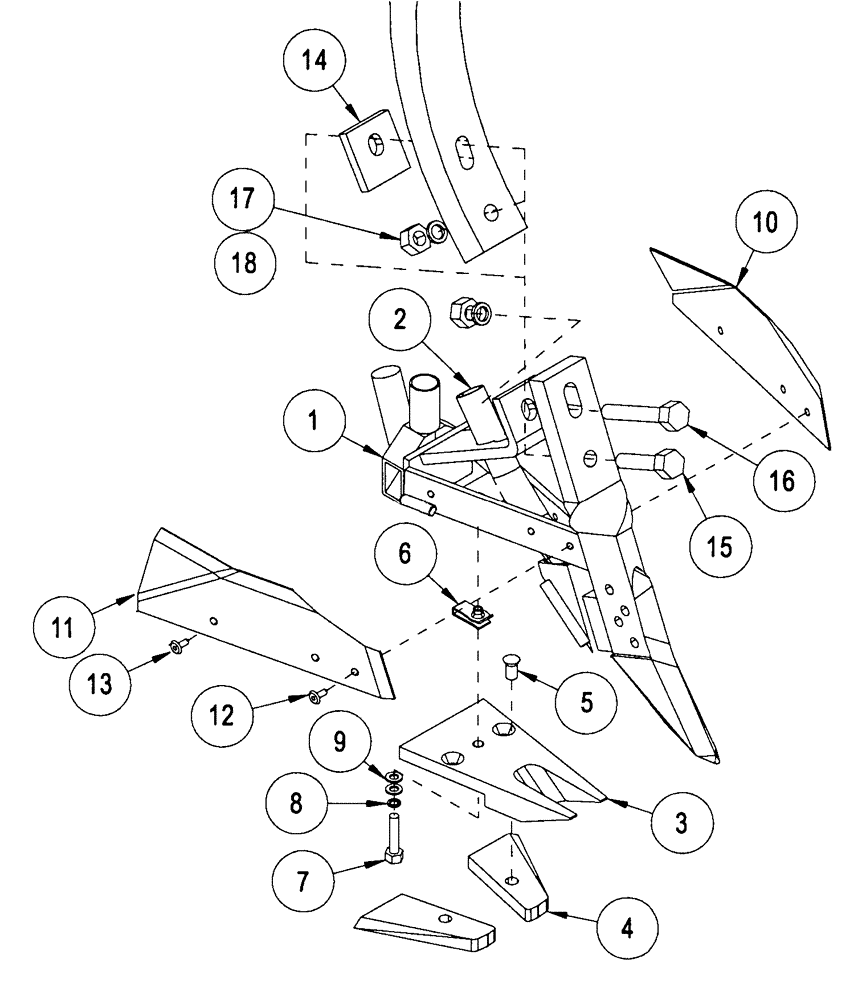

Запчасти Case IH ATX (10-30) - STANDARD ANDERSON OPENER, TRIPLE SHOOT 12 INCH DRY FERTILIZER BEFORE 06/2003 (09) - CHASSIS/ATTACHMENTS

0

1032079

OPENER

Anderson as-12 dry

1шт.

1

51200008

FRAME

standard Anderson opener AS-12 dry

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - ORDER 1033110 FRAME

1шт.

3

1030417

BASE PLATE

plastic A-12

1шт.

4

305972A1

LARGE PLATE

PLATE, LARGE 1/2" thick with threaded hole

2шт.

4

350952A1

PLATE ASSY.

INSERT LEFT PPX OPENER

1шт.

4

350953A1

PLATE ASSY.

INSERT RIGHT PPX OPENER

1шт.

5

280460

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1"

2шт.

6

1030568

NUT

extruded panel .313-18 speed clip

1шт.

7

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.

8

80681

LOCK WASHER,5/16"

1шт.

9

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

10

1030053

SHIELD

LH 1/4" thick UHMW

1шт.

11

1030054

SHIELD

RH 1/4" thick UHMW

1шт.

12

87013355

RIVET,Pop, 6.35mm OD x 19.05mm L

4шт.

13

151-572

RIVET,Pop, 1/4" x 1 1/4"

2шт.

14

1033283

SPACER

2" x 2" x 3/8" thick

17шт.

15

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

16

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

18

280431

NUT,1/2"-13, G5

2шт.
