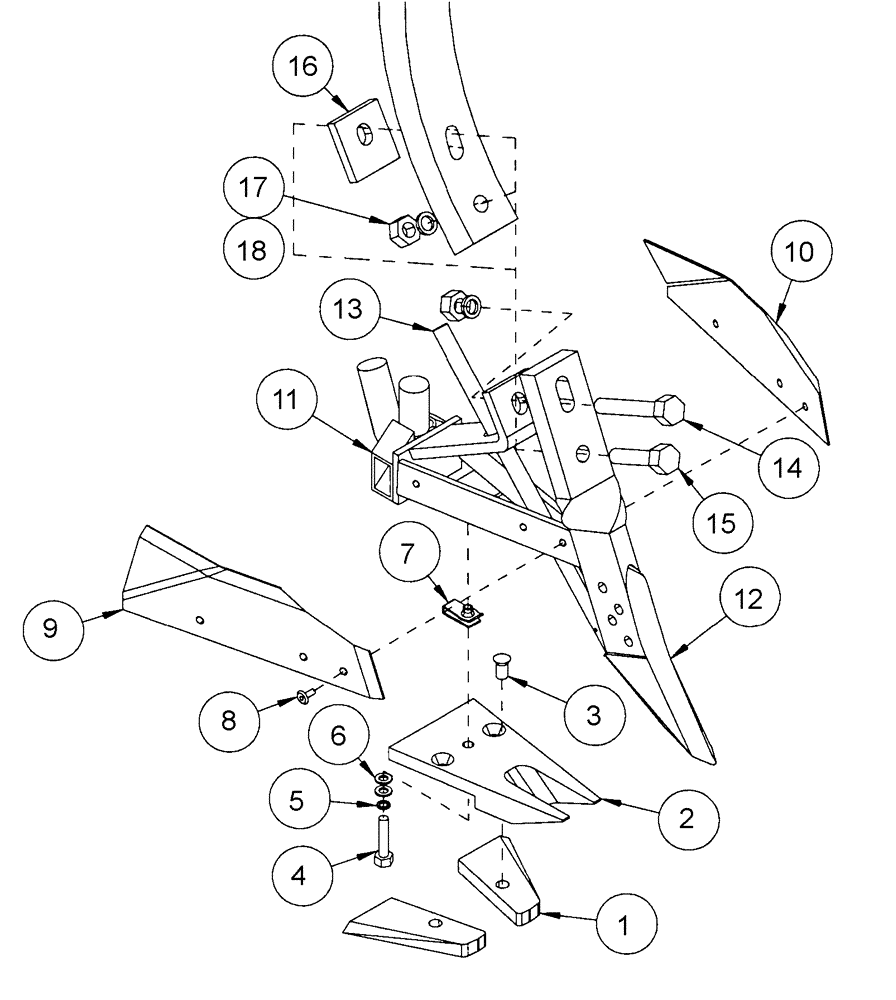

Запчасти Case IH ATX (10-28) - STANDARD ANDERSON OPENER, TRIPLE SHOOT 10 INCH LIQUID FERTILIZER BEFORE 06/2003 (09) - CHASSIS/ATTACHMENTS

0

1027882

OPENER

assy-Anderson as-10

1шт.

1

305972A1

LARGE PLATE

PLATE, LARGE 1/2" thick with threaded hole

2шт.

1

350952A1

PLATE ASSY.

INSERT LEFT PPX OPENER

1шт.

1

350953A1

PLATE ASSY.

INSERT RIGHT PPX OPENER

1шт.

2

1030055

BASE PLATE

plastic A-10

1шт.

3

280460

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1"

2шт.

4

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.

5

80681

LOCK WASHER,5/16"

1шт.

6

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

7

1030568

NUT

extruded panel .313-18 speed clip

1шт.

8

87013355

RIVET,Pop, 6.35mm OD x 19.05mm L

6шт.

9

1030054

SHIELD

RH 1/4" thick UHMW

1шт.

10

1030053

SHIELD

LH 1/4" thick UHMW

1шт.

11

1032063

FRAME

standard opener A-10 NH3

1шт.

12

1033282

TIP

CHROME A-STD

1шт.

13

1030559

TUBE

LIQUID-STRAIGHT

1шт.

14

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

15

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

16

1033283

SPACER

2" x 2" x 3/8" thick

1шт.

17

280431

NUT,1/2"-13, G5

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

2шт.
