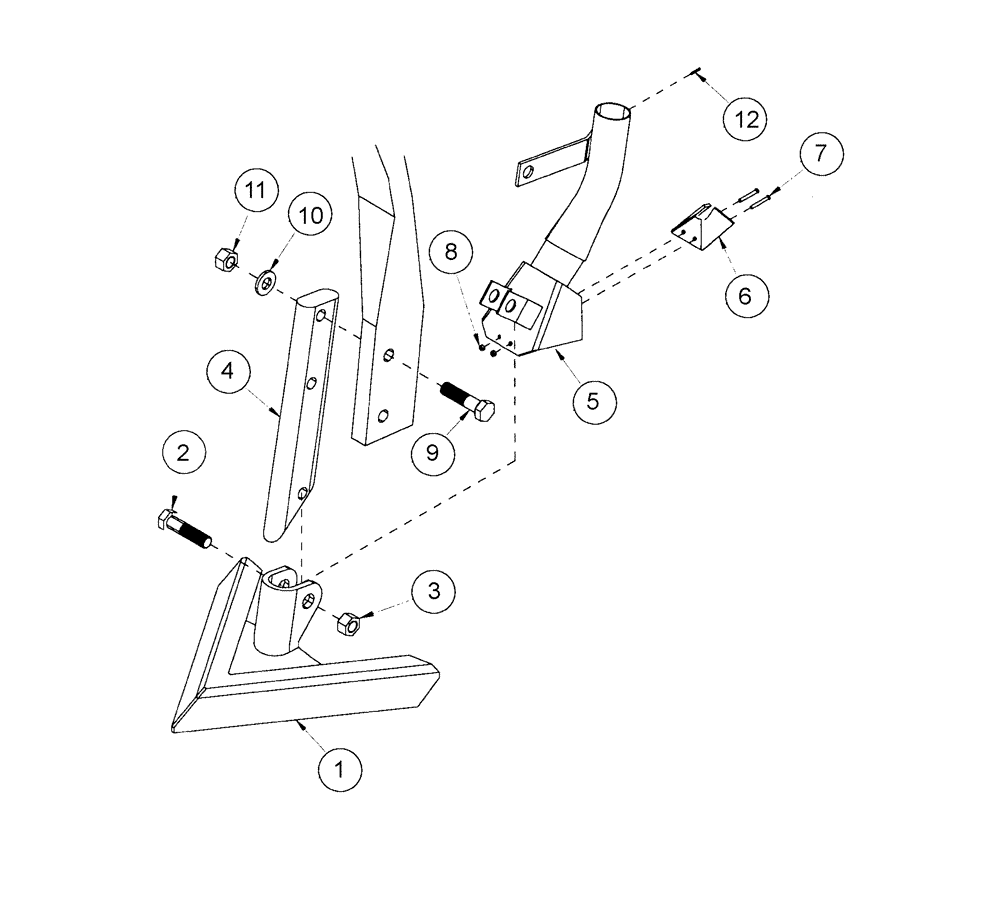

Запчасти Case IH ATX (10-18) - SWEEP ASSEMBLY - LD VERSION (09) - CHASSIS/ATTACHMENTS

1

1032199

SWEEP

LD version II 6"

1шт.

1

350232A1

SWEEP

ld 6" chrome edge

1шт.

1

1027915

SWEEP

ld version II 11"

1шт.

1

350233A1

SWEEP

ld 11" chrome edge

1шт.

1

1033379

SWEEP

ld version II 13"

1шт.

1

350234A1

SWEEP

ld 13" chrome edge

1шт.

2

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

3

86992215

LOCK NUT,1/2"-13, GC

1шт.

4

1027914

SUPPORT

shank transition

1шт.

5

306731A1

BOOT

ld seed

1шт.

Includes 306729A1, 312119A1, 312024A1 and 290077A1

1шт.

5

306729A1

BOOT

ld seed

1шт.

Included with 306731A1

1шт.

Use deflector 312119A1

1шт.

6

312119A1

DEFLECTOR

LD boot

1шт.

Included with 306731A1

1шт.

For seed boot 306731A1

1шт.

Use screw 312024A1

1шт.

7

312024A1

SCREW

Hex, #8-32 x 1/2", G2A

2шт.

Included with 306731A1

1шт.

Used with 312119A1

1шт.

8

290077A1

LOCK NUT

K Lock, #8-32, SS

2шт.

Included with 306731A1

1шт.

Used with 312119A1

1шт.

9

20987

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

11

280431

NUT,1/2"-13, G5

2шт.

12

1024456

SELF-TAP SCREW

#10 x 1/2"

1шт.

13

1030063

CABLE TIE,.30" x 8 7/8"

CABLE STRAP

1шт.

Not Shown

1шт.
