(10-16) - COULTER STUBS - OFFSET AND TUBE MOUNTS

Запчасти Case IH ATX (10-16) - COULTER STUBS - OFFSET AND TUBE MOUNTS (09) - CHASSIS/ATTACHMENTS

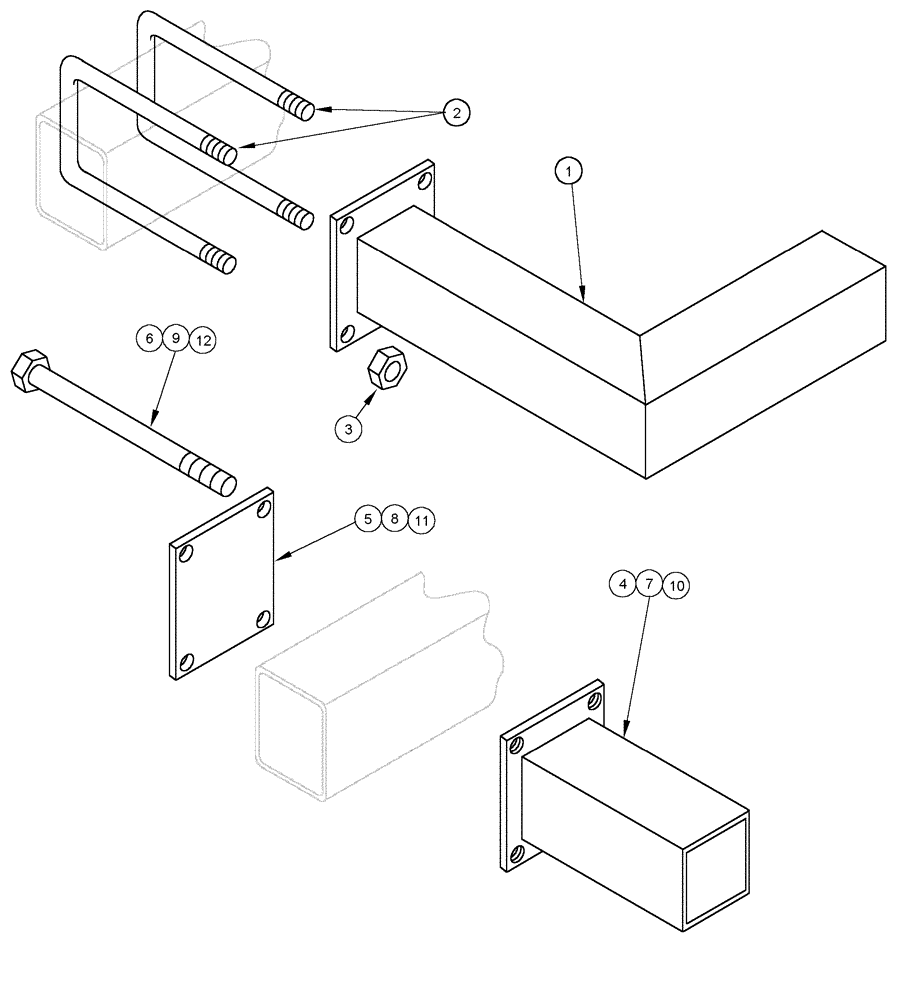

Схема запчастей Case IH ATX - (10-16) - COULTER STUBS - OFFSET AND TUBE MOUNTS (09) - CHASSIS/ATTACHMENTS
9
5
12
2
1
3
11
4
10
8
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

306933A1

SUPPORT

stub offset

1шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" US .625 4.0W 5.5D

2шт.

3

86639566

NUT,5/8"-11, GB

4шт.

4

311982A1

SUPPORT

stub

1шт.

Included in 312055A

1шт.

5

311985A1

PLATE

bolting 1/2" thick

1шт.

Included in 312055A

1шт.

6

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

Included in 312055A

1шт.

7

306929A1

SUPPORT

stub

1шт.

Included in 312056A

1шт.

8

311985A1

PLATE

bolting 1/2" thick

1шт.

Included in 312056A

1шт.

9

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

4шт.

Included in 312056A

1шт.

10

311982A1

SUPPORT

stub

1шт.

Included in 312057A

1шт.

11

311985A1

PLATE

bolting 1/2" thick

1шт.

Included in 312057A

1шт.

12

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

4шт.

Included in 312057A

1шт.
