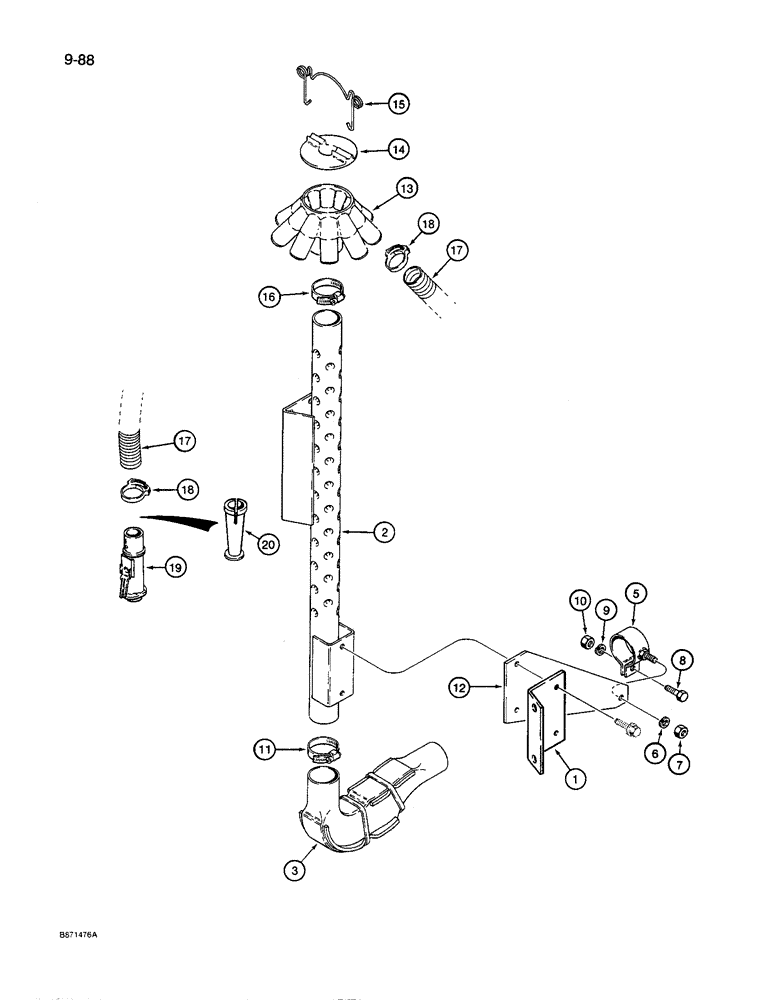

Запчасти Case IH 8600 (9-088) - AIR SYSTEM, MANIFOLD PIPE TO FURROW OPENERS, UNITS WITH 6-1/2 INCH ROW SPACING (09) - CHASSIS/ATTACHMENTS

1

88907C1

PLATE

BRACKET - manifold pipe to tool bar main frame only, see page 9-93 for hose supports and mounting

2шт.

2

841217C1

TUBE ASSY.,485, 230 mm Length

PIPE - manifold, air

6шт.

3

1960634C1

ELBOW

- manifold pipe

6шт.

5

842860C1

CLAMP

- elbow, special

6шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

7

118617

NUT,1/2"-13, G5

- hex, 1/2 inch - 13 NC

6шт.

8

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

11

1960339C1

HOSE CLAMP,2.25/3.125 HD Worm, W/liner

CLAMP - elbow to manifold pipe

6шт.

12

842862C1

PLATE

SUPPORT - manifold pipe and elbow

6шт.

13

842471C1

HEAD

MANIFOLD - distribution, 9 outlet

6шт.

14

842276C1

CAP

- manifold

6шт.

15

842890C1

SPRING

RETAINER - manifold cap

6шт.

16

1960339C1

HOSE CLAMP,2.25/3.125 HD Worm, W/liner

CLAMP - manifold to pipe

6шт.

17

REF

INSTRUCTION

HOSE - manifold to furrow openers, see page 9-99 for correct lengths

54шт.

18

91174C1

CLAMP,40.4mm - 46.1mm

- hose, manifold to furrow openers, 1.60 inch - 1.80 inch (40_mm - 46_mm) range

108шт.

18

97612C1

CLAMP

- hose, manifold to furrow openers, 1.70 inch - 2.0 inch (43_mm - 51_mm) range

108шт.

19

842892C2

ADAPTER

- hose to furrow opener, see pages 9-75 through 9-79B for furrow openers

54шт.

20

1546951C1

FUNNEL

- hose adapter, small seed, one used per furrow opener, if used

1шт.
