Запчасти Case IH 8600 (9-083A) - OPTIONAL 18 INCH DEPTH PRESS WHEEL, WITH TWO PIECE SPLIT PRESS WHEEL, P.I.N. 141275 AND AFTER (09) - CHASSIS/ATTACHMENTS

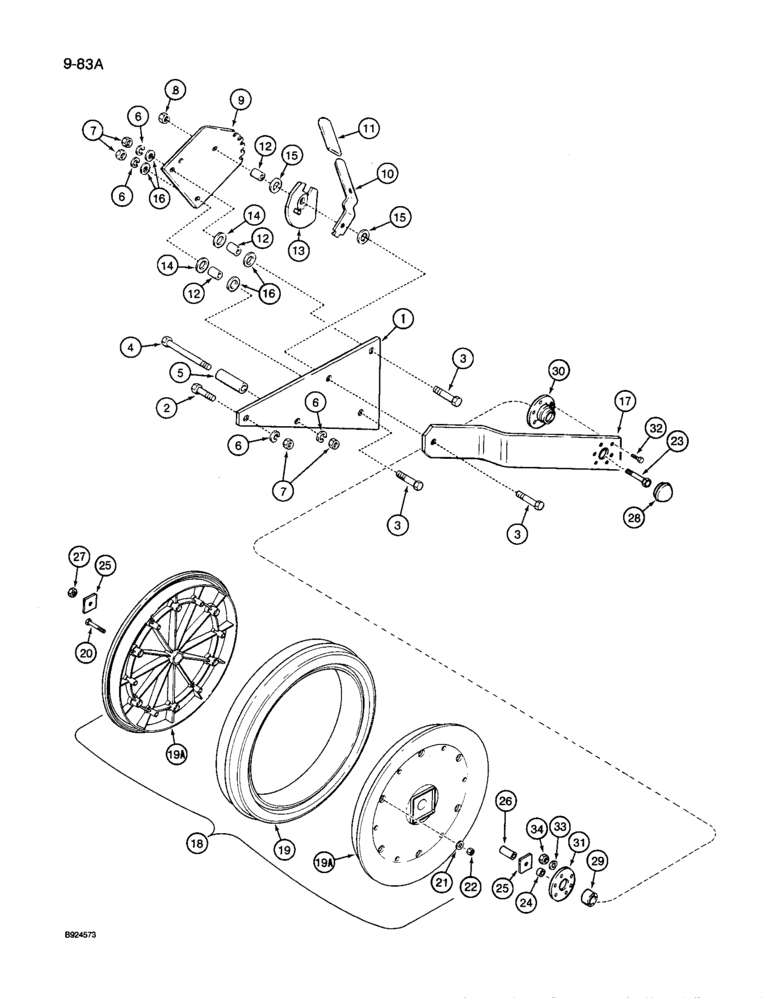

Схема запчастей Case IH 8600 - (9-083A) - OPTIONAL 18 INCH DEPTH PRESS WHEEL, WITH TWO PIECE SPLIT PRESS WHEEL, P.I.N. 141275 AND AFTER (09) - CHASSIS/ATTACHMENTS
18
12
28
15
2
8
29
24
9
17
27
7
25
14
6
10
6
12
19a
22
15
3
6
5
1
14
13
33
23
32
6
30
7
19a
25
12
3
26
31
15
20
34
16
4
11
19
3
21

Артикул

Название

Примечание

Количество

1

1333882C1

PLATE

BRACKET - mounting, press wheel

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

3

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

4

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1шт.

5

145179C1

SPACER

- bracket to furrow opener

1шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

8

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

9

1333877C1

SECTOR

PLATE - depth adjustment, press wheel

1шт.

10

842696C2

ADJUSTER

LEVER - adjustment, depth

1шт.

11

1958265C1

GRIP

- rubber, lever

1шт.

12

842699C1

SPACER

- adjustment plate

3шт.

13

842698C1

CAM

- adjustment lever

1шт.

14

467750R1

WASHER

- flat, 3/4 ID x 1-1/2 OD x 0.105 inch thick

2шт.

15

1960614C1

WASHER,20mm ID x 35mm OD x 1.58mm Thk

- wear, at lever and cam

2шт.

16

21757R1

WASHER

- flat, 3/4 ID x 1-1/4 OD x 0.027 inch thick

1шт.

17

1333880C1

BAR

ARM - mounting, press wheel

1шт.

18

1985989C1

RIM

WHEEL ASSEMBLY - depth press

1шт.

19

842032C1

TYRE/TIRE

TIRE - rubber, press wheel

1шт.

19a

NSS

NOT SOLD SEPARAT

WHEEL - depth press

2шт.

20

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

12шт.

21

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

12шт.

22

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

12шт.

23

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

1шт.

24

1985960C1

SPACER

- bearing, 13 mm long

1шт.

25

1985959C1

BAR

PLATE - press wheel

2шт.

26

1985961C1

SPACER

- press wheel, 66 mm long

1шт.

27

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

28

492709R1

CAP

- dust, bearing

1шт.

29

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

- press wheel

1шт.

29

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

30

149170C2

FLANGED BEARING

- bearing, outer

1шт.

31

842895C1

RETAINER

- bearing, inner

1шт.

32

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

34

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

Выбрано товаров: 36
