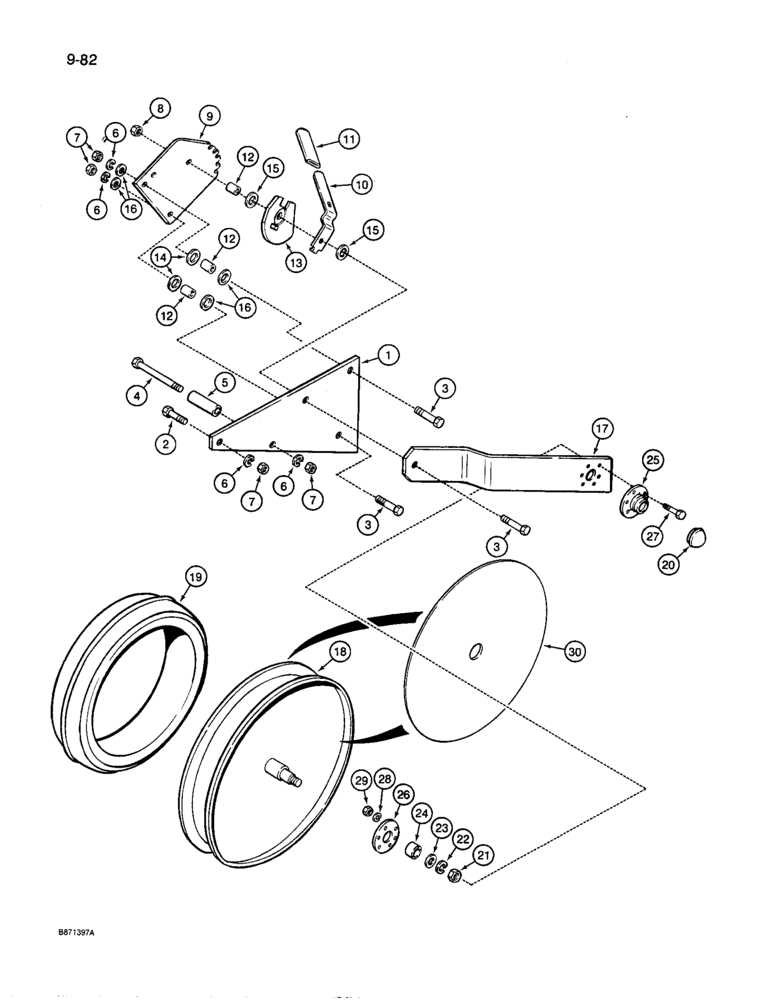

Запчасти Case IH 8600 (9-082) - OPTIONAL 18 INCH DEPTH PRESS WHEEL, WITH ONE PIECE SOLID PRESS WHEEL, PRIOR TO P.I.N. 141275 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
1333882C1
PLATE
BRACKET - mounting, press wheel
1шт.
2
113-410
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
1шт.
3
113-421
BOLT,Hex, 1/2" - 13 x 2", Gr 5
3шт.
4
113-411
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
1шт.
5
145179C1
SPACER
- bracket to furrow opener
1шт.
6
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
7
129-105
NUT,Hex, 1/2" - 13, Gr 5
4шт.
8
131-1153
LOCK NUT,1/2"-13, GC
NUT, LOCK, 1/2"-13, GC
1шт.
9
1333877C1
SECTOR
PLATE - depth adjustment, press wheel
1шт.
10
842696C2
ADJUSTER
LEVER - adjustment, depth
1шт.
11
1958265C1
GRIP
- rubber, lever
1шт.
12
842699C1
SPACER
- adjustment plate
3шт.
13
842698C1
CAM
- adjustment lever
1шт.
14
467750R1
WASHER
- flat, 3/4 ID x 1-1/2 OD x 0.105 inch thick
2шт.
15
1960614C1
WASHER,20mm ID x 35mm OD x 1.58mm Thk
- wear, at lever and cam
2шт.
16
21757R1
WASHER
- flat, 3/4 ID x 1-1/4 OD x 0.027 inch thick
1шт.
17
1333880C1
BAR
ARM - mounting, press wheel
1шт.
18
1973103C1
WHEEL
ASSEMBLY - depth press
1шт.
19
842032C1
TYRE/TIRE
TIRE - rubber, press wheel
1шт.
20
492709R1
CAP
- dust, bearing
1шт.
21
129-105
NUT,Hex, 1/2" - 13, Gr 5
1шт.
22
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
23
25710R1
WASHER
- bearing retaining, special, hardened
1шт.
24
1268017C91GV
BEARING
Value, Ball Bearing
1шт.
25
149170C2
FLANGED BEARING
- bearing, outer
1шт.
26
842895C1
RETAINER
- bearing, inner
1шт.
27
413-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
6шт.
28
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
6шт.
29
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
6шт.
1985934C1
PACKAGE
KIT - dirt shield, press wheels
1шт.
30
NSS
NOT SOLD SEPARAT
SHIELD - dirt, wheel
54шт.
31
8-77990
HANDBOOK
SHEET - instruction, kit installation
1шт.
Выбрано товаров: 33
