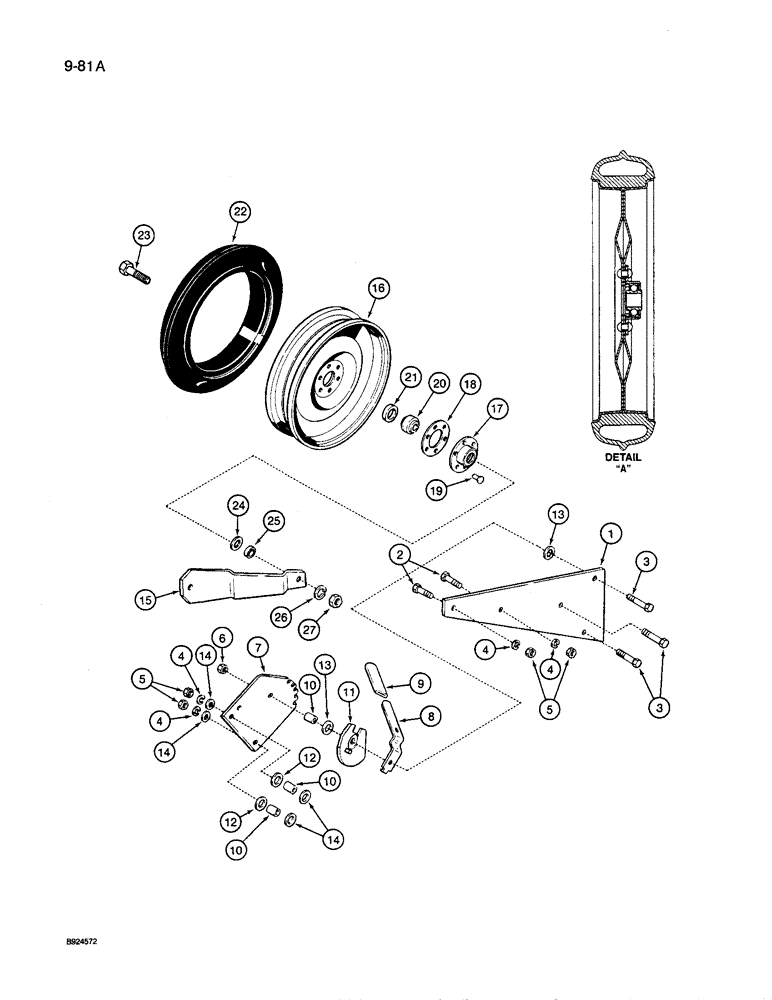

Запчасти Case IH 8600 (9-081A) - 13 INCH DEPTH PRESS WHEEL (09) - CHASSIS/ATTACHMENTS

1

1333883C1

PLATE

BRACKET - mounting, press wheel

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

3

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

7

1333877C1

SECTOR

PLATE - depth adjustment, press wheel

1шт.

8

842696C2

ADJUSTER

LEVER - adjustment, depth

1шт.

9

1958265C1

GRIP

- rubber, lever

1шт.

10

842699C1

SPACER

- adjustment plate

3шт.

11

842698C1

CAM

- adjustment lever

1шт.

12

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

2шт.

13

1960614C1

WASHER,20mm ID x 35mm OD x 1.58mm Thk

- wear, at lever and cam

2шт.

14

495-81036

WASHER,19.84mm ID x 31.75mm OD x 0.84mm Thk

- flat, 25/32 x 1-1/4 x 1/32 inch

1шт.

15

1333881C1

BAR

ARM - mounting, press wheel

1шт.

1973102C2

WHEEL

ASSEMBLY - depth press

1шт.

16

NSS

NOT SOLD SEPARAT

WHEEL - depth press

1шт.

17

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

- bearing

1шт.

18

602992R2

GASKET,0.79mm Thk

- bearing retainer

1шт.

19

28755R1

RIVET,FH, 1/4" x 9/16"

- button head, 1/4 inch x 9/16 inch

6шт.

20

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

BEARING - press wheel

1шт.

21

1985914C1

SPACER, RING

SPACER - bearing

1шт.

22

842666C1

TYRE/TIRE

TIRE - rubber, press wheel

1шт.

23

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch, wheel mounting

1шт.

24

495-81032

WASHER,18.26mm ID x 31.75mm OD x 1.7mm Thk

- flat, 23/32 x 1-1/4 x 3/64 inch

1шт.

25

610993R1

WASHER

-, Serial Range: wheel-arm

1шт.

FOR PART #25 610993R1IF THIS WASHER SPACER IS NOT THE SIZE THAT THE DEALER IS LOOKING FOR TRY A 577715R1 JDS CAM 1/15/97

1шт.

26

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

27

425-1010

NUT,5/8"-11, G5

1шт.
