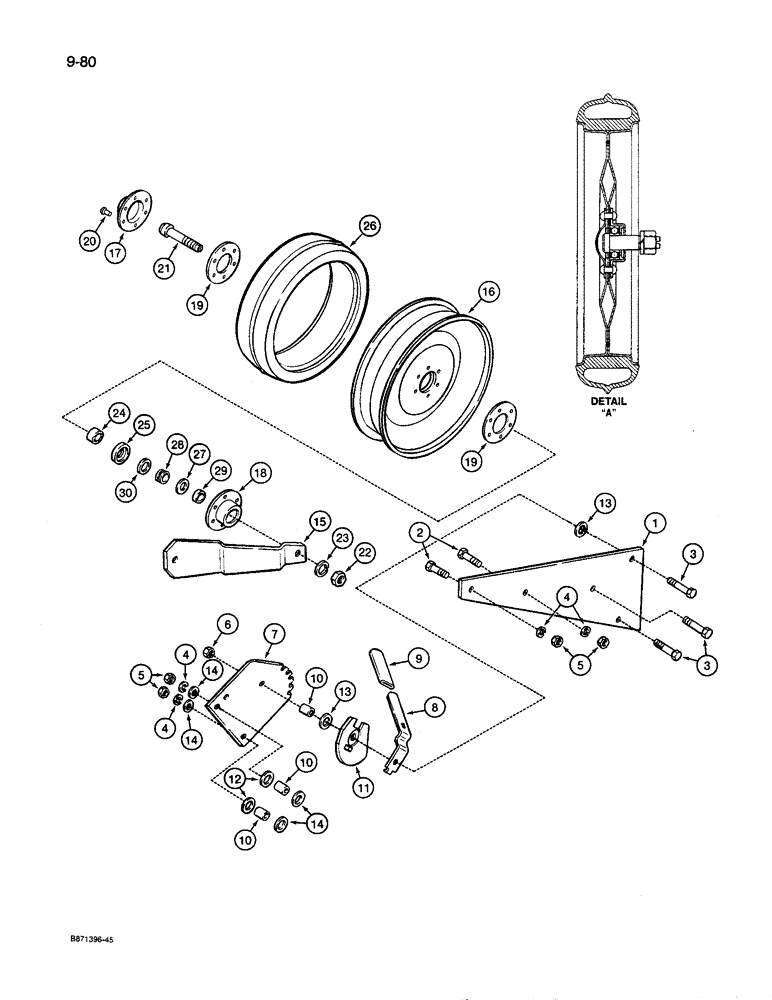

Запчасти Case IH 8600 (9-080) - 13 INCH DEPTH PRESS WHEEL (09) - CHASSIS/ATTACHMENTS

1

1333883C1

PLATE

BRACKET - mounting, press wheel

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

6

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

7

1333877C1

SECTOR

PLATE - depth adjustment, press wheel

1шт.

8

842696C2

ADJUSTER

LEVER - adjustment, depth

1шт.

9

1958265C1

GRIP

- rubber, lever

1шт.

10

842699C1

SPACER

- adjustment plate

3шт.

11

842698C1

CAM

- adjustment lever

1шт.

12

467750R1

WASHER

- flat, 3/4 ID x 1-1/2 OD x 0.105 inch thick

2шт.

13

1960614C1

WASHER,20mm ID x 35mm OD x 1.58mm Thk

- wear, at lever and cam

2шт.

14

21757R1

WASHER

- flat, 3/4 ID x 1-1/4 OD x 0.027 inch thick

1шт.

15

1333881C1

BAR

ARM - mounting, press wheel

1шт.

1973102C1

WHEEL

ASSEMBLY - depth press

1шт.

16

NSS

NOT SOLD SEPARAT

WHEEL - depth press

1шт.

17

602990R1

CAP

- dust

1шт.

18

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

- bearing

1шт.

19

602992R2

GASKET,0.79mm Thk

- bearing retainer and dust cap

2шт.

20

990839R91

RIVET

- button head, 1/4 inch x 5/8 inch

6шт.

21

602987R11

BOLT

- special, wheel mounting

1шт.

22

425-1110

NUT,5/8"-18, G5

- hex, 5/8 inch - 18 NF

1шт.

23

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

- press wheel

1шт.

25

602994R1

FLANGE

RETAINER - seal

1шт.

26

842666C1

TYRE/TIRE

TIRE - rubber, press wheel

1шт.

27

591714R1

WASHER

- special, 0.719 ID x 1.250 OD x 0.054 inch thick

1шт.

28

464628R1

SEAL

- dirt, bearing

1шт.

29

610993R1

WASHER

-, Serial Range: wheel-arm

1шт.

FOR PART # 29 610993R1IF THIS WASHER SPACER IS NOT THE SIZE THAT THE DEALER IS LOOKING FOR TRY A 577715R1 JDS CAM 1/15/97

1шт.

30

602988R1

SPACER

- seal retainer

1шт.
