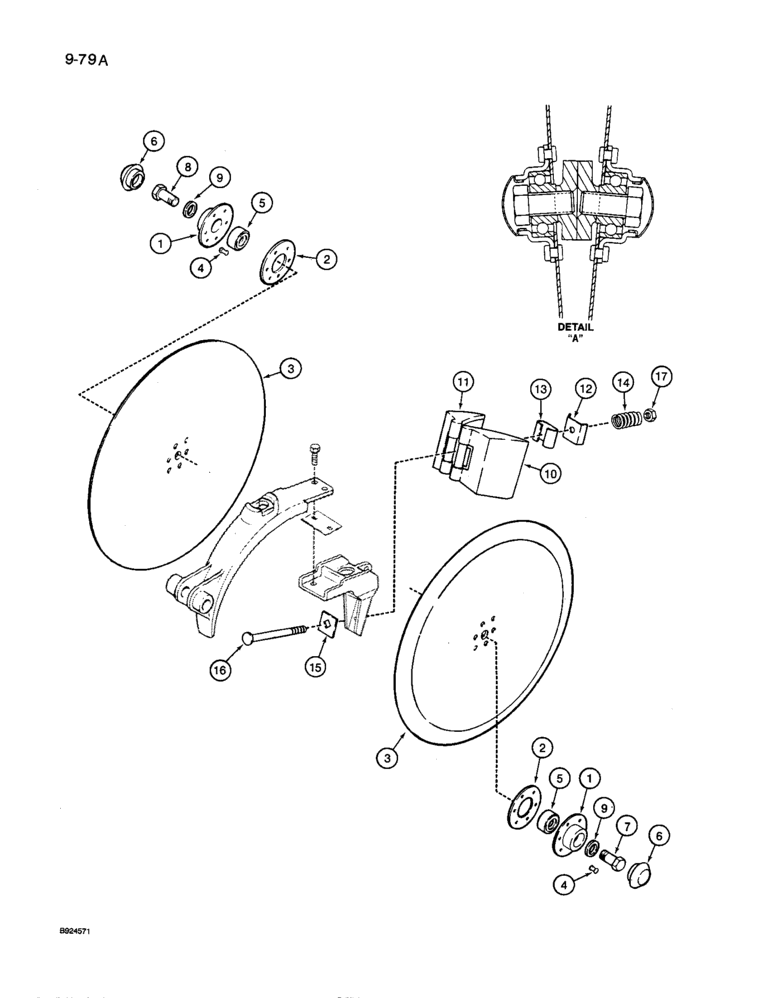

Запчасти Case IH 8600 (9-079A) - FURROW OPENER DISK (09) - CHASSIS/ATTACHMENTS

1344911C2

DISK DRILL

DISK AND HUB ASSEMBLY - furrow opener

2шт.

REF 1344911C1-- A HEAVY DUTY 1337971C1 MAKES A BETTER REPLACEMENT .JP 13FEB98

1шт.

1

149170C2

FLANGED BEARING

- bearing

1шт.

2

1344952C1

GASKET

- bearing retainer

2шт.

3

NSS

NOT SOLD SEPARAT

DISK - furrow opener (Order 1344911C1)

1шт.

4

447-49

RIVET,FH, 1/4" x 9/16"

- disk to bearing retainer, 1/4 inch x 9/16 inch

6шт.

5

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

- disk

1шт.

5

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

6

492709R2

CAP

- dirt protector

2шт.

7

1978957C1

BOLT,Hex, 5/8" - 11 x 1-1/4", LH Thd, Gr 5

- special, disk to drawbar, left-hand thread

1шт.

8

1978956C1

BOLT,Hex, 5/8" - 11 RH x 1 1/4", Gr 5

- special, disk to drawbar, right-hand thread

1шт.

9

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

- special, hardened

2шт.

843364C92

KIT

SCRAPER ASSEMBLY - disk, inside

1шт.

10

NSS

NOT SOLD SEPARAT

SCRAPER - inside, left-hand side (Order 843364C92)

1шт.

11

NSS

NOT SOLD SEPARAT

SCRAPER - inside, right-hand side (Order 843364C92)

1шт.

12

816668C1

LEDGER PLATE

SPREADER - scraper

1шт.

13

819808C1

HINGE

- scraper

1шт.

14

N62536

VALVE SPRING

SPRING - scraper

1шт.

15

97756C1

BACK PLATE

PLATE - backup, scraper

1шт.

16

433-544

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 3/4", Gr 5

BOLT - carriage head, 5/16 NC x 2-3/4 inch

1шт.

17

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.
