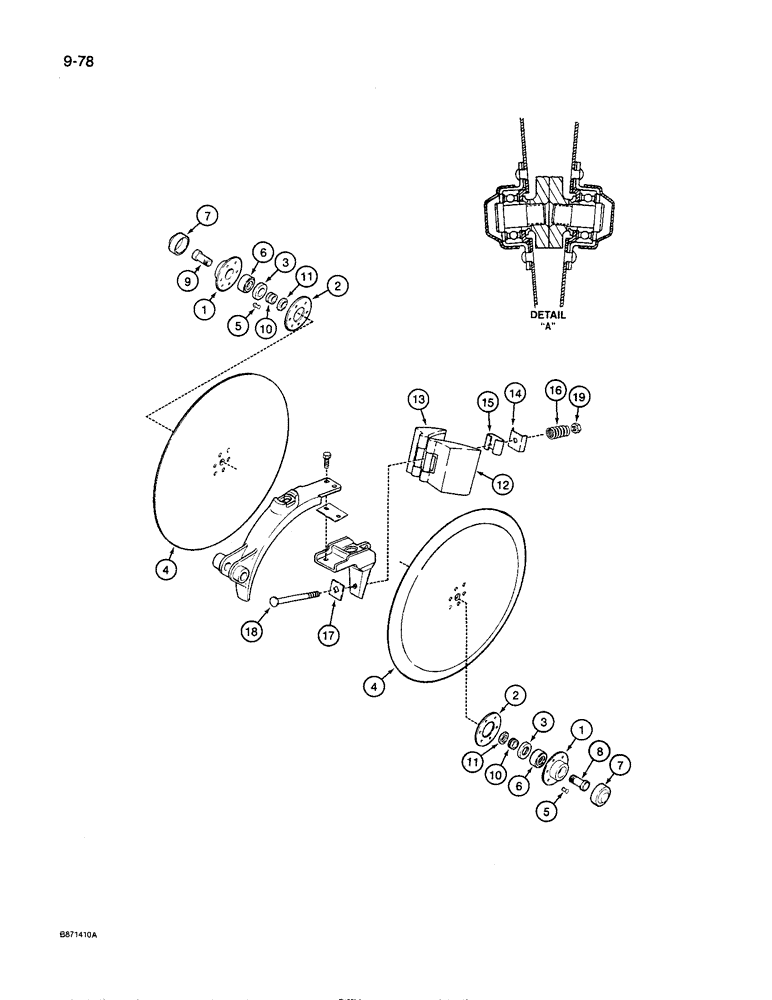

Запчасти Case IH 8600 (9-078) - FURROW OPENER DISK (09) - CHASSIS/ATTACHMENTS

97757C1

DISC

DISK AND HUB ASSEMBLY - furrow opener

2шт.

1

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

- bearing

1шт.

2

602992R2

GASKET,0.79mm Thk

- bearing retainer

2шт.

3

602994R1

FLANGE

RETAINER - seal

1шт.

4

NSS

NOT SOLD SEPARAT

DISK - furrow opener (Order 97757C1)

1шт.

5

990322R91

RIVET

- disk to bearing retainer, 1/4 inch x 1/2 inch

6шт.

6

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

- disk

1шт.

7

603012R1

DUST CAP

CAP - dirt protector

2шт.

8

603010R2

BOLT

- special, disk to drawbar, left-hand thread

1шт.

9

603011R2

BOLT

- special, disk to drawbar, right-hand thread

1шт.

10

602988R1

SPACER

- seal retainer

2шт.

11

464628R1

SEAL

- dirt, bearing

2шт.

843364C91

BLADE

SCRAPER ASSEMBLY - disk, inside

1шт.

12

NSS

NOT SOLD SEPARAT

SCRAPER - inside, left-hand side

1шт.

13

NSS

NOT SOLD SEPARAT

SCRAPER - inside, right-hand side

1шт.

14

816668C1

LEDGER PLATE

SPREADER - scraper

1шт.

15

819808C1

HINGE

- scraper

1шт.

16

N62536

VALVE SPRING

SPRING - scraper

1шт.

17

97756C1

BACK PLATE

PLATE - backup, scraper

1шт.

18

27445R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 3/4", Gr 5

BOLT - carriage head, 5/16 NC x 2-3/4 inch

1шт.

19

230-4115

LOCK NUT,5/16"-18, GA

NUT - hex, 5/16 inch NC

1шт.
