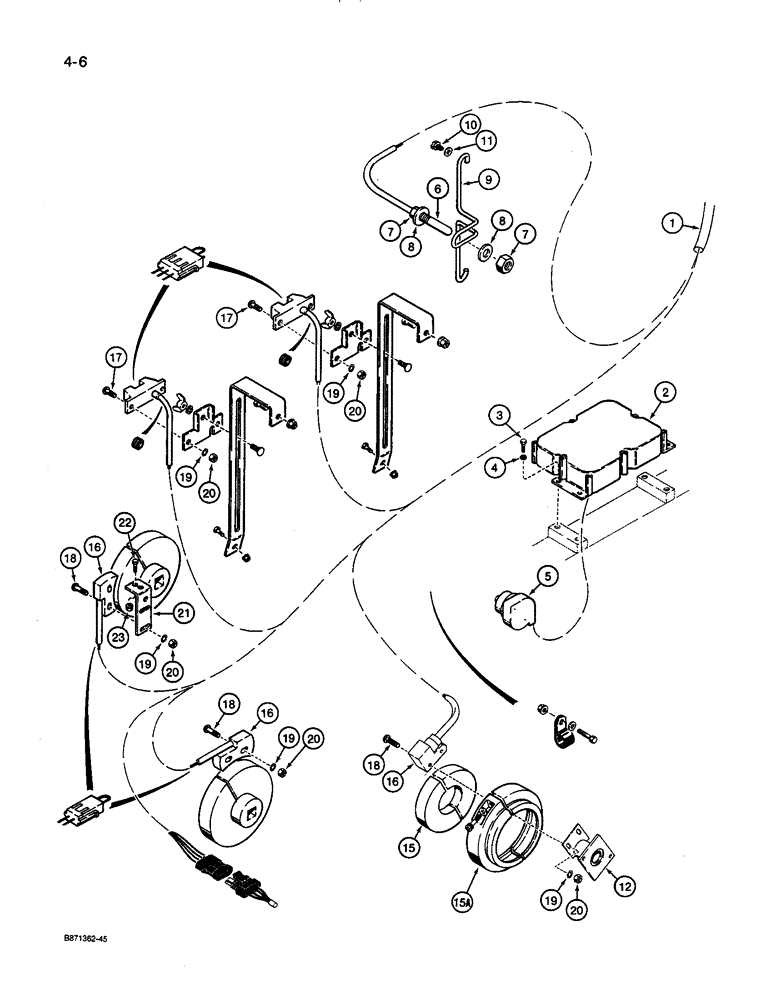

Запчасти Case IH 8600 (4-06) - CART HARNESS, REMOTE MODULE AND SENSORS (04) - ELECTRICAL SYSTEMS

1

91891C3

HARNESS

HARNESS - cart, remote module and sensors

1шт.

2

1935104C1

REMAN-ELECT MONITOR

REMAN-MONITOR MODULE - remote, remanufactured

1шт.

2

1935105C1

CORE-MONITOR

RETURN NUMBER - remote, use this number to return module core for credit when using a remanufactured assembly

1шт.

2

84205C2

CONTROL

MODULE - remote, new

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

92381C1

HOLDER

BRUSH HOLDER - electric clutch, see page 9-45 for clutch

1шт.

6

245193C2

SENSOR

SENSOR - fan speed

1шт.

7

84116C1

NUT

NUT - hex, special, 3/4" - 16 NF, fan sensor mounting

2шт.

8

103346

WASHER

- flat, 3/4"

2шт.

9

841214C1

SUPPORT

SUPPORT - fan sensor

1шт.

10

850679C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 3/4"

SCREW - hex head, self-tapping, 5/16" - 18 NC x 3/4"

2шт.

11

446363

WASHER,5/16"

WASHER - flat, 5/16"

2шт.

12

1336800C1

BRACKET

BRACKET - mounting, idler sprocket and area sensor, see page 9-49 for idler and related parts

1шт.

1337083C1

KIT

KIT - actuator, land area

1шт.

15

NSS

NOT SOLD SEPARAT

ADAPTER - shaft collar

1шт.

15a

1960449C1

COLLAR

COLLAR - shaft, with magnets, includes mounting hardware

1шт.

16

84229C1

TRANSMITTER

SENSOR - fertilizer and grain shaft speed, and land area

3шт.

17

86511922

SCREW,Pan, #10 - 24 x 3/4"

MACHINE SCREW - pan head, No. 10 - 32 NC x 3/4"

4шт.

18

159962

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

MACHINE SCREW - pan head, No. 10 - 32 NC x 1-1/4"

6шт.

19

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER - lock, external-internal tooth, No. 10

10шт.

20

120361

NUT,Hex Mach Screw, #10 - 24

NUT - hex, No. 10 - 32 NC

10шт.

21

842840C1

SUPPORT

SUPPORT - fertilizer shaft sensor

1шт.

22

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

23

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT - hex, flange lock, 1/4" - 20 NC

2шт.
