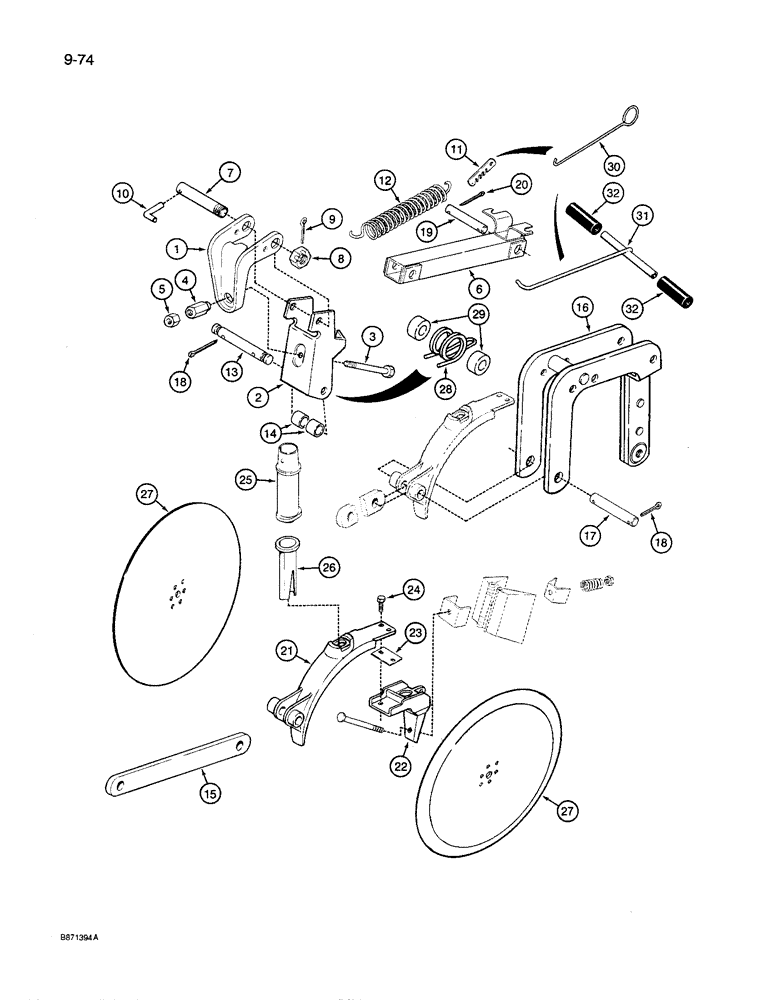

Запчасти Case IH 8600 (9-074) - FRONT FURROW OPENER MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

810774C1

CLAMP

- mounting, furrow opener

1шт.

2

841543C1

BRACKET

- mounting, opener spring

1шт.

3

1336281C1

BOLT

- furrow opener clamp

1шт.

4

91055C1

LOCK

- clamp, eccentric

1шт.

5

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

6

842133C1

ARM ASSY.

ARM - upper, drawbar connecting

1шт.

7

842409C1

PIN

- upper, Serial Range: arm-clamp

1шт.

8

427637

SLOTTED NUT,3/4"-10, G5

NUT - hex slotted, 3/4 inch - 10 NC

1шт.

9

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

10

842408C1

ROD

LOCK - pin

1шт.

11

841561C1

SECTOR

RETAINER - spring tension

2шт.

12

841550C1

SPRING

- furrow opener

2шт.

13

841560C1

PIN

- front, spring anchor

1шт.

14

PO12482

SPACER,3/4" Pipe x 7/8"

- spring pin

2шт.

15

841563C1

BAR

LINK - lower, drawbar connecting

1шт.

16

841546C1

DRAWBAR

- mounting, furrow opener

1шт.

17

842765C1

PIN

- lower, drawbar mounting

1шт.

18

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

4шт.

19

841687C1

PIN,15.9mm OD x 105mm L

- upper, drawbar mounting

1шт.

20

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

21

842891C1

BOOT

- front, furrow opener

1шт.

22

842894C1

BOOT

- rear, furrow opener

1шт.

23

88893C1

PLATE

- backup

1шт.

24

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

SCREW - self-tapping, 5/16 inch - 18 NC x 1 inch

2шт.

25

842892C2

ADAPTER

- furrow opener, Serial Range: tube-hose

1шт.

26

842893C2

PLASTIC-RUBBER TUBE,42 mm OD x 219 mm L

TUBE - seed, furrow opener

1шт.

27

REF

INSTRUCTION

DISK - furrow opener, see pages 9-79 and 9-79B for disk and scraper parts

1шт.

28

842738C1

SPRING

- torsion, front furrow opener, used when press wheels are not installed, 20 used with 9 inch row spacing, 27 used with 6-1/2 inch row spacing

20-27шт.

29

91298C1

SPACER

- spring, 40 used with 9 inch row spacing, 54 used with 6-1/2 inch row spacing

40-54шт.

30

1264493C1

ROD

TOOL - adjustment, furrow opener spring, if used

1шт.

31

842739C1

TOOL

- adjustment, furrow opener spring, if used

1шт.

32

829541C1

GRIP

HANDLE - adjustment tool, used with item 31 only

2шт.
