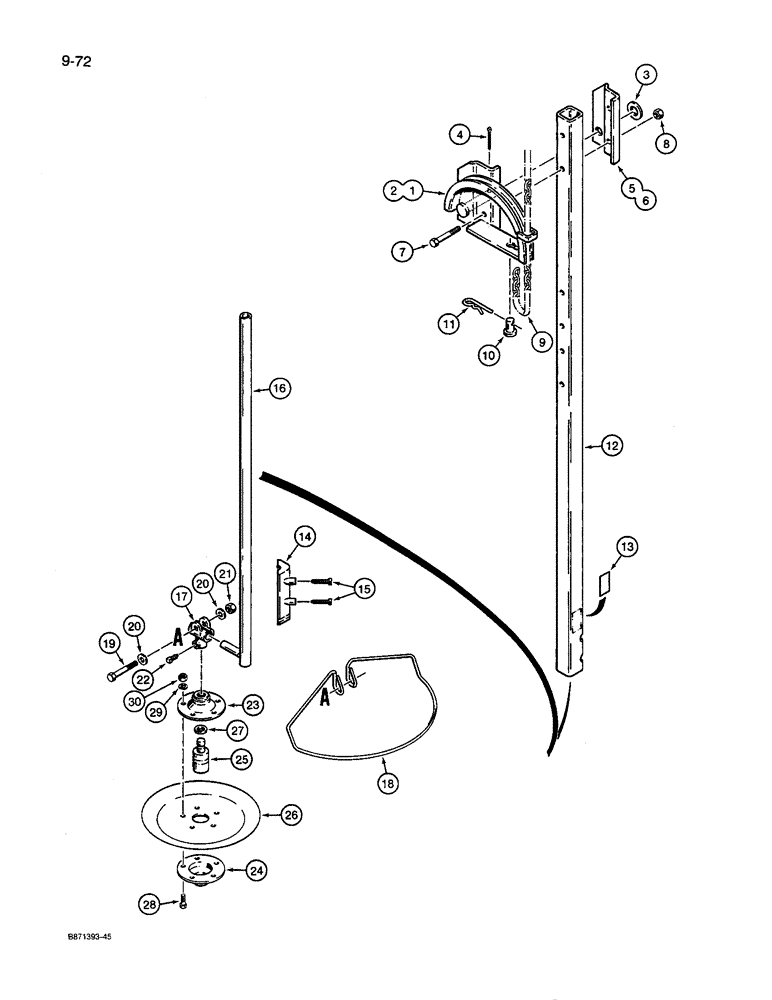

Запчасти Case IH 8600 (9-072) - ROW MARKER PARTS, OUTER ARMS AND MARKER DISK (09) - CHASSIS/ATTACHMENTS

1

100219C1

PULLEY

GUIDE - chain, left-hand side, not shown

1шт.

2

100220C1

PULLEY

GUIDE - chain, right-hand side

1шт.

3

668752R1

WASHER

- flat, special

2шт.

4

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

5

100222C1

SUPPORT

BRACKET - mounting, outer marker arm, left-hand side, not shown

1шт.

6

113041C1

SUPPORT

BRACKET - mounting, outer marker arm, right-hand side

1шт.

7

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

4шт.

8

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex, lock, 1/2 inch - 13 NC

4шт.

9

1279713C1

CHAIN (AG)

CHAIN - actuator, row marker, 110 inch (2794 mm) long, see page 9-71 for connection to chain retainer

2шт.

10

22090R1

HEADED PIN

PIN - retainer, actuator chain

2шт.

11

486830R1

COTTER PIN

PIN - hair, internal type, 3/16 inch x 2-29/32 inch

2шт.

12

1254188C92

TUBE

ARM ASSEMBLY - row marker, outer section

2шт.

13

1254154C1

DECAL,Warning Keep Away Markers Actuate

- Warning, keep away

1шт.

14

1264424C1

STOP

CLAMP - row marker adjustment rod

2шт.

15

110451

SET SCREW

- set, square head, 1/2 inch - 13 NC X 1-1/4 inch

4шт.

16

100226C1

TUBE

ROD - adjustable, row marker

2шт.

17

97741C1

PIVOT

CLAMP - marker, Serial Range: rod-disk

2шт.

18

113223C1

GUARD

- marker disk

2шт.

19

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

20

195-106

WASHER,1/2"

- flat, 1/2 inch

4шт.

21

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex, lock, 1/2 inch - 13 NC

2шт.

22

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - set, square head, 3/8 inch x 3/4 inch

2шт.

1337981C2

DISC

DISK ASSEMBLY - row marker

2шт.

23

472020R1

BEARING HOUSING,19.66 mm ID x 38.125 mm OD

HOUSING - bearing, inner

1шт.

24

472021R1

HOUSING,38.125 mm ID x 76.2 mm OD

- bearing, outer

1шт.

25

472022R91

BEARING, BALL,18.961 mm ID x 38.1 mm OD x 91.13 mm

BEARING - marker disk

1шт.

26

31283R1

DISC,13", FLAT CENTER

DISK - row marker

1шт.

27

480679R1

WASHER

SEAL - dirt, disk bearing

1шт.

28

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Service replacement for rivet Hex, 1/4"-20 x 3/4", G5, Full Thd

5шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Service replacement for rivet 1/4"

5шт.

30

120375

NUT,Hex, 1/4" - 20, Gr 5

Service replacement for rivet 1/4"-20, G5

5шт.
