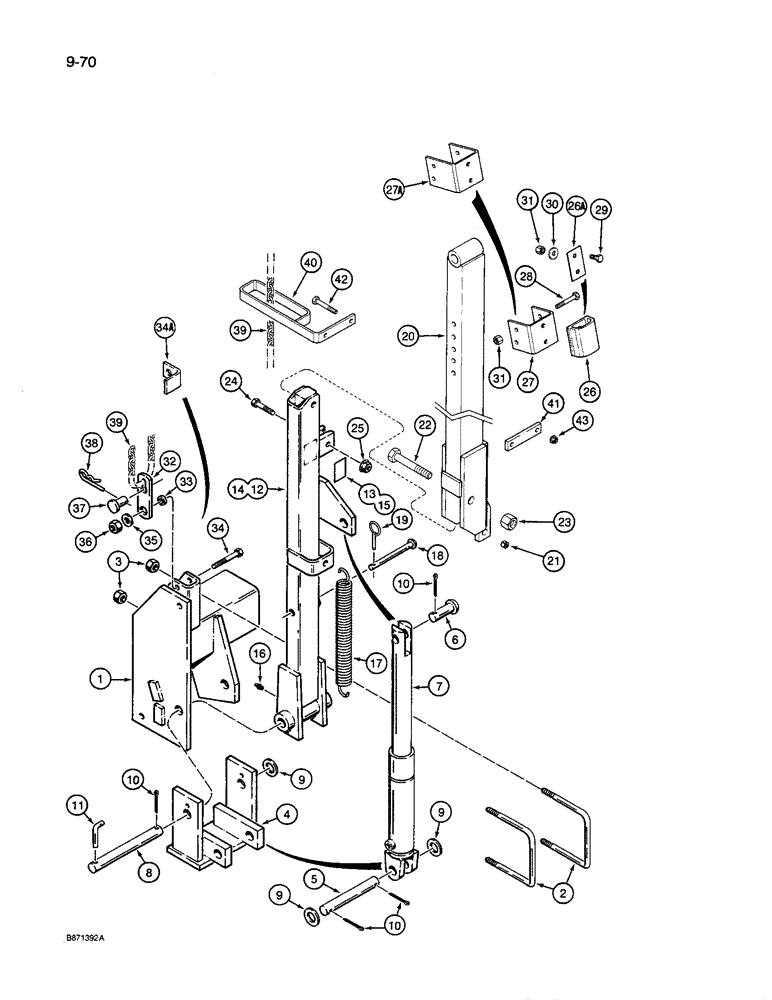

Запчасти Case IH 8600 (9-070) - ROW MARKER PARTS, FRAME MOUNTING AND INSIDE ARMS (09) - CHASSIS/ATTACHMENTS

1

1263694C1

BRACKET

- mounting, row marker to wing frame

2шт.

2

1279639C1

U-BOLT,5/8" - 11 x 4.96" W x 6.50" L

-, Serial Range: bracket-frame

4шт.

3

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch - 11 NC

8шт.

4

1279633C1

HITCH BRACKET

BRACKET - cylinder pivot

2шт.

5

1279644C1

PIVOT PIN,25.4mm OD x 183mm L

PIN - mounting, marker cylinder, base end

2шт.

6

22964R1

HEADED PIN,1" x 2 7/16"

PIN - mounting, 2-1/2 inch long, marker cylinder, rod end, used with 145622C91 and 841038C91 cylinders

2шт.

6

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - mounting, 3-1/4 inch long, marker cylinder, rod end, used with 1345980C1 cylinder

2шт.

7

REF

INSTRUCTION

CYLINDER ASSEMBLY - row marker, see pages 8-57 and 8-59 for correct cylinder

2шт.

8

1279638C1

PIVOT PIN,25.4mm OD x 237mm L

PIN - mounting, marker, Serial Range: arm-bracket

2шт.

9

591715R1

WASHER

- flat, special, pin mounting

6шт.

10

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

8шт.

11

471323R1

LINCH PIN

PIN - lock, special, arm mounting, Serial Range: pin-bracket

2шт.

12

1279737C92

ARM

ASSEMBLY - row marker, at frame, left-hand, not shown

1шт.

13

1254154C1

DECAL,Warning Keep Away Markers Actuate

- Warning, keep away

1шт.

14

1279738C92

ARM

ASSEMBLY - row marker, at frame, right-hand

1шт.

15

1254154C1

DECAL,Warning Keep Away Markers Actuate

- Warning, keep away

1шт.

16

66584D

FITTING

- grease, special, no ball check

2шт.

17

1277583C1

COIL SPRING

SPRING - marker arm

2шт.

18

97488C1

HEADED PIN

PIN - transport, marker arm

2шт.

19

A33497

LINCH PIN,4.76mm OD Pin

PIN - Klick type, transport pin

2шт.

20

1279706C2

TUBE

ARM - marker, center section

2шт.

21

1960316C1

SHEAR BOLT BUSHING

BUSHING - marker arm

1шт.

22

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

23

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

24

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange lock, 5/16 inch - 18 NC

2шт.

26

1279725C1

STOP

- rubber, marker arm, if used

2шт.

26a

1976546C1

BAR

PLATE - backup, stop, if used

2шт.

27

1279835C1

SUPPORT

BRACKET - stop mounting, used with rubber stop, item 26

2шт.

27a

1279835C2

CHANNEL

BRACKET - marker stop, does not use rubber stop, item 26

2шт.

28

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

29

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

If used Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

30

619856R1

WASHER

- flat, special, if used

4шт.

31

9411655

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4-8шт.

32

125789C1

BAR

RETAINER - adjustment, actuator chain

2шт.

33

546587R1

SPACER

- bolt

2шт.

34

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

34a

1978603C1

BRACKET

- stop, marker arm

2шт.

35

25710R1

WASHER

- flat, 1/2 inch

2шт.

36

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex, lock, 1/2 inch - 13 NC

2шт.

37

22090R1

HEADED PIN

PIN - retainer, actuator chain

2шт.

38

486830R1

COTTER PIN

PIN - hair, internal type, 3/16 inch x 2-29/32 inch

2шт.

39

1279713C1

CHAIN (AG)

CHAIN - actuator, row marker, 110 inch (2794 mm) long, see page 9-73 for connection to chain guide

2шт.

40

90817C1

GUIDE

- actuator chain

2шт.

41

90923C1

PLATE

STRAP - chain guide

2шт.

42

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

43

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, flange lock, 3/8 inch - 16 NC

4шт.
