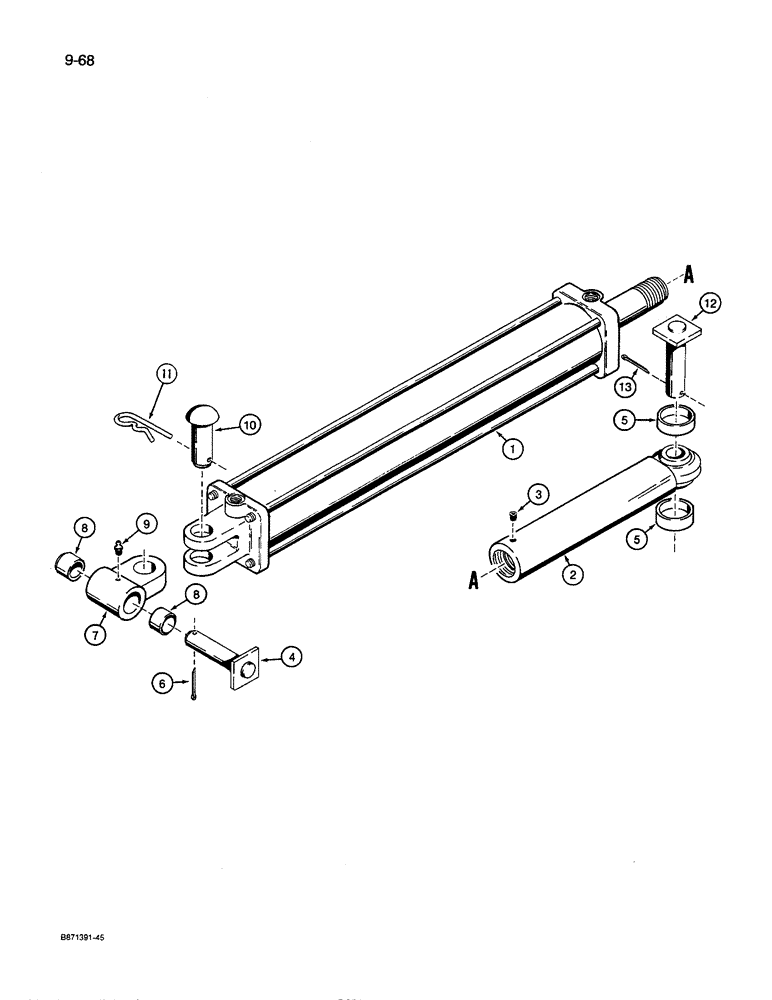

Запчасти Case IH 8600 (9-068) - HITCH STABILIZER PARTS (09) - CHASSIS/ATTACHMENTS

1

92958C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - hitch stabilizer, parts list page 8-61

1шт.

2

97554C1

LINK

- adjustable, stabilizer cylinder

1шт.

3

191953

SCREW,Hdls Hex Skt, 3/8" - 16 x 5/16", Cup Pt

- set, hex socket head, 3/8 inch - 16 NC x 5/16 inch

1шт.

4

1336391C1

PIN ASSY.,1 1/4" x 109mm

PIN - mounting, link to hitch frame

1шт.

5

96390C1

SPACER

-, Serial Range: link-frame

2шт.

6

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

7

96383C1

ANCHOR

HINGE ASSEMBLY - stabilizer cylinder to hopper frame

1шт.

8

96223C1

BUSHING

- hinge

2шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

10

145282C1

CLEVIS PIN

PIN - mounting, Serial Range: hinge-cylinder

1шт.

11

486830R1

COTTER PIN

PIN - hair, internal type, 3/16 inch x 2-29/32 inch

1шт.

12

1336391C1

PIN ASSY.,1 1/4" x 109mm

PIN - mounting, hinge to hopper frame

1шт.

13

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.
