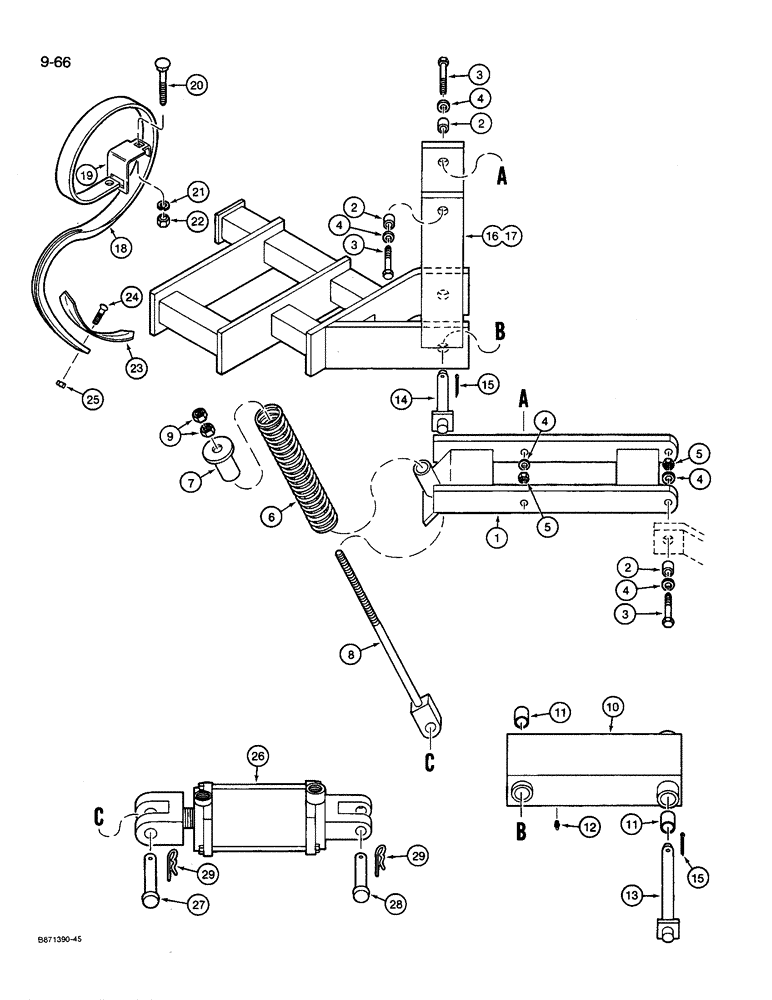

Запчасти Case IH 8600 (9-066) - TRACK ERASER PARTS (09) - CHASSIS/ATTACHMENTS

1

1336369C1

LINK

ARM - upper, track eraser

2шт.

2

1336373C1

BUSHING

SPACER - upper arm mounting bolt

8шт.

3

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

8шт.

4

25711R1

WASHER

- flat, special, hardened

16шт.

5

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

8шт.

6

1336396C1

SPRING

- trip, track eraser

2шт.

7

1336789C1

BAR ASSY.

RETAINER - spring

2шт.

8

1336792C1

BOLT (MACHINE)

EYEBOLT - spring adjustment

2шт.

9

129-108

NUT,3/4"-10, G5

4шт.

10

1336374C1

LINK ASSY.

ARM - lower, track eraser

2шт.

11

1336397C1

BUSHING

- pivot, lower arm

8шт.

12

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 inch NPT

4шт.

13

1336402C1

PIN ASSY.

PIN - mounting, lower arm to hopper frame

2шт.

14

1336405C1

PIN ASSY.

PIN - mounting, lower arm to tine frame

2шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

16

1336378C1

FRAME ASSY

FRAME - tine mounting, left-hand side

1шт.

17

1336379C1

FRAME ASSY

FRAME - tine mounting, right-hand side

1шт.

18

842165C1

TINE

- track eraser

6шт.

19

1337959C1

CLAMP

- mounting, Serial Range: tine-frame

6шт.

20

26877R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/2", Gr 5

BOLT - carriage, 1/2 inch - 13 NC x 3-1/2 inch

6шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

23

811191C1

POINT

- chisel, track eraser

6шт.

24

138544C1

PLOW BOLT,3/8" - 16 x 1.58" Cl 5B

BOLT - special, chisel point

6шт.

25

9411655

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch - 16 NC

6шт.

26

1272145C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - track eraser, parts list page 8-55

2шт.

27

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - mounting, cylinder, 3-1/4 inch (83 mm) long

2шт.

28

64560C1

HEADED PIN

PIN - mounting, cylinder, 3 inch (75 mm) long

2шт.

29

486830R1

COTTER PIN

PIN - hair, internal type, 3/16 inch x 2-29/32 inch

4шт.
