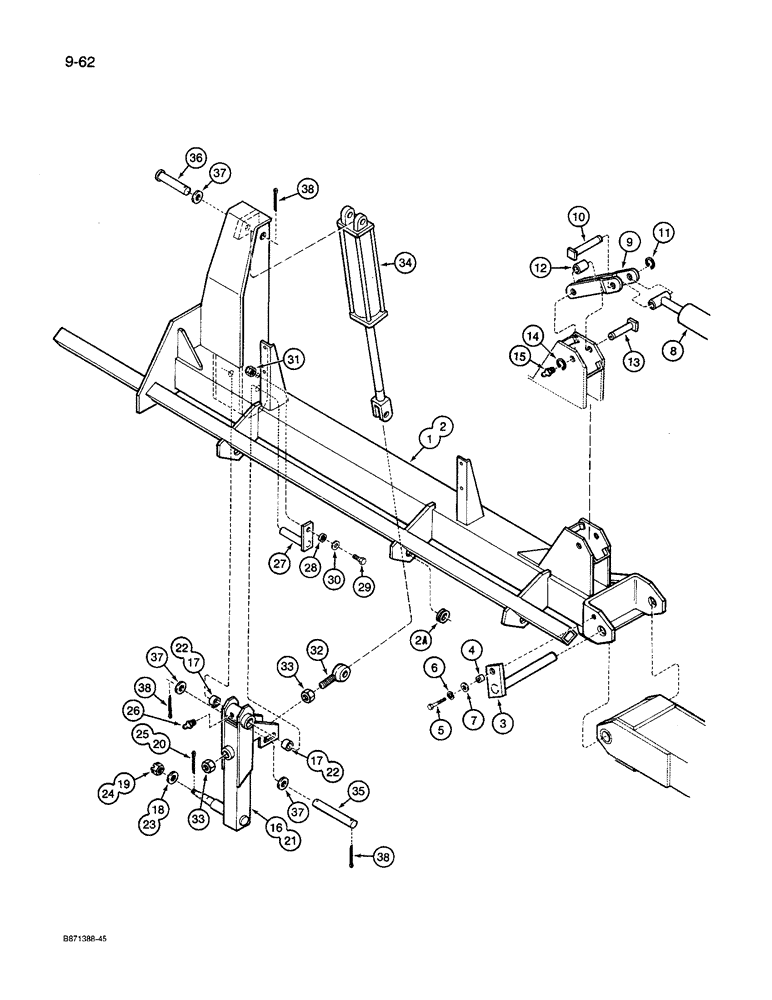

Запчасти Case IH 8600 (9-062) - TOOLBAR WING FRAMES (09) - CHASSIS/ATTACHMENTS

1

841211C1

FRAME ASSY

FRAME - wing toolbar, left-hand side

1шт.

2

841212C1

FRAME ASSY

FRAME - wing toolbar, right-hand side

1шт.

2a

842326C1

GROMMET

- hose, at frame

6шт.

3

841298C1

PIN ASSY.

PIN - pivot, wing frames to center frame

2шт.

4

842463C1

SPACER

- pivot pin

2шт.

5

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

22191R1

WASHER

- flat, special

2шт.

8

REF

INSTRUCTION

CYLINDER ASSEMBLY - wing frame fold, see pages 8-51 and 8-53 for correct cylinder

2шт.

9

841292C1

SUPPORT

LINK - cylinder to wing frame

2шт.

10

841295C1

PIN ASSY.

PIN - link to wing fold cylinder, rod end

2шт.

11

827695C1

CIRCLIP

RING - retaining, pin

2шт.

12

88975C1

BUSHING

ROLLER - latch

2шт.

13

88972C1

PIN ASSY.

PIN - latch roller

2шт.

14

827695C1

CIRCLIP

RING - retaining, pin

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, special short, 1/8 inch NPT

2шт.

16

842109C1

CENTER AXLE

AXLE ASSEMBLY - wing frame, left-hand side

1шт.

17

842662C1

BUSHING,44.5mm ID x 51.36mm OD x 50mm L

- axle pivot

2шт.

18

467750R1

WASHER

- flat, special

1шт.

19

427640

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch - 16 NF

1шт.

20

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

21

842110C1

CENTER AXLE

AXLE ASSEMBLY - wing frame, right-hand side

1шт.

22

842662C1

BUSHING,44.5mm ID x 51.36mm OD x 50mm L

- axle pivot

2шт.

23

467750R1

WASHER

- flat, special

1шт.

24

427640

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch - 16 NF

1шт.

25

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

26

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, straight, 1/4 inch NPT

2шт.

27

842426C1

PIN ASSY.

PIN - pivot, Serial Range: axle-frame

2шт.

28

842463C1

SPACER

- pivot pin

2шт.

29

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

30

20601R1

WASHER

- flat, 1/2 inch ID x 0.105 inch (2.67 mm) thick

2шт.

31

9413967

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch - 13 NC

2шт.

32

842655C1

EYEBOLT

-, Serial Range: cylinder-axle

2шт.

33

25984R1

NUT,1 1/4"-7, G8

- hex, jam, 1-1/4 inch - 7 NC

4шт.

34

1267178C2

CYLINDER

ASSEMBLY - depth control, parts list page 8-47

2шт.

35

842740C1

PIN

- mounting, depth control cylinder, rod end

2шт.

36

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - mounting, depth control cylinder, base end

2шт.

37

614451R1

WASHER

- flat, special

6шт.

38

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

6шт.
