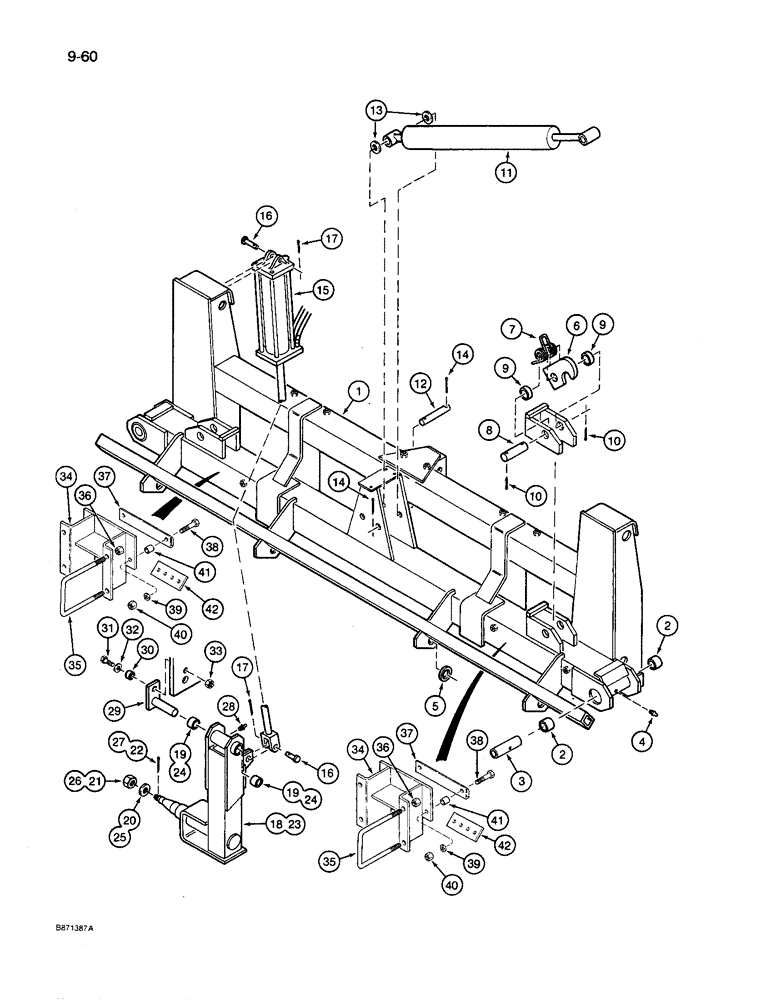

Запчасти Case IH 8600 (9-060) - TOOLBAR MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

842412C1

FRAME

- main toolbar

1шт.

2

828891C1

BUSHING

- pivot, wing to main frame

4шт.

3

1337539C1

SLEEVE

SPACER - bushing

2шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPTF 1/8"-27 x .66 lg

2шт.

5

842326C1

GROMMET

- hose, at frame

4шт.

6

88983C1

LATCH

- transport lock, wing frame

2шт.

7

88974C1

SPRING

- latch

2шт.

8

842114C1

PIN

- mounting, latch

2шт.

9

842636C1

SPACER

- latch pin

4шт.

10

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - wing frame fold, see pages 8-51 and 8-53 for correct cylinder

2шт.

12

841301C1

PIN

- mounting, wing fold cylinder, base end

2шт.

13

20885R1

WASHER

- flat, special

4шт.

14

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

4шт.

15

1267177C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - depth control, parts list page 8-49

2шт.

16

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - mounting, depth control cylinder

4шт.

17

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

4шт.

18

842107C1

AXLE

ASSEMBLY - main frame, left-hand side

1шт.

19

842662C1

BUSHING,44.5mm ID x 51.36mm OD x 50mm L

- axle pivot

2шт.

20

21214R1

WASHER

- flat, special

1шт.

21

25893R1

SLOTTED NUT,1 1/8"-12, G5

NUT - hex slotted, 1-1/8 inch - 12 NF

1шт.

22

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

1шт.

23

842108C1

CENTER AXLE

AXLE ASSEMBLY - main frame, right-hand side

1шт.

24

842662C1

BUSHING,44.5mm ID x 51.36mm OD x 50mm L

- axle pivot

2шт.

25

21214R1

WASHER

- flat, special

1шт.

26

25893R1

SLOTTED NUT,1 1/8"-12, G5

NUT - hex slotted, 1-1/8 inch - 12 NF

1шт.

27

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

1шт.

28

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, straight, 1/4 inch NPT

2шт.

29

842426C1

PIN ASSY.

PIN - pivot, axle to main frame

2шт.

30

842463C1

SPACER

- pivot pin

2шт.

31

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

32

20601R1

WASHER

- flat, 1/2 inch ID x 0.105 inch (2.67 mm) thick

2шт.

33

9413967

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch - 13 NC

2шт.

34

1279558C2

BRACKET

- weight mounting

2шт.

See Rac 8-96650 installation instructions for weight bracket and related components installation information.

1шт.

35

1986364C1

U-BOLT,5/8" - 11 x 7.28", Steel

U Bolt -, Serial Range: bracket-frame

4шт.

See Rac 8-96650 installation instructions for weight bracket and related components installation information.

1шт.

36

425-1010

NUT,5/8"-11, G5

8шт.

See Rac 8-96650 installation instructions for weight bracket and related components installation information.

1шт.

37

1279561C1

ANGLE

- weight retaining, used when 3 International style 100 lb (45.4 kg) tractor front end weights are installed

2шт.

See Rac 8-96650 installation instructions for weight bracket and related components installation information.

1шт.

38

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

4шт.

See Rac 8-96650 installation instructions for weight bracket and related components installation information.

1шт.

39

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

See Rac 8-96650 installation instructions for weight bracket and related components installation information.

1шт.

40

425-1010

NUT,5/8"-11, G5

4шт.

See Rac 8-96650 installation instructions for weight bracket and related components installation information.

1шт.

41

529380R1

SPACER

- weight retaining angle

4шт.

See Rac 8-96650 installation instructions for weight bracket and related components installation information.

1шт.

42

96107C1

BAR

- weight retainer, used when 4 Case style 75 lb (34 kg) tractor front end weights are installed

2шт.

See Rac 8-96650 installation instructions for weight bracket and related components installation information.

1шт.
