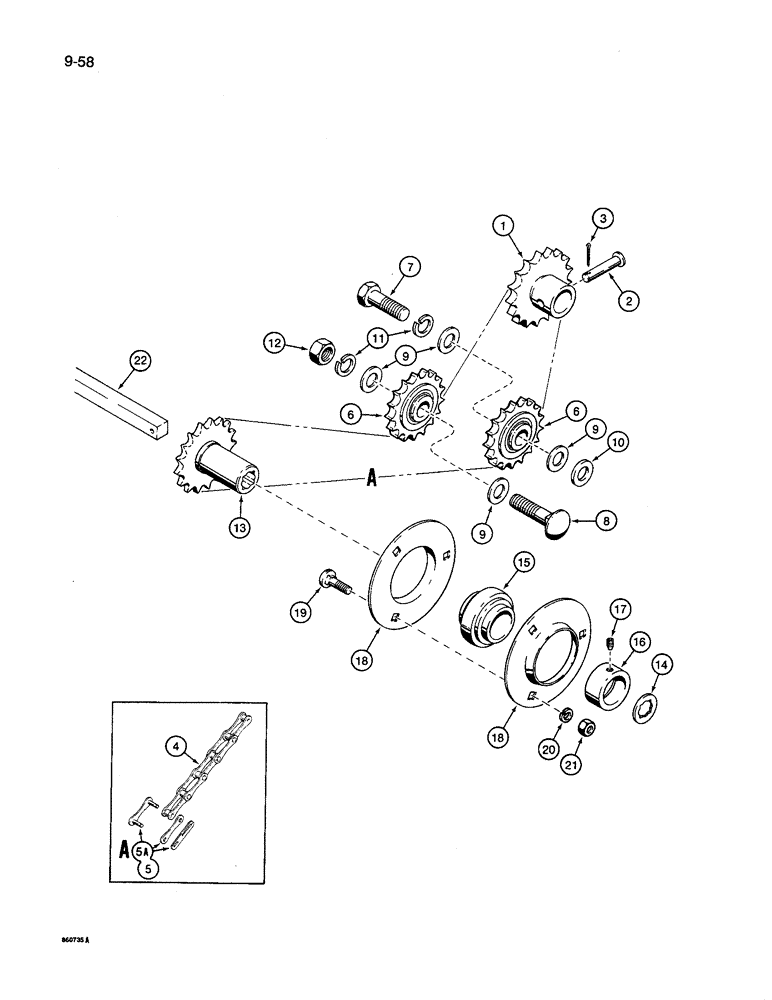

Запчасти Case IH 8600 (9-058) - FERTILIZER DRIVE PARTS, JACKSHAFT TO FERTILIZER DRIVE SHAFT (09) - CHASSIS/ATTACHMENTS

1

88882C1

SPROCKET ASSY.

SPROCKET - fertilizer drive, 18 tooth

1шт.

2

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, , Sprocket to jackshaft 3/8" x 1 3/4"

1шт.

3

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

4

REF

INSTRUCTION

CHAIN - drive, fertilizer shaft, 52 links, cut from 569088R91 roll

1шт.

5

457113R91

CHAIN LINK

LINK - connecting, master

1шт.

5a

457114R91

CHAIN LINK

LINK - offset, if used, not shown

2шт.

6

841335C1

SPROCKET ASSY.

SPROCKET - chain, idler and tightener, 17 tooth

2шт.

7

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

1шт.

8

441452R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT - carriage head, 5/8 inch - 11 NC x 2 inch

1шт.

9

21782R1

WASHER

- flat, 5/8 inch ID x 0.054 inch (1.37 mm) thick

1шт.

10

464623R1

WASHER

- flat, 5/8 inch ID x 0.105 inch (2.67 mm) thick

1шт.

11

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

129-107

NUT,5/8"-11, G5

1шт.

13

88876C1

SPROCKET ASSY.

SPROCKET - driven, fertilizer shaft, 19 tooth

1шт.

14

21867R1

SQ HOLE WASHER,19/32" x 1" x .060", Sq Hole

- special, fits square shaft

1шт.

15

88917C91

BALL BEARING,62 mm OD

- fertilizer drive shaft

1шт.

16

557995R11

COLLAR

ASSEMBLY - bearing lock

1шт.

17

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW - set, hex socket head, 5/16 inch - 18 NC x 5/16 inch

1шт.

18

662649R1

RETAINER

FLANGE - bearing

2шт.

19

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - carriage head, 3/8 inch - 16 NC x 1 inch

3шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

22

841962C1

BAR

SHAFT - drive, fertilizer gear, see pages 9-41 and 9-43 for related parts

1шт.
