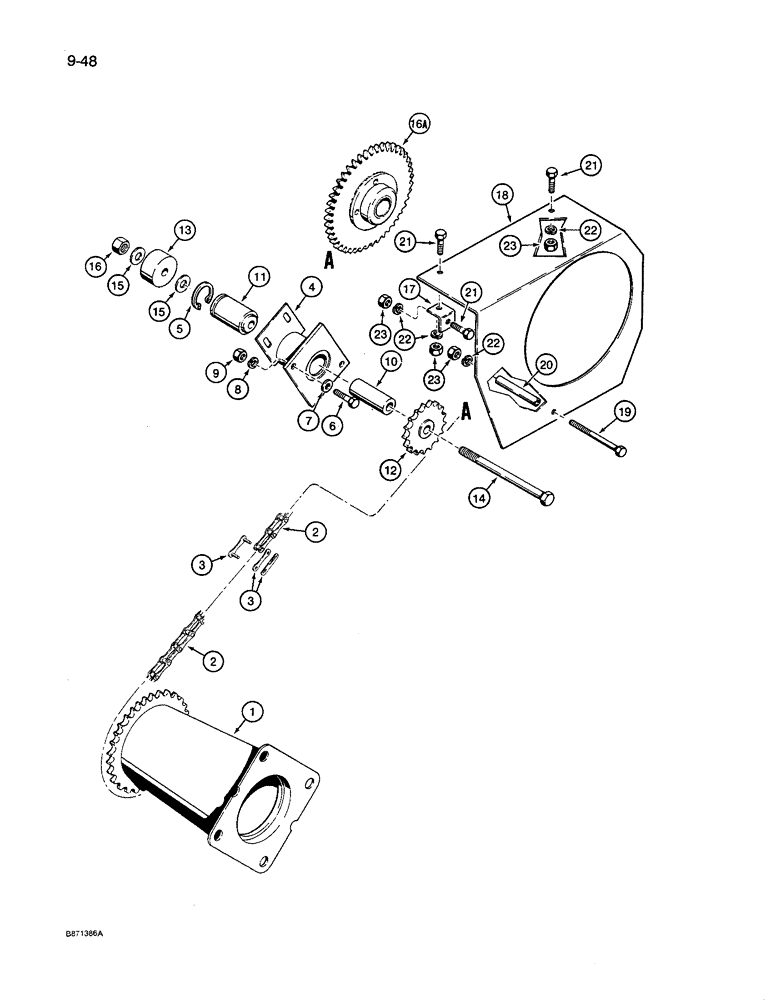

Запчасти Case IH 8600 (9-048) - MAIN DRIVE, DRIVE WHEEL SPROCKET AND CHAINS (09) - CHASSIS/ATTACHMENTS

1

88965C1

SPROCKET ASSY.

SPROCKET - main drive chain, at cart frame wheel

1шт.

2

REF

INSTRUCTION

CHAIN - main drive, 83 links, cut from 569088R91 bulk roll

1шт.

3

457113R91

CHAIN LINK

LINK - master, chain

1шт.

4

1336800C1

BRACKET

- mounting, idler sprocket and area sensor

1шт.

5

160094R1

SNAP RING,1.50", Int, #150

RING, SNAP, 1.50", Int, #150

1шт.

6

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

7

120394

WASHER,3/8", SAE

WASHER - flat, 3/8 inch

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

573713R1

SPACER,3/4" Tube x 11/16"

- tube, 3/4 inch

1шт.

11

140393C91

BALL BEARING,0.7465" ID x 1.5" OD x 2.5"

- ball, idler sprocket

1шт.

12

1337947C1

SPROCKET ASSY.

SPROCKET - idler and tightener, main drive chain

1шт.

13

1337949C1

SPACER

- area sensor

1шт.

14

113-448

BOLT,Hex, 1/2" - 13 x 7", Gr 5

1шт.

15

25710R1

WASHER

- flat, hardened, 1/2 inch ID x 0.134 inch (3.40 mm) thick

2шт.

16

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

16a

841959C1

SPROCKET ASSY.

SPROCKET - clutch, main drive, 44 tooth, see page 9-45 for clutch components

1шт.

17

841589C1

ANGLE

BRACKET - mounting, drive shield

1шт.

18

841588C1

SHIELD

GUARD - main drive chain

1шт.

19

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

20

25410R1

SPACER,1/4" Pipe x 2 1/2"

- guard mounting bolt

1шт.

21

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex head, 5/16 inch - 18 NC x 3/4 inch

3шт.

22

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

23

9635082

NUT,5/16" - 18, Gr 5

4шт.
