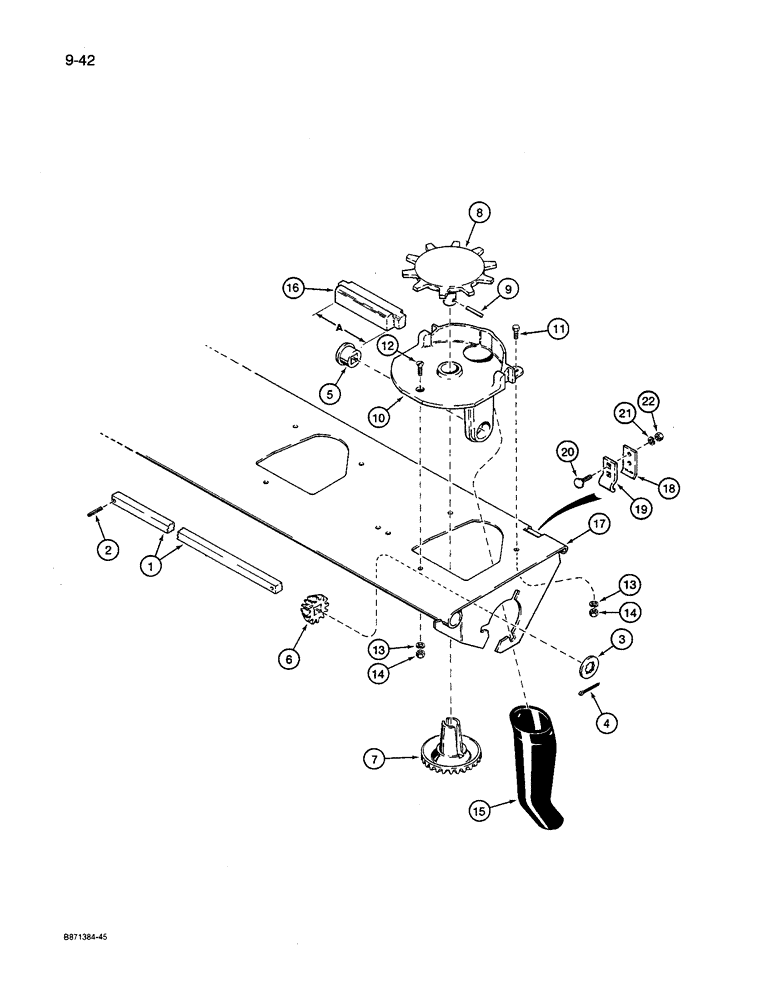

Запчасти Case IH 8600 (9-042) - FERTILIZER FEED PARTS, UNITS WITH 9 INCH ROW SPACING (09) - CHASSIS/ATTACHMENTS

1

841962C1

BAR

SHAFT - fertilizer feed

1шт.

2

17054R1

LOCK PIN,3/16" x 7/8", Slotted

Pin, 3/16" x 7/8", Slotted

1шт.

3

M76123

WASHER,19/32" x 1 1/4" x .105", Sq Hole

- fits square shaft, 0.090 inch (2.29 mm) thick

1шт.

4

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

5

603462R1

TRUNNION

BUSHING - feed, Serial Range: shaft-plate

5шт.

6

603463R2

GEAR

- drive, bevel, at shaft

5шт.

7

F282C

GEAR

- driven, bevel, star wheel

5шт.

8

841653C1

WHEEL

- star, fertilizer feed

5шт.

9

N62414

PIN,3.96mm OD x 28mm L

- special, star wheel to driven gear

5шт.

10

841651C1

LARGE PLATE

PLATE - support, star wheel

5шт.

11

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex head, 1/4 inch - 20 NC x 5/8 inch

10шт.

12

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8"

5шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

15шт.

14

120375

NUT,Hex, 1/4" - 20, Gr 5

15шт.

15

842254C1

PLASTIC-RUBBER TUBE

TUBE - rubber, fertilizer delivery

5шт.

16

841690C1

SPACER

- support plate, "A" dimension 4-3/4 inch (121 mm) long

4шт.

17

88896C1

BOTTOM

- drop, fertilizer

1шт.

18

604403R2

CLAMP

- hinge, top

3шт.

19

604404R2

CLAMP

- hinge, bottom

3шт.

20

598796R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT - carriage head, 1/4 inch - 20 NC x 1 inch

6шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

22

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.
