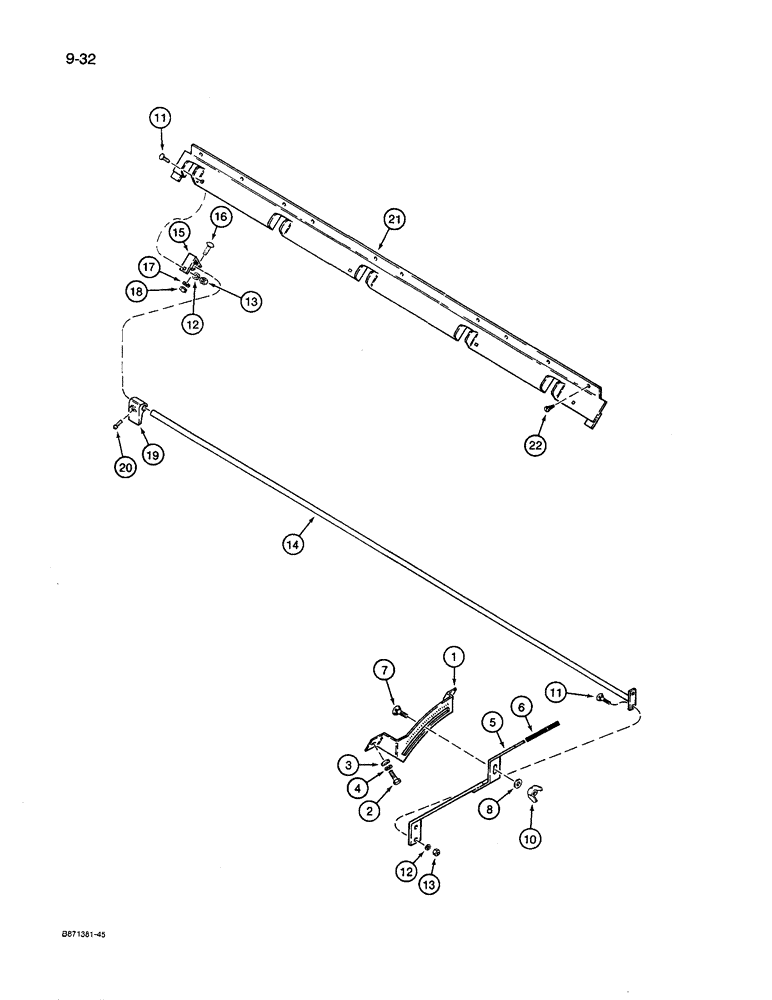

Запчасти Case IH 8600 (9-032) - FERTILIZER FEED CONTROLS, UNITS WITH 9 INCH ROW SPACING (09) - CHASSIS/ATTACHMENTS

1

842012C1

INDICATOR

- feed, fertilizer

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

619856R1

WASHER

- flat, 3/8 inch

2шт.

4

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

843087C1

LEVER ASSY.

LEVER - control, fertilizer feed

1шт.

6

842315C1

GRIP

- rubber, lever

1шт.

7

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - carriage head, 3/8 inch - 16 NC x 1 inch

1шт.

8

120394

WASHER,3/8", SAE

WASHER - flat, 3/8 inch

1шт.

10

129-410

WING NUT,3/8"-16

NUT - wing, 3/8 inch NC

1шт.

11

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - carriage head, 1/4 inch - 20 NC x 3/4 inch

5шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

13

120375

NUT,Hex, 1/4" - 20, Gr 5

5шт.

14

842096C1

ROD ASSY.

ROD - control, fertilizer gate

1шт.

15

603455R1

LEVER GUIDE

SUPPORT - control rod

3шт.

16

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage head, 3/8 inch - 16 NC x 3/4 inch

3шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

19

842464C1

DOOR

GATE - control, fertilizer feed

5шт.

20

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW - set, square head, 5/16 NC x 3/4 inch

5шт.

21

841672C1

PANEL

- back, fertilizer feed control

1шт.

22

850677C1

SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

- hex, self-tapping, 5/16 NC x 1/2 inch

10шт.
