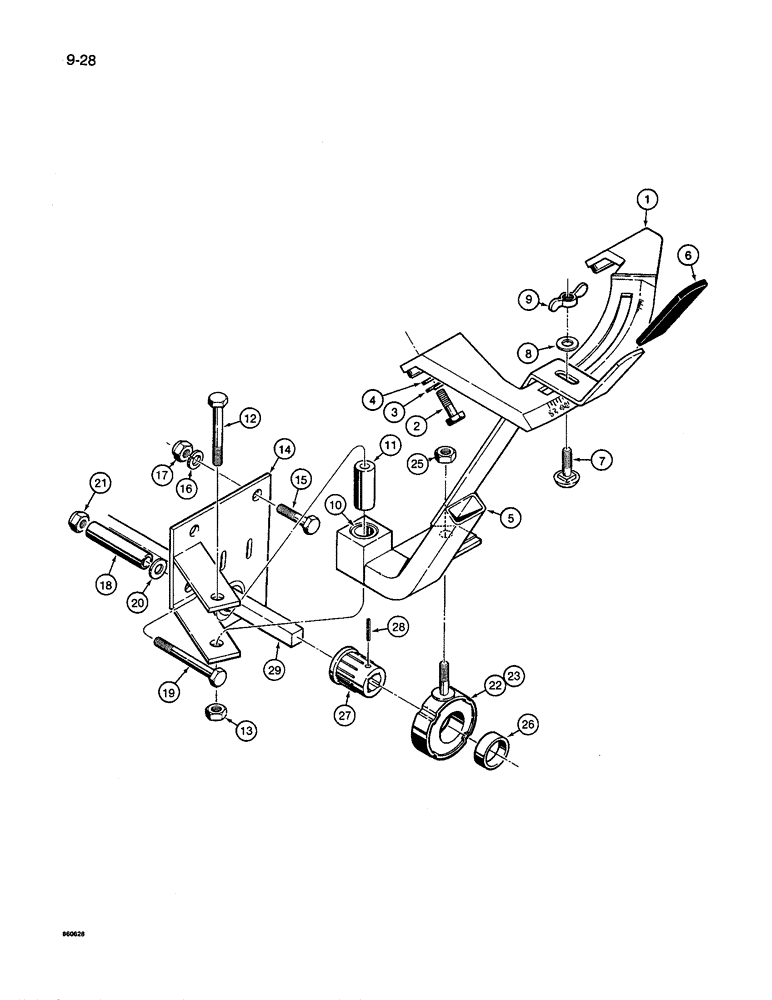

Запчасти Case IH 8600 (9-028) - GRAIN FEED CONTROLS (09) - CHASSIS/ATTACHMENTS

1

842176C1

INDICATOR

- grain feed control

1шт.

2

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8 inch- 16 NC x 1 inch

2шт.

3

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

120394

WASHER,3/8", SAE

WASHER -flat, 3/8 inch

2шт.

5

843090C1

LEVER

- feed control

1шт.

6

842315C1

GRIP

- control lever

1шт.

7

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - carriage head, 3/8 inch - 16 NC x 1 inch

1шт.

8

120394

WASHER,3/8", SAE

WASHER - flat, 3/8 inch

1шт.

9

129-410

WING NUT,3/8"-16

NUT - wing, 3/8 inch NC

1шт.

10

1333849C1

BUSHING

- pivot, control lever

1шт.

11

1333866C1

SPACER

- control, Serial Range: lever-bracket

1шт.

12

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

13

9413967

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch - 13 NC

1шт.

14

842235C1

SUPPORT

BRACKET - mounting, control lever

1шт.

15

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8 inch - 16NC x 1 inch

2шт.

16

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

120377

NUT,3/8" - 16, Gr 5

2шт.

18

80438R1

SPACER,3/8" Pipe x 3"

- bracket to frame

1шт.

19

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

20

619856R1

WASHER

- flat, 3/8 inch

1шт.

21

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

1279109C91

BEARING ASSY

ASSEMBLY - shift rod

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - bearing

1шт.

23

616154R92

BEARING, ROLLER, CYL,16 mm

BEARING - shift rod

1шт.

25

9411655

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch - 16 NC

1шт.

26

609389R1

SPACER

- shift rod bearing

1шт.

27

1279145C1

SPACER

BUSHING - shift, Serial Range: rod-bearing

1шт.

28

19442R1

PIN,3/16" x 1 1/2", Coiled

Bushing to shift rod 3/16" x 1 1/2", Coiled

1шт.

29

REF

INSTRUCTION

SHAFT - grain feed control, see pages 9-37 and 9-39 for shaft used with different row spacing

1шт.
