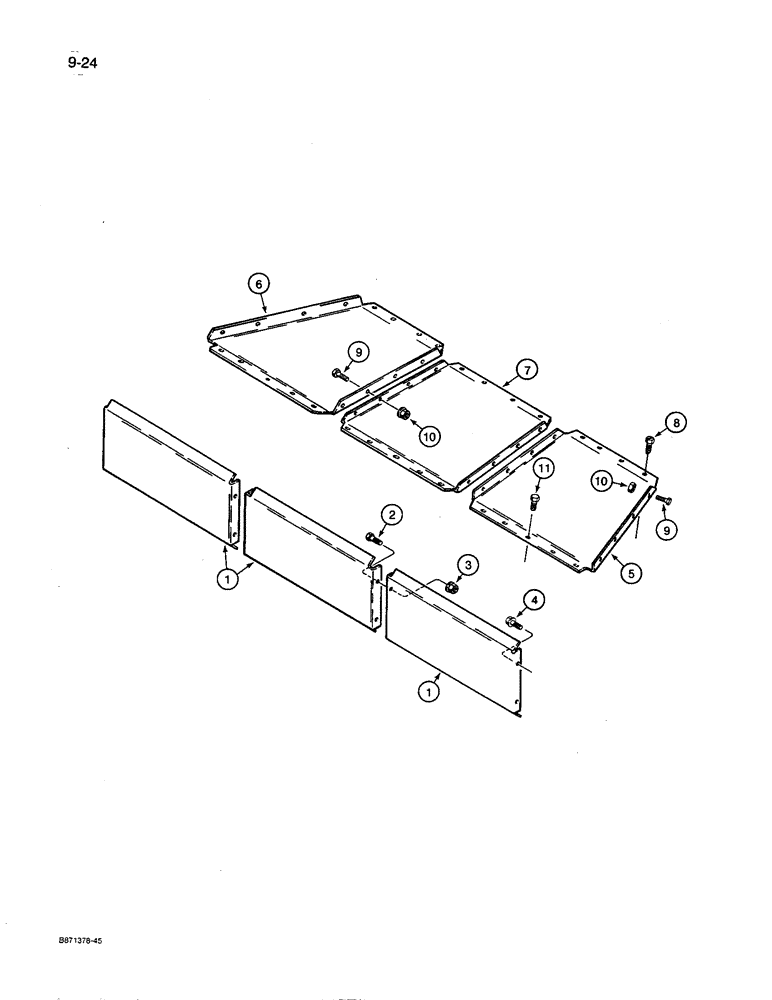

Запчасти Case IH 8600 (9-024) - HOPPER PANELS, ALL GRAIN (09) - CHASSIS/ATTACHMENTS

1

841244C1

PANEL

- hopper, upper, if used

3шт.

2

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, if used

4шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, flange lock, 5/16 inch NC, if used

4шт.

4

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex, flange lock, 5/16 NC x 1/2 inch, if used

4шт.

5

841790C1

PANEL ASSY.

PANEL - hopper, lower, right-hand

1шт.

6

841789C1

PANEL

- hopper, lower, left-hand

1шт.

7

841788C1

PANEL ASSY.

PANEL - hopper, lower, center

1шт.

8

850677C1

SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

- hex, self-tapping, 5/16 NC X 1/2 inch

12шт.

9

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

16шт.

10

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, flange lock, 5/16 inch NC

16шт.

11

850679C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 3/4"

SCREW - hex, self-tapping, 5/16 NC x 3/4 inch

15шт.
