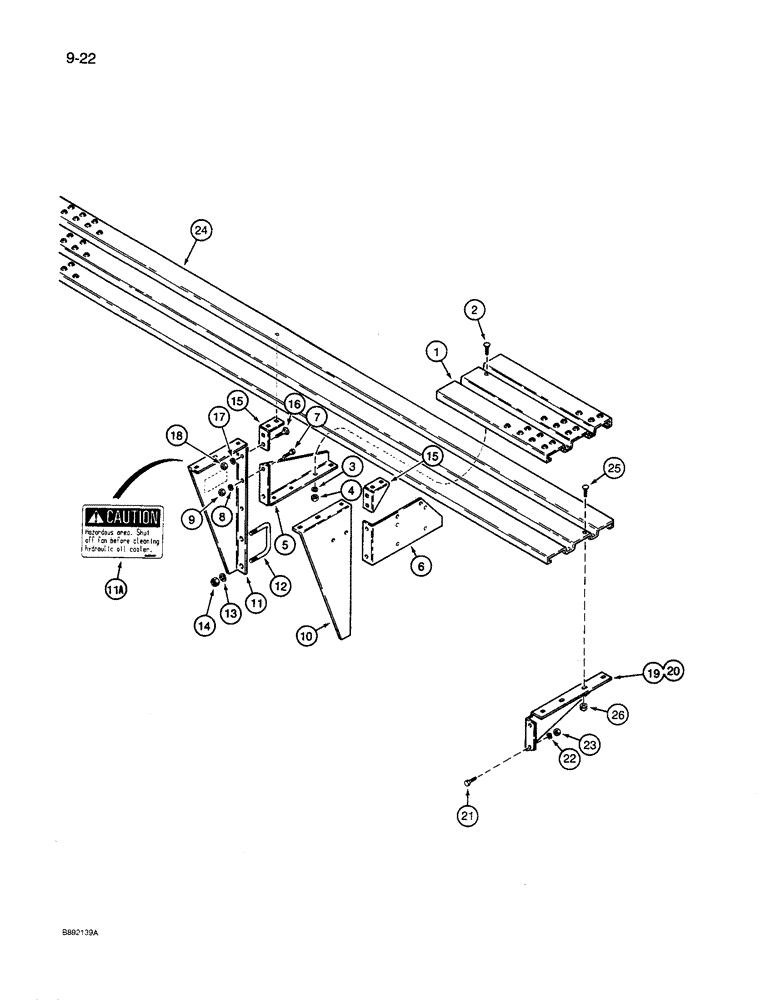

Запчасти Case IH 8600 (9-022) - HOPPER STEPS AND PLATFORM, UNITS WITHOUT SIDE GUARD RAILS (09) - CHASSIS/ATTACHMENTS

1

842313C1

ASSEMBLY

STEP - front, platform

1шт.

2

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - carriage head, 5/16 inch - 18 NC x 3/4 inch

8шт.

3

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

9635082

NUT,5/16" - 18, Gr 5

8шт.

5

841444C1

SUPPORT

- front step, left-hand

1шт.

6

842976C2

SUPPORT

- front step and hydraulic tank, right-hand

1шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

10

842974C1

SUPPORT

- front platform, right-hand inner

1шт.

11

1337047C1

SUPPORT

- front platform, left-hand inner, includes decal

1шт.

11a

842529C1

PRODUCT GRAPHIC

DECAL - Caution, cooler fan hazard

1шт.

12

811627C1

BOLT

- special, front support

2шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

129-107

NUT,5/8"-11, G5

4шт.

15

842307C1

BRACKET

- front support

2шт.

16

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - carriage head, 5/16 inch - 18 NC x 3/4 inch

4шт.

17

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

9635082

NUT,5/16" - 18, Gr 5

4шт.

19

841395C1

SUPPORT

- front platform, right-hand outer

1шт.

20

841394C1

SUPPORT

- front platform, left-hand outer

1шт.

21

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

24

1980922C1

ASSEMBLY

PLATFORM - front

1шт.

25

111-229

CARRIAGE BOLT,Short NK, 5/16"-18 x 1/2", G2

BOLT - carriage head, 5/16 inch - 18 NC x 1/2 inch

16шт.

26

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, flange lock, 5/16 inch - 18 NC

16шт.
