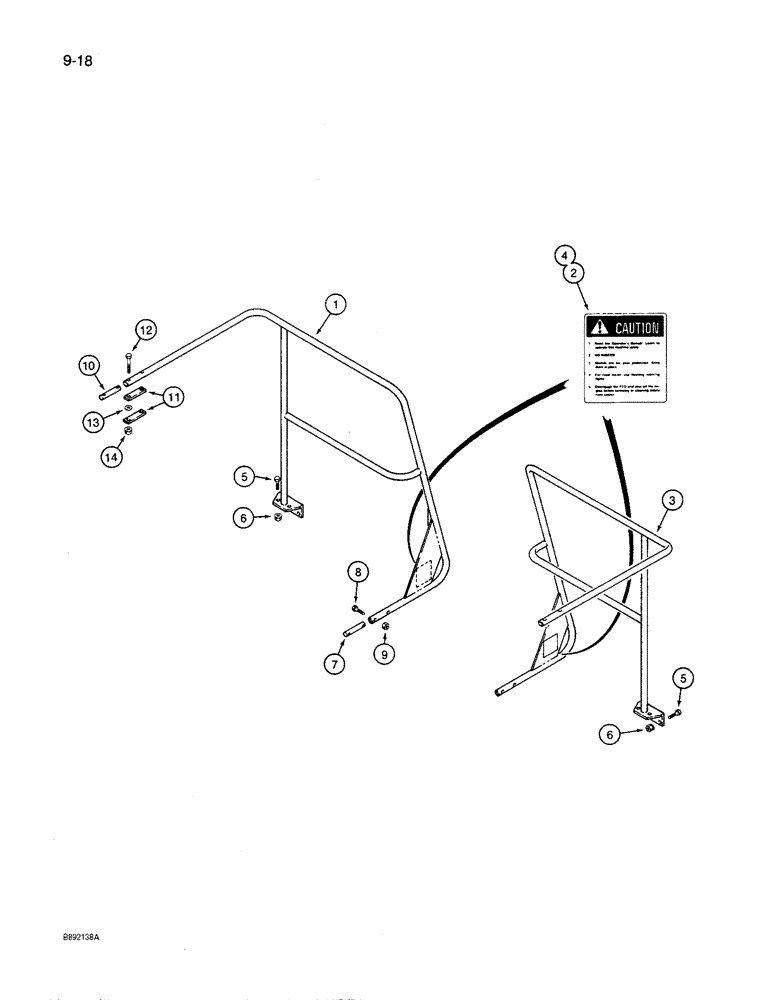

Запчасти Case IH 8600 (9-018) - HOPPER GUARD RAILS, UNITS WITHOUT SIDE GUARD RAILS (09) - CHASSIS/ATTACHMENTS

1980912C1

RAIL

ASSEMBLY - guard, front, left-hand

1шт.

1

NSS

NOT SOLD SEPARAT

RAIL - guard, front, left-hand

1шт.

2

88934C1

PRODUCT GRAPHIC

DECAL - Caution, general instruction

1шт.

1980915C1

RAIL

ASSEMBLY - guard, front, right-hand

1шт.

3

NSS

NOT SOLD SEPARAT

RAIL - guard, front, right-hand

1шт.

4

88934C1

PRODUCT GRAPHIC

DECAL - Caution, general instruction

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex head, 3/8 inch - 16 NC x 3/4 inch

8шт.

6

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, flange lock, 3/8 inch - 16 NC

8шт.

7

1976547C1

ROD

PIN - end, guard rail

2шт.

8

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex head, 3/8 inch - 16 NC x 1-1/2 inch

4шт.

9

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, self-locking, 3/8 inch - 16 NC

4шт.

10

1976547C1

ROD

PIN - end, guard rail

2шт.

11

842767C1

BAR

- spacer, guard, Serial Range: rail-hopper

4шт.

12

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

4шт.

13

842798C1

SEALING WASHER

- special sealing, 3/8 inch

4шт.

14

120377

NUT,3/8" - 16, Gr 5

4шт.
