Запчасти Case IH 8600 (9-008) - SPINDLES, HUBS AND BEARINGS, USED WITH TOOL BAR WING FRAME WHEELS (09) - CHASSIS/ATTACHMENTS

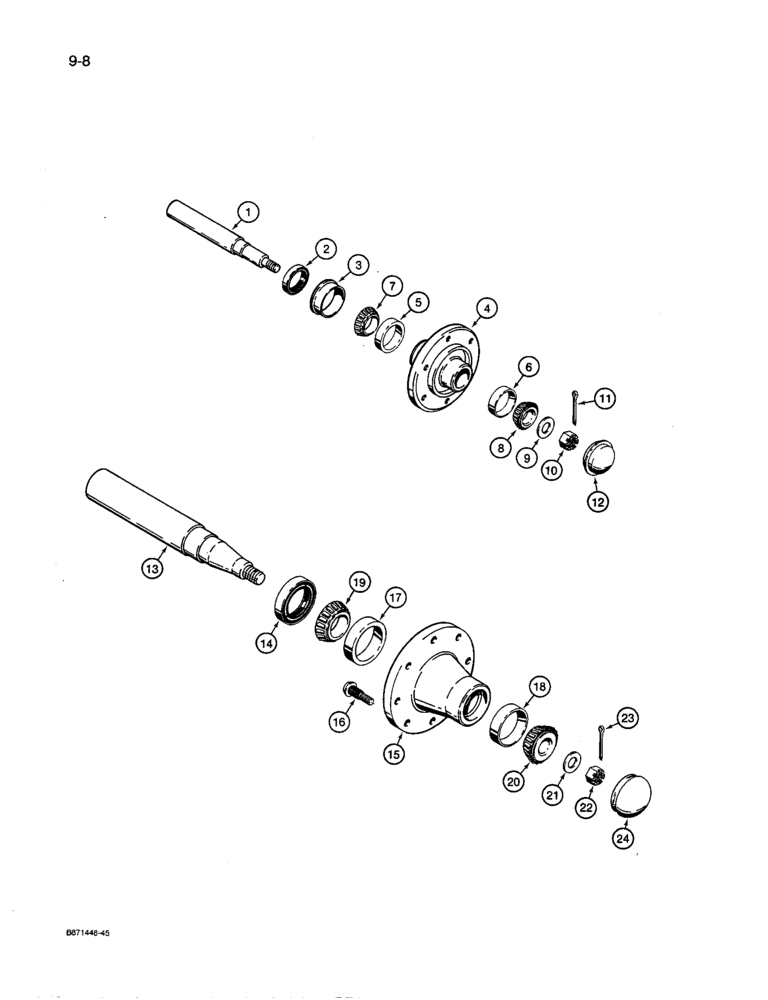

Схема запчастей Case IH 8600 - (9-008) - SPINDLES, HUBS AND BEARINGS, USED WITH TOOL BAR WING FRAME WHEELS (09) - CHASSIS/ATTACHMENTS
9
14
11
13
3
4
2
12
17
5
8
21
18
24
15
10
7
1
20
16
22
19
6
23

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

SPINDLE - wheel hub, component of wing frame axle assembly, see page 9-63

2шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- wheel hub

2шт.

3

472222R1

SLEEVE

- wear, oil seal

2шт.

4

810087C2

HUB

- wheel, 6 bolt

2шт.

5

651817R1

BEARING CUP

CUP - bearing, inner

2шт.

6

651814R1

BEARING CUP

CUP - bearing, outer

2шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - tapered roller, inner

2шт.

8

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING - tapered roller, outer

2шт.

8

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

9

467750R1

WASHER

- thrust, bearing, component of wing frame axle assembly, see page 9-63

2шт.

10

427640

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF, component of wing frame axle assembly, see page 9-63

2шт.

11

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), , Component of wing frame axle assembly, see page 9-63 5/32" x 1 1/2"

2шт.

12

B13280

HUB CAP

CAP - hub, spindle

2шт.

13

NSS

NOT SOLD SEPARAT

SPINDLE - wheel hub, component of main frame axle assembly, see page 9-61,USED WITH TOOL BAR

2шт.

14

820095C91

SEAL

- hub, USED WITH TOOL BAR MAIN FRAME WHEELS

2шт.

88970C1

HUB

ASSEMBLY - wheel, 8 bolt, USED WITH TOOL BAR MAIN FRAME WHEELS

2шт.

15

NSS

NOT SOLD SEPARAT

HUB - wheel, 8 bolt,USED WITH TOOL BAR MAIN FRAME

1шт.

16

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT - wheel stud, USED WITH TOOL BAR MAIN FRAME

8шт.

17

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - bearing, inner,USED WITH TOOL BAR MAIN FRAME WHEELS

2шт.

18

61801C1

BEARING CUP,63mm OD x 13.5mm W

CUP - bearing, outer, USED WITH TOOL BAR MAIN FRAME WHEELS

2шт.

19

625742C1

ROLLER BEARING,2.1654" ID x 3.5433" OD x 0.9055" W

BEARING - tapered roller, inner, USED WITH TOOL BAR MAIN FRAME WHEELS

2шт.

20

61802C91

ROLLER BEARING,38mm ID x 17mm Thk

BEARING - tapered roller, outer, USED WITH TOOL BAR MAIN FRAME WHEELS

2шт.

21

21214R1

WASHER

- thrust, bearing, component of main frame axle assembly, see page 9-61, USED WITH TOOL BAR WHEELS

2шт.

22

25893R1

SLOTTED NUT,1 1/8"-12, G5

NUT - hex, slotted, 1-1/8 inch NF, component of main frame axle assembly, see page 9-61,USED WITH TOOL BAR WHEELS

2шт.

23

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), , Component of main frame axle assembly, see page 9-61, used with tool bar wheels 3/16" x 2"

2шт.

24

378814R1

CAP

- hub, spindle, USED WITH TOOL BAR MAIN FRAME WHEELS

2шт.

Выбрано товаров: 26
