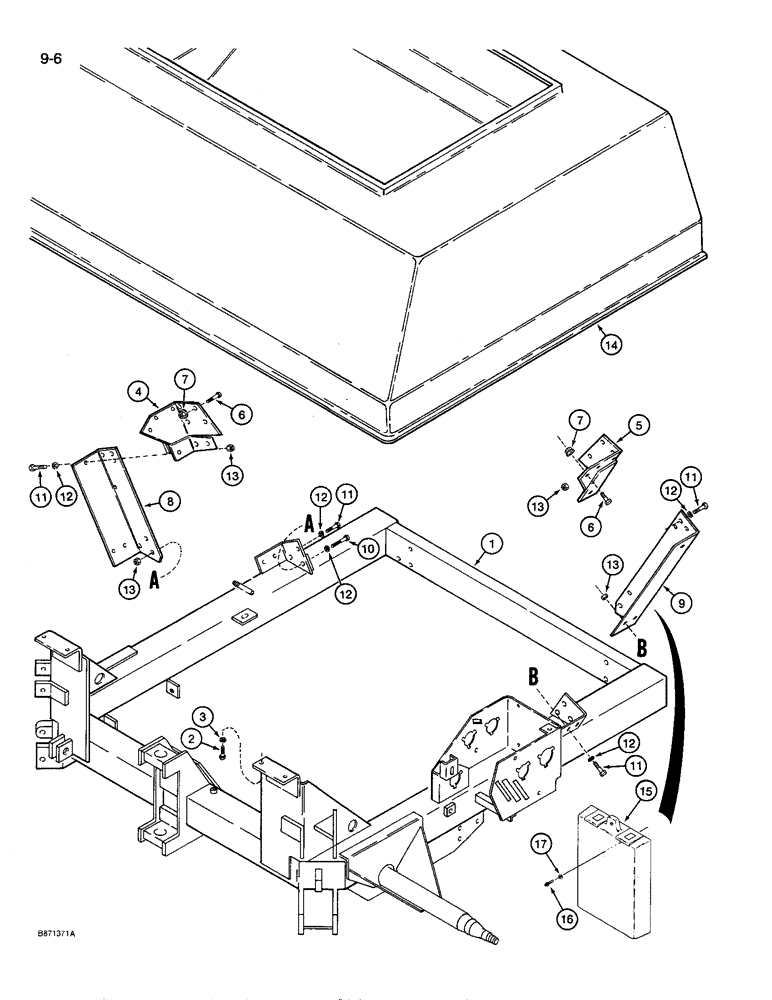

Запчасти Case IH 8600 (9-006) - HOPPER CARRIER FRAME AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

841426C1

FRAME ASSY

FRAME - hopper carrier

1шт.

2

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

3

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

841316C1

SUPPORT

- hopper, upper, left-hand side

1шт.

5

841317C1

SUPPORT ASSY.

SUPPORT - hopper, upper, right-hand side

1шт.

6

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

14шт.

7

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex head, flange lock, 1/2 inch - 13 NC

14шт.

8

841318C1

SUPPORT

- hopper, lower, left-hand side

1шт.

9

841319C1

SUPPORT

- hopper, lower, right-hand side

1шт.

10

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

14шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.

14

841220C2

HOPPER

- grain and fertilizer, see page 9-15 for hopper and related parts

1шт.

15

R46464

CASE

BOX - operators manual

1шт.

16

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

3шт.

17

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.
